A poorly installed Swing Check Valve can disrupt flow and damage downstream equipment. Even the right valve may fail when installed incorrectly. Its hinged disc opens under forward pressure and closes when flow reverses. Incorrect orientation or turbulent piping can prevent reliable operation. These problems often cause restricted flow, disc chatter, reverse leakage, and water hammer. They can increase maintenance costs and shorten equipment life. Proper installation starts with understanding the valve's position and operating conditions. You'll learn how to check flow direction, pipeline placement, sizing, and mechanical connections. We'll also cover commissioning checks and practical troubleshooting methods to prevent recurring flow problems.
Installation orientation directly affects how the internal disc opens and closes. Incorrect positioning can prevent normal operation or allow unwanted reverse flow. Before installation, confirm the flow direction and permitted mounting position.

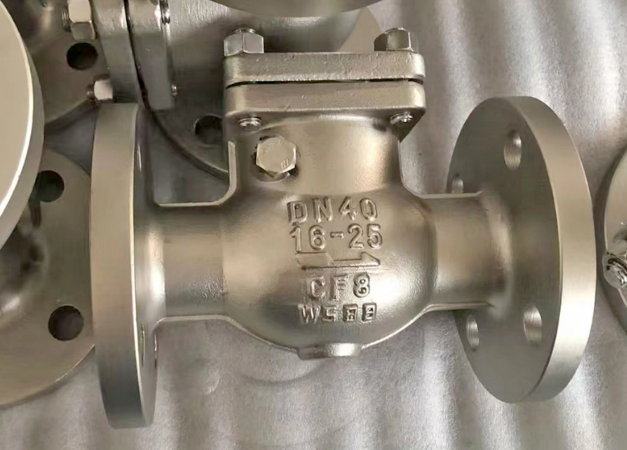

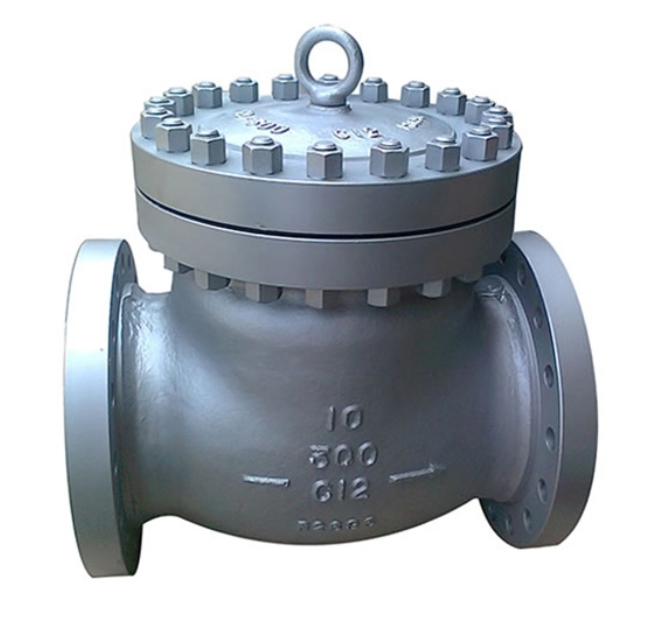

Most swing check valves have an arrow marked on their bodies. This arrow indicates the direction fluid should travel during normal operation. The valve must follow this direction to function correctly.
When fluid enters from the correct side, pressure pushes the hinged disc open. Once flow decreases or reverses, the disc moves toward its seat. Installing the valve backward prevents this movement from working as intended. A reversed valve may block forward flow and create excessive pressure loss. It can also affect pump performance and damage connected equipment.
Before securing the connections, complete these checks:
1. Locate the flow arrow on the valve body.
2. Identify the normal flow direction in the pipeline.
3. Position the valve so both directions match.
4. Confirm its orientation against the approved piping layout.
Never assume flow direction based only on the valve's external appearance.

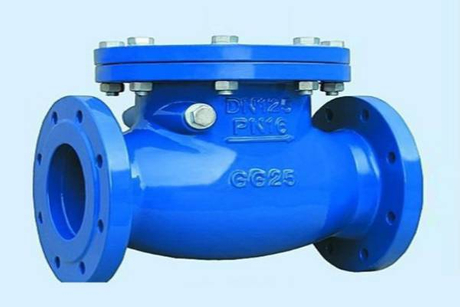

Horizontal pipelines are commonly suitable for conventional swing check valves. However, proper hinge positioning remains essential for reliable disc movement. For many conventional designs, the hinge axis must remain horizontal above the flow passage. This arrangement allows gravity to assist closure when forward flow decreases. The exact mounting requirements depend on the internal valve design.
Incorrect rotational positioning may cause uneven movement or prevent complete closure. The disc might remain partially open, allowing fluid to return through the valve. Repeated movement can also increase wear around the hinge. Installers should therefore check the valve's rotational position before tightening its connections. The flow arrow alone cannot confirm that the hinge is correctly aligned.
Some swing check valves support vertical installation, but not every design does. For conventional gravity-assisted designs, upward flow is generally required. During upward flow, fluid pressure pushes the disc away from its seat. When flow decreases, gravity helps return the disc toward its closed position. Reverse pressure then assists sealing.
Downward-flow installations can interfere with this closing action. An unsuitable valve may remain open or close unpredictably. Inclined installations require similar care because gravity acts differently at each angle. Always confirm the permitted orientation for the selected model. Our Swing Check Valve range includes products for fluid backflow control. We recommend confirming each model's installation requirements before selecting its pipeline position.
The following comparison summarizes common orientation considerations.
Pipeline Orientation | Installation Guidance | Potential Problem |
Horizontal | Maintain the specified hinge position and flow direction | Disc binding or incomplete closure |
Vertical, upward flow | Use a model approved for upward-flow installation | Unstable opening at insufficient flow |
Vertical, downward flow | Avoid unless the specific design permits it | Unreliable closure and reverse flow |
Inclined | Confirm the approved angle and hinge arrangement | Irregular disc movement or leakage |
Correct orientation cannot compensate for poor pipeline positioning. Nearby fittings and pumps can create uneven fluid movement. These conditions may prevent the disc from remaining stable during operation. A suitable installation location should provide reasonably uniform flow and adequate maintenance access.
Elbows, tees, and reducers change fluid velocity and direction. These changes can create turbulence around the valve inlet. The resulting flow pattern may push unevenly against the disc. When this happens, the disc can repeatedly move between opening positions. This movement often produces clicking noises, vibration, and unnecessary wear. Straight piping helps the flow become more uniform before entering the valve. However, the required distance depends on the valve design and system conditions.
Consider two installation arrangements:
Installation A: A valve sits immediately after a sharp elbow. Uneven inlet flow causes frequent disc movement during normal operation.
Installation B: The valve sits farther downstream within a straight, supported pipe section. Its more uniform inlet flow helps the disc remain stable.
The second arrangement generally offers better operating conditions. However, the final distance should follow approved installation requirements. Avoid applying a universal straight-pipe distance to every swing check valve. Some systems require additional analysis because their flow patterns are unusually complex.
Swing check valves frequently protect pump discharge pipelines against reverse flow. When a pump stops, the valve helps limit backward fluid movement. However, pump discharge conditions can strongly influence valve behavior. Rapid starts, sudden shutdowns, and changing pump speeds affect pressure across the disc.
A valve installed directly beside a pump may experience disturbed flow. This risk depends on the pump configuration and nearby piping components. For example, a pump operating at variable speed may produce changing flow rates. At reduced output, the disc might no longer remain fully open. Repeated movement can then cause noise and premature wear.
Before choosing the location, evaluate the following conditions:
Normal pump output: Confirm that forward flow can maintain stable disc opening.
Minimum operating flow: Check whether reduced flow creates repeated disc movement.
Shutdown behavior: Evaluate how quickly pressure and flow change.
Nearby fittings: Identify components that may disturb the inlet flow.
A better location can improve operating stability. Nevertheless, changing the valve position cannot correct every unsuitable pump condition.
Valve sizing affects more than connection compatibility. It also determines how the internal disc responds during normal operation. A swing check valve must operate within a suitable flow range. Incorrect sizing or unstable flow can cause chatter, excessive pressure loss, and sudden closure.
Installers often select valves using the pipeline's nominal diameter. Although connection size matters, it cannot determine valve suitability by itself. An oversized valve may receive insufficient flow to open its disc fully. The disc can remain partially open and move repeatedly. This behavior is commonly called valve chatter.
Persistent chatter can damage hinges, sealing surfaces, and internal components. It may also increase pressure fluctuations throughout the pipeline. An undersized valve creates different problems. Excessive velocity through its passage can increase pressure loss and energy consumption.
Consider a pipeline designed for occasional high-flow operation. Its normal flow may be much lower than its maximum capacity. Selecting a valve solely for peak flow could produce unstable everyday operation.
Review these operating factors before installation:
Normal flow rate: Determine the expected flow during routine operation.
Minimum flow rate: Confirm that the disc remains sufficiently open and stable.
Pressure differential: Check whether operating pressure can support reliable opening.
Maximum flow rate: Evaluate pressure loss and velocity under peak conditions.
Manufacturers may provide pressure-loss curves or minimum-flow recommendations. These details help engineers determine whether a particular model fits the application.
Water hammer occurs when fluid velocity changes rapidly, creating a pressure surge. Sudden valve closure can contribute to this problem. During pump shutdown, forward flow begins to decrease. The disc moves toward its seat as the available opening force falls. However, closure may occur after reverse flow has already developed.
If the disc closes against significant reverse velocity, it may strike its seat forcefully. This impact can create noise and damaging pressure waves. Pipeline length, fluid velocity, pump characteristics, and pressure conditions influence surge severity. Chatter and water hammer have different causes. Chatter involves repeated disc movement during forward-flow operation. Water hammer involves rapid changes in fluid momentum.
For systems experiencing frequent shutdowns, evaluate the expected closure response carefully. A conventional swing design may not suit every high-surge application. Some systems require controlled-closing or faster-response check valves. These alternatives should be evaluated using actual operating conditions and hydraulic analysis.
Even a correctly selected valve can fail when installation preparation is poor. Debris, damaged components, and misaligned connections may interfere with internal movement. A careful inspection reduces the chance of problems during initial startup.
Start by confirming that the valve meets the application's operating requirements. Check its pressure rating, temperature limits, materials, and connection type. Inspect the body for visible cracks, dents, or transportation damage. Check accessible internal components according to the manufacturer's inspection procedures.
The hinged disc should move freely within its intended operating range. Damaged hinges or obstructed movement can prevent reliable opening and closure. Pipeline cleanliness is equally important. Welding residue, metal particles, and construction debris may enter the valve during installation. Foreign materials can become trapped between the disc and seat. Even small particles may prevent complete closure and cause reverse leakage.
Prepare the pipeline using these steps:
1. Confirm that the piping system is safely isolated and depressurized.
2. Remove accessible debris from the connecting pipe sections.
3. Inspect valve openings and sealing surfaces for contamination.
4. Check the disc and hinge using approved inspection methods.
5. Confirm that sufficient maintenance clearance remains around the valve.
Do not install a damaged valve or force its disc into position.
Proper alignment prevents unnecessary mechanical stress on the valve body. The connecting pipes should remain supported throughout installation. Never use the valve to pull misaligned piping into position. This practice can distort connections and place excessive loads on the body.
For threaded connections, select a compatible thread sealant. Apply it according to the connection requirements. Excessive sealant may enter the valve and interfere with disc movement.
For flanged connections, inspect the gaskets and mating surfaces. Position each gasket correctly before tightening the fasteners. Tighten flange bolts using the specified sequence and torque values. Uneven tightening can create leakage or unwanted connection stress.
Before commissioning, verify the final arrangement using this checklist.
Pre-Installation Checklist
Flow direction matches the valve body arrow.
Pipeline orientation meets the valve's installation requirements.
Valve size matches the expected operating flow.
Nearby fittings satisfy applicable installation requirements.
The pipeline is free from construction debris.
Disc and hinge movement have been inspected.
Connections are aligned and adequately supported.
Maintenance access remains available.
Completing these checks helps identify installation errors before the system becomes pressurized.
Commissioning confirms whether the installed valve performs correctly under actual operating conditions. Visual inspection alone cannot establish reliable flow control. Testing should examine forward flow, closure behavior, and system stability.
Begin by completing the required pressure and leakage tests. Follow the project's approved procedures and safety requirements. Fill and vent the pipeline appropriately before starting normal operation. Trapped air can affect pressure readings and create unstable hydraulic conditions. Where the operating procedure permits, increase forward flow gradually. Observe upstream and downstream pressure during startup.
An unexpectedly large pressure difference may indicate restricted disc opening. Incorrect orientation, debris, or unsuitable sizing could explain this behavior. Inspect accessible connections for external leakage. Listen for repeated clicking, vibration, or unusual mechanical noise.
Next, observe the system during a controlled pump shutdown. The valve should limit reverse flow according to its design requirements. A pressure change during shutdown does not automatically indicate failure. Compare the observed response against expected system behavior. Avoid unnecessary repeated shutdown testing when surge risks remain unknown.
A valve may operate correctly at full flow but struggle at reduced output. Commissioning should therefore include representative operating conditions. Where safe and practical, evaluate normal and minimum operating flow. Listen for chatter and monitor pressure fluctuations during each condition. For example, a valve may remain quiet at maximum pump output. At lower speeds, repeated clicking may begin. This pattern suggests insufficient or unstable disc opening.
Record the following information during testing:
Operating flow rate and relevant pressure readings.
Unusual sounds or vibration during steady operation.
Pressure changes during startup and shutdown.
Any evidence of reverse leakage or connection problems.
Compare the results against the system's expected performance. Investigate abnormal conditions before approving continuous operation.
Flow problems do not always indicate a defective valve. Incorrect installation or unsuitable operating conditions may produce similar symptoms. Identifying the symptom helps narrow the investigation and avoid unnecessary replacement.
The following table connects common symptoms to likely causes and practical inspection steps.
Flow Problem | Possible Cause | Recommended Inspection |
Restricted forward flow | Reversed installation, debris, or insufficient disc opening | Check the flow arrow, pressure loss, and internal obstruction |
Repeated clicking or chatter | Low flow, turbulence, or unstable pump output | Review flow conditions, sizing, and nearby fittings |
Reverse leakage | Trapped particles, damaged seat, or improper closure | Inspect sealing surfaces and hinge movement |
Loud banging during shutdown | Rapid closure against reverse flow | Evaluate shutdown conditions and hydraulic surge |
Excessive vibration | Unstable disc movement or inadequate pipe support | Inspect operating flow and pipeline supports |
Consider a newly installed valve that chatters during reduced pump operation. However, it becomes quiet when the pump reaches full output. Replacing the valve immediately may not solve the underlying problem. The reduced flow might be insufficient to maintain stable disc opening.
First, compare actual operating flow against the valve's requirements. Then inspect nearby fittings and evaluate possible turbulence. If the problem persists, investigate the internal components and overall valve suitability. Always isolate and depressurize the system before internal inspection. Follow approved maintenance procedures for the fluid and operating pressure.
Reliable Swing Check Valve performance depends on correct orientation, pipeline layout, valve sizing, and operating conditions. Proper installation helps maintain smooth forward flow and prevent reverse leakage. Always verify mounting positions, inlet flow stability, and valve opening across different operating conditions. Commissioning should confirm smooth flow and reliable closure during pump shutdown. Persistent chatter or water hammer may indicate deeper system design or valve selection problems. Addressing these issues early helps reduce maintenance costs and protect downstream equipment. At Suzhou Kizi Valve Co., Ltd., we provide swing check valve solutions for reliable backflow prevention. We recommend evaluating pipeline conditions and operating requirements before selecting our products to support long-term system reliability.
A: Yes, a Swing Check Valve can be installed vertically if its design permits upward flow. Downward-flow installation is generally unsuitable for conventional gravity-assisted designs. Always confirm the manufacturer's installation requirements.
A: Installing a Swing Check Valve backward can restrict forward flow and increase pressure loss. Always match the valve body's directional arrow to the pipeline's normal flow direction before securing connections.
A: A Swing Check Valve may chatter because of low flow, turbulence, or improper sizing. Check nearby fittings, pump output, and operating pressure to identify unstable disc movement.
A: The required distance depends on valve design and pump conditions. Adequate straight piping helps reduce turbulence and stabilize disc movement. Follow the manufacturer's recommended installation clearance.
A: Preventing water hammer requires proper valve sizing, suitable placement, and controlled closure behavior. Evaluate reverse-flow velocity during pump shutdown and consider faster-closing designs when hydraulic surge risks remain significant.
