Swing Check Valve Maintenance Guide for Longer Service

Unplanned fluid system downtime represents a severe operational expense rather than an unpredictable mechanical failure. Neglected infrastructure remains the primary culprit. Unmaintained check valves account for a significant percentage of catastrophic pipeline backflow and pump damage incidents, particularly in harsh water treatment and aggressive oil and gas applications.

While a swing check valve is fully automated and conceptually simple, its reliance on system fluid dynamics and gravity makes it highly susceptible to sediment buildup, seat degradation, and mechanical fatigue. Operators often ignore symptoms like chattering or water hammer until disaster strikes.

Implementing a proactive, standardized maintenance protocol—combined with correct baseline installation—can reduce valve failure rates by up to 40%. This ensures a 5 to 20-year operational lifespan depending on fluid corrosivity and cycling frequency.

• Lifespan Expectations: A properly maintained industrial swing check valve yields a 5–20 year lifespan; neglecting internal scaling or utilizing incorrect lubricants truncates this to 1–2 years.

• Installation Physics: Preventive maintenance cannot solve installation errors. Swing check valves are optimized for horizontal piping; vertical-up installations risk severe water hammer, and vertical-down installations render the valve useless.

• Lubrication Traps: Applying clay-based or solid-thickener lubricants is a primary cause of hinge pin binding. Only fluid-compatible, synthetic lubricants should be applied to internal moving parts.

• The Replace vs. Repair Threshold: While seat regrinding resolves minor leaks, deep structural pitting, cracked valve bodies, or severe water-hammer fatigue dictate immediate replacement to prevent pressure vessel explosion risks.

Anatomy, Variations, and Pros vs. Cons (Featured Snippet Target)

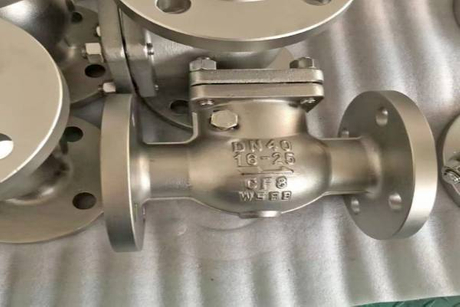

Core Structural Components

Understanding maintenance demands a clear grasp of internal anatomy. We must deconstruct the valve mechanism to identify individual wear points. The valve body serves as the primary pressure vessel, manufactured to strict ASME wall thickness standards to contain media safely. The disc, or flap, acts as the flow-controlled closure member, physically blocking or allowing fluid passage based on kinetic energy. The hinge pin provides the essential swing pivot, carrying the operational load of the moving disc while resisting shear forces. The seat ring acts as the primary sealing surface, requiring an absolute micro-finish tolerance to prevent low-pressure leaks. Finally, the cover or bonnet offers secure maintenance access, allowing technicians to inspect internals without cutting the unit out of the existing pipeline infrastructure.

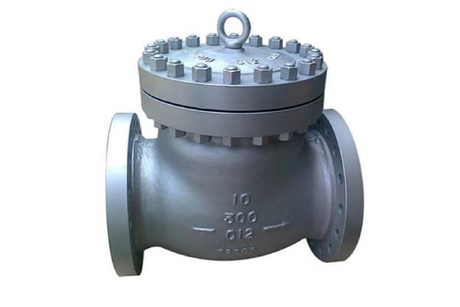

Standard Top-Hinged vs. Tilting Disc Designs

Industrial applications utilize two primary structural variations. The traditional top-hinged design dominates standard flow rates across commercial markets. When fully open, the disc pushes upward and sits flush against the upper body cavity, hiding completely within the turbulent boundary layer to maximize throughput. The tilting disc variant solves specific dynamic problems. It utilizes a domed disc geometry and a center pivot point. This engineering choice allows the valve mechanism to open at much lower fluid velocities. Furthermore, the balanced pivot path helps the disc close significantly faster as forward flow decays. This rapid closure sharply mitigates destructive water hammer shockwaves in large-scale pumping stations.

Operational Pros & Cons

Engineers must weigh specific operational advantages against inherent limitations. Ultra-low fluid resistance stands out as the primary advantage. The unobstructed flow path allows high-volume transfer with minimal pressure drops, improving pump efficiency. Structural simplicity ensures low manufacturing and replacement costs. The mechanism operates completely automated, requiring absolutely zero manual actuation or pneumatic supply lines. However, distinct disadvantages exist. Slower, gravity-reliant closure cannot match the millisecond reaction time of spring-assisted inline valves. The mechanism remains highly vulnerable to turbulent flow conditions, which induce premature hinge wear. Operators must also remember a strict operational rule: forcing these valves open or closed manually using external levers is strictly forbidden and structurally dangerous.

The Mechanics of Failure: Why Swing Check Valves Degrade

Operational Physics and Wear Points

Mechanical degradation links directly to operational physics. We evaluate cracking pressure first. This value defines the absolute minimum upstream pressure required to unseat the disc against its own weight. Over time, mineral scaling artificially increases this threshold. The upstream pump must work harder to initiate flow, leading to severe pipeline restriction and energy waste. Next, we examine the spherical hinge-to-disc connection. This specific joint allows a 360-degree degree of freedom, guaranteeing a zero-leakage seating position through natural self-alignment upon closure. However, particulate abrasion destroys this precise mechanical compensation. Abrasive oil, sand, or slurry lines grind away the metal tolerances. The disc eventually hangs askew and fails to seat correctly, creating a permanent bypass leak.

High-Risk Engineering Environments

Every mechanical device possesses absolute limitations. We can pinpoint why specific environments destroy these valves prematurely. Pulsating flows and extreme low-velocity applications cause chronic disc chattering. The disc flutters rapidly in the flow stream instead of pressing firmly against the open stop. This constant vibration accelerates hinge pin wear, elongating the pivot holes within months. High-frequency cyclic operations introduce immense mechanical stress. A valve opening and closing every sixty seconds fails much faster than one handling steady-state, continuous flow for months at a time.

Engineering Prerequisites: Validating Installation Before Maintenance

Flow Dynamics and Load-Bearing Rules

Maintenance cannot fix a flawed pipeline installation. Technicians must isolate valves from turbulent zones. Industry standards mandate a minimum straight pipe run away from bends, elbows, reducers, and control valves. Engineers recommend a minimum of five pipe diameters of straight run upstream to stabilize flow before it hits the valve disc. Independent load-bearing requirements apply heavily to large-diameter infrastructure. Heavy steel or cast iron pipelines must never transfer their massive dead weight onto the valve body. Installers must use dedicated supporting brackets and pipe hangers. Failing to do so causes casing distortion, flange warping, and permanent internal binding of the disc.

Orientation, Connection Integrity, and Environmental Protection

Strict physics dictate installation orientation. Horizontal remains the primary standard for maximum efficiency. We strongly warn against vertical-up installations. Gravity violently accelerates disc closure upon pump shutoff in vertical lines, inducing system-shocking water hammer that can rupture downstream equipment. Vertical-down installations render the mechanism entirely useless because gravity holds the disc permanently open, allowing unrestricted backflow. Connection types dictate your maintenance access strategy. Manage dismantling joints in flanged setups for rapid extraction during turnarounds. For welded installations, technicians must protect internal elastomers. Keep the welding flame moving constantly to avoid localized overheating. In lower-pressure systems, follow strict thread-sealant protocols when installing a Threaded Swing Check Valve to prevent micro-leaks along the pipe threads.

Weatherproofing demands equal attention. Inspect thermal insulation layers on all outdoor installations. Extreme ambient temperature cycling—such as freezing nights and blistering afternoons—induces physical micro-cracking in the metal body over time. Proper insulation prevents this costly structural failure and keeps internal fluids from freezing and expanding.

7-Step Standardized Swing Check Valve Maintenance SOP

Step 1-3: Safety Isolation, Teardown, and Downtime Prep

1. Depressurization (OSHA/ANSI Compliance): Lock out the upstream and downstream valves securely. Open the system bleed valves to release trapped pressure safely. This prevents hazardous media blowout during disassembly.

2. Safe Extraction and Orientation Marking: Document the flow-direction arrow stamped on the valve body prior to removal. Extract the unit carefully using appropriate rigging for heavy lines. Lay the assembly flat on a stable, non-marring workbench to protect the flange faces.

3. Facility Downtime Actuation: If the pipeline system remains offline for extended periods, technicians must manually actuate the internal flap every few weeks. This breaks surface tension and prevents static sticking or rust fusion between the seat and disc. Perform thorough visual diagnostics, inspecting for seat ring corrosion, disc hinge micro-cracks, and cover gasket integrity.

Step 4-5: Precision Cleaning, Descaling, and Surface Restoration

4. Chemical/Ultrasonic and Mechanical Descaling: Implement rigorous cleaning using soft-bristled brushes and media-compatible solvents to break down sludge. We recommend ultrasonic cleaning baths for severe mineral scaling. Abrasive wire wheels on internal seating surfaces are explicitly banned, as they destroy the required sealing micro-finish.

5. Seat Polishing: Address minor scoring that causes passing micro-leaks through meticulous seat polishing. Use fine diamond lapping compounds to gently re-establish the critical metal-to-metal or metal-to-elastomer seal. Ensure the internal channels reflect a smooth finish before proceeding.

Step 6-7: Lubrication and Recommissioning

6. Lubricant Selection Constraints: Apply only thin-film, system-compatible synthetic lubricants to pivot points. We issue a strict warning against clay-thickened greases. High operational temperatures bake these greases, causing them to harden and freeze the hinge pin over time.

7. Testing and Reassembly: Reinstall the unit matching the previously documented directional arrow. Torque all flange bolts in a diagonal, cross-pattern sequence using a calibrated torque wrench. This prevents uneven flange stress and external weeping. Slowly introduce line pressure and monitor the installation closely for external drops or internal chattering sounds.

Material Alignment: Ensuring Media Compatibility During Servicing

Verifying Valve Body and Seat Materials

Recurring failures often stem from material mismatch rather than maintenance neglect. You need a troubleshooting framework to verify media compatibility before blaming mechanical fatigue. Always cross-reference the system media against the installed materials. Pumping aggressive acids through a standard iron body leads to catastrophic wall thinning. Using the wrong elastomer leads to rapid chemical degradation, swelling, and immediate seal failure.

Troubleshooting Matrix: The "Repair vs. Replace" Decision Framework

Diagnosing Common Operational Faults

Facilities can solve most operational issues by diagnosing the exact mechanical symptom. Use this matrix to identify root causes and assign immediate corrective actions.

• Symptom: Backflow or Passing. The root cause involves a scored seat or trapped debris physically preventing complete closure. Action: Descale the internals, remove the foreign obstruction, and lap the seat with a fine compound.

• Symptom: Sluggish Operation or Sticking. The root cause points to a corroded hinge pin or baked, hardened lubricant restricting motion. Action: Polish the internal guide surfaces, remove old residues, and apply correct synthetic grease.

• Symptom: Violent Vibration or Knocking. The root cause stems from low flow velocity causing a partial opening. Turbulent flow from nearby elbows or a broken return spring also causes this flutter. Action: Verify the flow direction and pipe run lengths. Consider reducing the pipe diameter by one size to artificially increase flow velocity, which firmly stabilizes the disc against the open stop.

• Symptom: External Dripping or Weeping. The root cause involves degraded flange gaskets or uneven flange bolt torque. Action: Replace the gaskets completely, inspect flange faces for scoring, and retorque all bolts in a diagonal cross-pattern.

Hard Criteria for Total Unit Replacement

Maintenance teams must recognize non-recoverable mechanical failures. Attempting repairs on structurally destroyed units invites disaster and legal liability. Wall-thinning due to acid pitting requires immediate replacement. Visible external casing cracks carry extreme explosive safety risks under pressure. Never attempt to weld or patch a cracked pressure vessel. Severe internal tolerance loss from chronic water hammer represents a final breaking point. When the pivot holes elongate beyond repair, simple machining cannot correct the alignment. You must replace the entire check valve assembly immediately to restore system integrity.

Inventory Storage and Pre-Use Commissioning

Preserving Spare Parts ROI

Spare parts represent idle operational capital. Establish strict environmental baselines for stored spare valves to protect this investment. Keep them in a dry, well-ventilated, and climate-controlled facility. Store them far away from direct ultraviolet (UV) exposure. UV light rapidly degrades internal elastomer seats, making them brittle and useless before installation. Elevate heavy valves off concrete floors using wooden pallets to prevent moisture wicking and flange rust.

Pre-installation Unpacking Steps

Rigorous pre-installation protocols prevent early mechanical failures. Mandate the retention of factory end-caps until the exact moment of pipeline installation. These plastic caps keep metallic dust, moisture, and vermin out of the critical sealing areas. Upon unpacking, technicians must remove any internal protective paper or foam from the disc assembly. Strip all temporary blind plates. Finally, use a non-acidic, non-alkaline solvent wash. This clears the factory-applied rust-preventative shipping oils. Complete this solvent wash before introducing the unit to your process media to prevent downstream system contamination and sensor fouling.

Future Innovations in Check Valve Maintenance

The Next Generation of Fluid Control

Incoming trends continue to shape modern industrial maintenance protocols. Digital intelligence leads this evolution across massive refineries and treatment plants. Facilities now clamp IoT acoustic sensors directly to the exterior valve body. These remote sensors detect internal chattering or passing flow frequencies long before physical structural damage occurs. Advanced noise reduction fluid dynamics represent another leap forward. Engineers manipulate internal chamber geometries to smooth turbulent boundary layers, essentially eliminating water hammer shockwaves. Finally, the integration of ultra-high strength composite materials changes the manufacturing landscape. These composites drastically lower overall unit weight while resisting harsh chemical pitting indefinitely. This reduces the required maintenance frequency across the entire facility and lowers required pipe support load limits.

Conclusion

A backflow prevention mechanism does not operate as an install-and-ignore component. Its passive operational nature dictates that its reliability depends entirely on fluid quality and proactive mechanical upkeep. Neglect leads directly to catastrophic system failure, pump destruction, and regulatory fines. We advise facility managers to integrate a 6 to 12-month inspection interval into their Computerized Maintenance Management System (CMMS), adjusting the frequency based on media corrosivity, operating temperatures, and daily cycling rates.

Execute the following steps to secure your infrastructure:

• Audit your current installations to confirm exact horizontal alignment and verify minimum straight pipe run distances.

• Replace all clay-based lubrication inventory in your tool cribs with approved, thin-film synthetic alternatives designed for continuous operation.

• Schedule baseline acoustic or visual leak testing for your most critical pipeline junctions before the end of the current quarter.

• Update your CMMS software with precise inspection intervals tailored specifically to your exact fluid media and pressure ratings.

FAQ

Q: How often should an industrial swing check valve be cleaned?

A: You should clean them typically every 6 to 12 months. This interval remains highly dependent on the fluid medium. Slurry or high-mineral water systems require much shorter maintenance intervals to prevent scaling. Clean, closed-loop hydraulic systems can operate significantly longer without requiring internal inspection.

Q: Can a swing check valve be installed vertically?

A: Vertical installation is strongly discouraged. Vertical-downward flow renders the valve completely useless, as gravity keeps the disc permanently open. Vertical-upward flow is physically possible but highly prone to severe water hammer upon flow reversal. Horizontal installation remains the absolute engineering standard for maximum efficiency and safety.

Q: What causes a check valve to chatter?

A: Chattering is primarily caused by low flow velocity failing to push the disc fully open against its stop. Pulsating flows or turbulent flow from elbows installed too close to the unit also trigger this. Reducing the pipe diameter to artificially increase fluid velocity often permanently resolves low-flow flutter.

Q: How do I fix a leaking Threaded Swing Check Valve?

A: Depressurize the line safely, unthread the valve, and inspect the internal seat. Most leaks result from trapped debris or mineral scaling. If the seat remains clean but scored, lapping the disc or replacing the internal elastomer ring is required. Always check threaded connections for degraded PTFE tape upon reassembly.

Q: What is the expected lifespan of a swing check valve?

A: With correct material selection, proper horizontal installation to avoid water hammer, and routine mechanical maintenance, industrial units yield a high return on investment lasting between 5 and 20 years. Neglect in harsh chemical or abrasive applications will rapidly reduce this operational life to just 1 to 2 years.

Q: Why shouldn't I use clay-based lubricants on valve internals?

A: Clay-based and solid thickeners bake, harden, and leave solid residues under continuous operational temperatures. Over time, this baked residue physically binds the hinge mechanism. This completely seizes the mechanical pivot and prevents the disc from freely swinging open or closing during flow reversal.
