Uncontrolled backflow in industrial fluid systems presents severe operational risks. If fluid reverses direction, the consequences cascade rapidly. Catastrophic pump impeller damage is a common result. Compressor failures can shut down entire production lines. You also face upstream process contamination. In the worst scenarios, hazardous materials or toxic fluids leak into the surrounding environment.
Selecting the correct check valve requires strict engineering precision. Undersizing the component leads to excessive pressure drop. This forces pumps to work harder, driving up energy costs. Incorrect design selection causes destructive water hammer. Severe pipe vibration follows, leading to premature mechanical failure and blown seals.
This guide serves as an engineering-focused framework to evaluate configurations, materials, and installation constraints for optimized Total Cost of Ownership (TCO). We evaluate specific variations to align with exact industrial requirements.

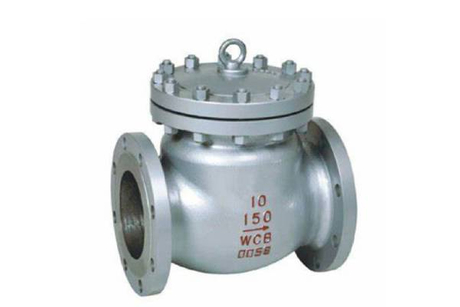

Standard swing check valves offer exceptionally low pressure drops and are ideal for low-to-moderate velocity flows, but rely entirely on flow dynamics and gravity, requiring specific installation orientations.
Selecting between T-pattern, Y-pattern, and Tilting Disc designs requires a direct trade-off analysis between physical footprint limitations, closing speed, and acceptable system pressure drops.
Mitigating water hammer (slamming) necessitates moving beyond standard gravity-hinge designs to specialized variations incorporating external levers, springs, or hydraulic dampers.
Long-term TCO is dictated less by the initial purchase price and more by the valve's pressure differential impact on continuous pump energy consumption.
Understanding internal mechanics prevents costly sizing errors. These components operate automatically. They require no external power source, sensors, or manual actuation. Instead, they rely entirely on the fluid acting upon their internal structures.
The operating principle depends on a physical balance. Upstream dynamic fluid pressure pushes against a hinged disc. Engineers frequently refer to this moving part as a clapper. When forward pressure exceeds both gravity and downstream backpressure, the disc swings open. Fluid passes through the body. If flow stops or reverses, downstream backpressure and gravity force the disc shut. This physical barrier blocks reverse flow.
The standard internal anatomy consists of seven specific parts. The valve body houses all components and contains the system pressure. Inlet and outlet ports connect directly to the pipeline via flanges or threads. The bonnet acts as a removable cover for internal access and maintenance. The hinged disc physically blocks the flow path. The hinge pin acts as the central pivot shaft, allowing the disc to swing smoothly. The seat provides the precise, machined surface where the disc rests to create a tight seal. Finally, an external flow directional arrow dictates proper pipeline orientation.
Technical specifications dictate how well the hardware matches your system. Manufacturers provide performance curves and flow coefficient data. You must understand how to interpret these metrics to ensure proper pipeline operation and long-term reliability.
Cracking pressure is a fundamental metric. We define this as the exact minimum upstream pressure required to overcome disc inertia, physical weight, and hinge friction to initiate forward flow. You calculate this value to match your specific system pump curves. Properly matching cracking pressure to your Piping and Instrumentation Diagrams (P&IDs) ensures the disc opens fully during normal operational states.
Pressure differential and backpressure govern flow efficiency and sealing integrity. The Delta-P metric measures the exact pressure lost as fluid moves through the body. High Delta-P indicates inefficiency. Backpressure is the force acting against the closed disc from the downstream side. This specific force drives the absolute positive seal. It presses the disc firmly against the machined seat, achieving bubble-tight closure.
Selecting the wrong mechanism for your fluid velocity causes rapid mechanical degradation. You must align structural strengths with your specific pipeline dynamics. Failing to assess flow velocity limits leads to chatter, wear, and eventual joint failure.
Standard swing check valve models fit strict parameters. They perform best in low-to-moderate velocity flows. They are highly compatible with large-diameter piping infrastructure. If minimizing system pressure drop is your highest priority, this hinged design is superior. The wide-open disc creates an almost completely unobstructed path for the liquid.
Lift check valves serve a different purpose entirely. They operate on a vertical axis. They are better suited for high-velocity and high-pressure systems. In these extreme environments, a hinged disc would suffer immediate wear. Lift designs handle aggressive fluid impacts and turbulent flows much better than their swinging counterparts.
Ball check valves handle difficult, non-homogenous media. They use a free-floating sphere instead of a hinged mechanism. They are preferable for highly viscous fluids. They also manage heavy municipal sludge efficiently. The rolling action of the ball provides inherent self-cleaning properties. A standard hinged disc cannot offer this, making ball designs ideal for wastewater and heavy slurries.
Manufacturers alter basic body geometry to solve specific pipeline challenges. These structural variations manipulate how fluid travels through the housing. Each design offers specific flow characteristics that you must evaluate against your facility's spatial constraints.
The T-pattern features a 90-degree internal branch for the disc assembly. The fluid travels in a straight line directly beneath the raised clapper, while the bonnet extends vertically from the pipe axis.
This design provides a highly compact footprint. It fits easily into tight mechanical rooms and constrained piping runs. However, the abrupt perpendicular geometry introduces significant fluid turbulence. This turbulence results in higher system pressure drops. Therefore, T-pattern designs are best reserved for low-velocity systems where physical space is strictly limited and pump efficiency is a secondary concern.
The Y-pattern shifts the internal geometry completely. Both the disc and the bonnet body are angled at 30 to 45 degrees relative to the primary pipeline axis.
This specific angle provides a massive fluid dynamic advantage. It minimizes fluid impact deflection as liquid moves past the disc. This dramatically reduces kinetic energy loss. It limits internal turbulence and cuts down pressure drop compared to T-patterns. Fluid flows much more naturally through the angled body, maintaining laminar flow properties.
There are distinct trade-offs to consider. The angled bonnet requires a larger physical footprint. The complex metal casting also drives up the initial manufacturing cost. However, the long-term energy savings achieved through reduced pump load offset these upfront expenses.
Design Comparison Matrix: T-Pattern vs. Y-Pattern
Operational Metric | T-Pattern Design | Y-Pattern Design |
|---|---|---|
Internal Geometry Angle | 90 degrees (perpendicular) | 30 - 45 degrees (angled) |
Pressure Drop Impact | High (causes flow resistance) | Very Low (maintains pressure) |
Flow Efficiency | Moderate (generates turbulence) | Excellent (preserves laminar flow) |
Physical Footprint | Highly Compact | Extended / Requires more length |
Ideal Application | Space-restricted, low-velocity lines | Continuous flow, high-efficiency systems |
Tilting disc designs modify the standard pivot point. Instead of hanging from the top inner wall, the hinge pin sits closer to the geometric center of the disc. This drastically shortens the physical stroke distance. The unit closes much faster, helping to reduce destructive water hammer. However, this design exposes the hinge pin directly to the central flow path, making it highly vulnerable to debris wrapping.
Wafer swing checks prioritize extreme space reduction. They utilize an ultra-compact, flangeless body structure. You sandwich them directly between two existing pipe flanges using external bolting. They significantly reduce the overall weight of the piping assembly. They are excellent for tight commercial installations where structural load limits apply and heavy cast iron bodies are unfeasible.
Hinged mechanical valves have known physical vulnerabilities. You must engineer your system to counteract rapid fluid dynamic shocks. Ignoring these limitations leads to rapid system failure, ruptured pipes, and damaged pump seals.
Standard top-hinged designs frequently cause severe water hammer. The physical mechanics make this unavoidable in high-surge conditions. The disc travels a long distance, typically between 60 and 90 degrees. Mechanical friction on the hinge pin slows its downward movement.
When primary pumps shut off suddenly, the unit cannot close instantly. Reverse flow initiates before the disc fully reaches the seat. The reversing fluid grabs the heavy metal disc. It accelerates the mass and slams it violently against the seat. This high-velocity collision generates a massive pressure wave that travels back through the pipeline at the speed of sound. This shockwave damages joints, supports, and downstream instrumentation.
Valve chatter destroys internal components rapidly. It occurs when the disc rapidly opens and closes in quick succession. Metal impacts metal repeatedly, sending vibrations through the surrounding pipe.
Low-velocity flow is a primary cause. The fluid simply lacks the kinetic energy required to keep the heavy disc pushed fully open against gravity. Oversized valves face the exact same issue. Pulsating fluid dynamics from reciprocating displacement pumps also induce chatter. This continuous vibration degrades the central hinge pin. It eventually destroys precision metal-to-metal seals, causing the component to leak permanently.
You can mitigate slamming and chattering using specialized peripheral hardware. Engineers add external mechanisms to control the disc's movement speed and force.
External levers, heavy weights, and torsion springs offer mechanical control. You add external mass or high-tension springs directly to the extended hinge shaft. These mechanisms force the disc to close exactly as flow velocity hits zero. They act proactively. The physical barrier shuts completely before any reverse flow begins, eliminating the slamming collision entirely.
Air and hydraulic cushions provide another layer of heavy-duty protection. Manufacturers install external dashpots to absorb kinetic energy. As the disc swings shut, the hydraulic oil or pneumatic air cylinder slows its final few degrees of travel. This cushions the final impact, protecting the delicate internal seat and adjacent pipe joints from physical trauma.
Upstream strainers address seating failures. Debris accumulation prevents full closure. Solid particles wedge between the moving disc and the stationary seat. Installing heavy-duty inline filters prevents this debris from reaching the hinge mechanism. Clean flow is your primary defense against seating failure.
Selecting the right housing material dictates the total operational lifespan. You must match the metal alloy or industrial polymer directly to the fluid's chemical composition. Temperature parameters and pressure ratings further narrow your exact choices.
Cast iron provides the lowest initial procurement cost. It is well-suited for non-corrosive, ambient water systems. However, it remains highly brittle. Cast iron fails rapidly under high temperatures, extreme pressure spikes, or corrosive chemical environments.
Carbon steel offers mid-tier pricing with robust structural integrity. It boasts high pressure and temperature tolerance, making it a standard material for oil and gas pipelines. The major drawback is its vulnerability to oxidation. Carbon steel requires specialized protective exterior coatings to survive in humid or corrosive facility atmospheres.
Stainless steel commands a very high initial cost. Alloys like 316 SS are mandatory for modern chemical processing. They are also heavily required in food and beverage facilities. They offer exceptional corrosion resistance. They maintain strict fluid purity and meet stringent industrial hygiene standards without degrading.
Industrial plastics excel in specific corrosive environments. PVC and CPVC handle harsh chemical fluids effortlessly without rusting. They are excellent for low-temperature fluid handling applications like commercial swimming pools and agricultural irrigation networks. Clear PVC options are particularly useful. They act as inline sight glasses, allowing facility operators to perform visual internal inspections without halting flow or dismantling the pipe.
True union designs simplify routine maintenance. These threaded connections secure the main body between two easily removable lock nuts. They allow for rapid in-line maintenance. You can remove the central mechanism without cutting the pipe or re-gluing PVC fittings.
Connection types must match your system scale. Flanged connections are best for heavy industrial systems handling high pressures and large pipe diameters. Conversely, utilizing a Threaded Swing Check Valve for Plumbing Water Supply is ideal for smaller commercial networks. These threaded brass or polymer fittings emphasize strict adherence to local plumbing codes and significantly speed up the installation process.
Evaluating the Total Cost of Ownership involves strict financial calculations. The primary upfront pricing factors include physical size, pressure rating, and design complexity. However, the initial purchase price is only a tiny fraction of the total lifetime cost.
The operational cost dynamic centers entirely on electricity consumption. A cheaper T-pattern unit often creates a high internal pressure drop. This physical resistance forces the system pump to work significantly harder. The pump draws more electricity continuously to maintain baseline flow rates. Over a five-year operational period, these daily electrical costs compound massively.
Contrast this with a higher-priced Y-pattern unit. The smooth flow path offers very low resistance. The upstream pump operates at peak electrical efficiency. The recurring energy savings quickly surpass the initial procurement price difference. Calculating true TCO requires analyzing the specific pressure drop curve against your current local electricity rates.
Different heavy industries impose highly unique stresses on fluid control infrastructure. Applying a generic component to a specialized process guarantees eventual failure. We map specific variations to exact industrial needs to ensure reliability.
Municipal wastewater requires specific physical internal clearances. The strict requirement is a full-port, completely unobstructed flow path. Brass or stainless steel standard hinged models work best here. They allow solid municipal waste to pass through without hanging up on internal components.
You must avoid certain internal designs completely in this sector. Never use dual-disc or tilting-disc variations in raw wastewater. They present an extreme operational risk of "ragging." Fibrous debris, wet wipes, and hair wrap aggressively around the central hinge pins exposed in the flow path. The mechanism will jam open within weeks, causing massive system failure and flooding.
Petrochemical pipelines operate under highly dangerous conditions. You must enforce high-pressure API manufacturing standards across all procurement. Metallic hard-seating capabilities are required to withstand extreme heat and abrasive hydrocarbons without degrading over time.
Aggressive chemical media demand exotic metal alloys. Standard carbon metals degrade rapidly under chemical attack. You must specify advanced materials like Hastelloy, Inconel, or Duplex stainless steels. These highly specialized materials resist chemical degradation and prevent dangerous environmental leaks.
Potable public water systems prioritize human safety above all else. You must enforce strict NSF/ANSI compliance for all wetted materials. Lead-free brass and certified polymers are mandatory to prevent heavy metal drinking water contamination.
These systems also utilize resilient soft internal seals. Materials like EPDM or PTFE rubber coat the metal seat entirely. This ensures complete bubble-tight closure even at very low backpressures. Space-saving wafer designs are frequently employed in tight mechanical rooms to minimize the overall physical footprint of the water treatment skid.
Even the highest-quality hardware fails if installed incorrectly by technicians. Gravity plays a fundamental, unchangeable role in how these specific components operate. You must follow orientation geometry strictly to prevent catastrophic leaks.
Horizontal installation is the industry standard. It remains the most reliable orientation. The mechanism relies safely and predictably on gravity to pull the heavy clapper downward against the seat when forward flow stops.
Vertical installation is possible but strictly limited in scope. It is meant for upward fluid flow only. The fluid pushes the disc up against gravity. Gravity pulls it closed immediately when the pump cuts out. You must ensure the internal hinge pin remains perfectly horizontal relative to the ground.
The downward flow rule is absolute. Standard gravity-hinged models will fail permanently open in a downward-flowing vertical pipe. Gravity pulls the heavy disc away from the seat continuously. Specialized spring-loaded models are strictly mandatory in this exact scenario. Heavy internal torsion springs counteract gravity to force the disc closed against the flow.
Field technicians must execute a strict pre-commissioning checklist before pressurizing any new fluid line to operational levels.
Verify Orientation: Confirm the external flow directional arrow aligns exactly with the intended upstream pump direction.
Control Torque: Avoid overtightening threaded pipe joints. Uneven flange bolt torque distorts the metal body and binds the internal hinge mechanism.
Flush the Line: Ensure operators flush the entire piping network of welding slag and debris pre-installation to prevent immediate seat damage.
Check Clearances: Verify that the clapper has sufficient internal clearance to swing fully open without hitting adjacent pipe walls.
Establish a rigorous preventative maintenance routine. Utilize removable bonnets for inline debris clearing. You do not need to remove the entire housing from the pipeline. Regularly lubricate external hinges and damper levers. Replace soft internal seals during scheduled annual plant shutdowns.
Diagnosing physical failures requires systemic observation. Identify stuck-open components by watching for abnormal pump vibration signatures. Check for sudden impeller reverse rotation when electric motors power down. Listen closely for auditory hammering sounds in the pipe walls. Investigate any unexplained, sudden spike in pump energy consumption, as this directly indicates a mechanism that is failing to open fully.
Swing check valves deliver unmatched flow efficiency for high-volume, low-velocity industrial systems. Their mechanical simplicity makes them highly reliable when deployed correctly. However, long-term operational success dictates that your piping infrastructure must fully accommodate their strict installation constraints and inherent slamming risks.
Use a fast-track decision matrix for your engineering procurement. Choose Y-pattern bodies for continuous pump efficiency. Select spring-assisted external levers for high-surge pipelines. Choose lift designs over swinging designs for high-velocity environments. Opt for True-Union PVC when building light commercial water supply networks.
Execute these concrete next steps to finalize your system design:
Consult your facility's P&ID to verify the exact flow direction and spatial constraints of your target installation point.
Calculate your system's exact cracking pressure requirements by mapping out current pump performance curves and head pressure.
Audit your local commercial electricity costs to perform a true TCO analysis comparing standard bodies against low-pressure-drop Y-patterns.
Contact engineering sales directly for customized sizing recommendations and to select appropriate hydraulic dampeners for water hammer mitigation.
A: Yes, but strictly for upward-flowing fluids. Gravity will prevent the valve from closing in a downward-flowing pipe unless a heavy spring is integrated.
A: A check valve protects industrial equipment from reverse flow. A backflow preventer is a heavily regulated, testable, and often redundant assembly explicitly designed to protect public potable water from contamination.
A: The banging is water hammer. Mitigation requires replacing the valve with a faster-closing tilting disc, a spring-assisted closing mechanism, or retrofitting an external lever with a weight or hydraulic damper.
A: Usually caused by debris trapped in the valve seat, an oversized valve causing chatter, a worn hinge pin preventing planar alignment, or insufficient backpressure to force a metal-to-metal seal.
A: Yes, all valves cause some pressure drop due to friction and the force required to keep the disc open. However, swing check valves typically offer the lowest pressure drop among check valve types.
A: Cracking pressure is calculated based on the weight of the disc, the hinge friction, and the surface area of the disc exposed to the upstream flow. It is typically specified by the manufacturer in the valve's technical datasheet.
