Choosing the wrong valve can compromise flow control and increase operating costs. But which design delivers better performance? Globe valves adjust flow through linear disc movement. A Ball Valve uses a rotating ball to control the passage. Globe valves generally offer more precise throttling, while ball valves provide faster shutoff and lower flow resistance. Specialized control ball valves can also regulate flow effectively. The better choice depends on control accuracy, pressure loss, operating conditions, and maintenance requirements. We’ll compare their performance and explain where each design works best. You'll learn when globe valves suit continuous throttling and when ball valves offer greater efficiency.
Flow control performance depends on how smoothly a valve changes the fluid flow rate. Both designs can restrict flow, but they respond differently during adjustment. Understanding these differences helps engineers select equipment for stable and efficient operation.
Globe valves regulate flow through the vertical movement of an internal disc. As the disc moves away from its seat, the available passage gradually increases. This design allows controlled changes across a suitable operating range. Engineers can make smaller adjustments when the process requires careful regulation.
A conventional ball valve operates through a quarter-turn rotation. Its internal ball contains an opening that aligns with the pipeline during operation. Rotating the ball changes the available passage until the valve reaches its closed position. However, flow capacity does not change evenly throughout its rotation. Small movements near certain positions may produce significant changes in flow.
For this reason, standard ball valves are better suited to isolation duties. A specialized control ball valve uses modified openings or shaped internal components. These features improve flow adjustment across a wider operating range.
Globe valves are commonly selected for processes requiring frequent flow adjustments. Their internal design supports predictable throttling when the valve is sized correctly. This helps maintain stable flow conditions during changing process demands.
Ball valves respond quickly because they require limited rotational movement. This makes them effective when fast opening or closing is important. However, rapid movement does not automatically provide accurate control. Conventional full-port designs can be difficult to regulate at intermediate positions.
V-port and characterized ball valves address this limitation through specialized flow passages. They can provide effective modulation when matched to the application. Their performance also depends on actuator precision and pressure conditions.
The following comparison summarizes their typical operating characteristics.
Performance Factor | Globe Valve | Conventional Ball Valve |
Continuous throttling | Generally suitable | Usually not recommended |
Fine flow adjustment | More predictable | Limited without specialized trim |
Fully open pressure loss | Generally higher | Generally lower |
Operating movement | Linear stem movement | Quarter-turn rotation |
Flow capacity | Usually lower for similar sizes | Usually higher |
Primary application | Flow regulation | Shutoff and isolation |
These differences reflect conventional designs rather than every available configuration. Specialized rotary control valves may offer improved throttling performance.
Pressure loss influences energy consumption and overall system efficiency. A valve must provide adequate control without creating unnecessary resistance. This balance becomes especially important in high-volume industrial pipelines.
Globe valves direct fluid through an internal passage containing changes in flow direction. These changes create resistance as fluid moves through the valve. Even when fully open, the passage generally remains more restrictive than a full-port ball valve. Greater resistance produces pressure loss across the valve. Pumps may require additional energy to maintain the desired flow rate. In continuously operating systems, this can increase long-term operating costs.
However, pressure loss is not always undesirable. A regulating valve needs sufficient pressure drop to control flow effectively. Without adequate valve authority, changes in valve position may produce unpredictable system responses. Engineers should therefore evaluate both pressure loss and control requirements. Selecting the lowest-resistance valve does not always produce the most stable operation.
A full-port ball valve provides an opening close to the connected pipe diameter. This allows fluid to pass through with relatively little restriction when fully open. Such designs are useful for water distribution and high-volume fluid transfer. Reduced-port versions have smaller internal openings and create greater resistance. Their capacity depends on the actual passage dimensions and internal geometry. Therefore, nominal valve size alone cannot establish hydraulic performance.
Engineers commonly compare flow capacity using the flow coefficient, Cv or Kv. These values describe how much fluid passes through a valve under defined conditions. A higher coefficient generally indicates greater flow capacity at a given pressure drop. However, maximum capacity should not determine selection by itself. An oversized valve may provide poor regulation during low-flow operation. The best choice maintains useful control across the actual operating range.
Continuous throttling exposes internal valve components to changing velocities and pressure conditions. These operating stresses can affect sealing surfaces, vibration, and service life. Valve selection must consider how components perform during repeated adjustment.
Partially opened valves create narrow passages where fluid velocity can increase significantly. High-speed flow may gradually damage exposed sealing surfaces. The risk becomes greater when fluids contain abrasive particles or operate under high pressure differences.
Conventional soft-seated ball valves can experience wear during prolonged intermediate-position operation. Flow may concentrate around the ball opening and seat edges. Repeated exposure can damage these areas and reduce shutoff reliability.
Globe valves generally handle repeated throttling more effectively when fitted with suitable trim. Their disc and seat arrangement supports controlled flow adjustments. However, material compatibility and operating conditions still determine their actual service life.
Leakage performance also requires separate consideration. A valve providing accurate modulation does not automatically deliver the tightest shutoff. Engineers should verify sealing requirements alongside expected operating frequency.
Cavitation occurs when local liquid pressure falls below its vapor pressure. Vapor bubbles form and collapse as pressure recovers downstream. This process can damage internal surfaces and generate substantial noise.
Both valve types can experience cavitation under unsuitable operating conditions. High differential pressure increases the importance of proper valve design. Conventional ball valves may develop concentrated high-velocity jets during partial opening.
Specialized globe valve trims can reduce pressure through controlled stages. Engineered rotary control valves may also manage demanding pressure conditions. Neither design should be considered cavitation-resistant without supporting technical data.
Engineers should review pressure differences, liquid temperature, flow rates, and pressure recovery characteristics. Severe service applications may require additional noise or cavitation calculations. These evaluations help prevent premature wear and unplanned maintenance.
Different industrial processes place different demands on valve performance. Some require continuous regulation, while others prioritize rapid isolation. Matching the valve to its primary duty helps avoid unnecessary complexity and operating problems.
Globe valves are suitable for many systems requiring frequent flow adjustments. Their controlled movement helps operators maintain desired operating conditions. They are particularly useful when predictable modulation matters more than unrestricted flow.
Common applications include:
Steam regulation: Adjusting steam supply for heating and process equipment.
Cooling systems: Managing coolant flow to maintain stable operating temperatures.
Chemical processing: Regulating liquid delivery during controlled production operations.
Pressure control: Supporting pressure reduction through appropriately designed control assemblies.
Consider a heating system requiring frequent steam adjustments. A properly selected globe valve can provide progressive control as demand changes. This helps maintain process conditions without relying on repeated full opening and closing. However, suitability still depends on operating pressure and temperature. Steam applications may require specialized materials and sealing arrangements.
Ball valves perform well in pipelines requiring efficient flow and dependable isolation. Their quarter-turn movement allows operators to change valve position quickly. Full-port designs also minimize unnecessary resistance during normal flow.
Typical applications include:
Oil and gas pipelines: Providing isolation during maintenance and operating changes.
Water distribution: Allowing efficient flow through supply and transfer lines.
Industrial equipment: Isolating pumps, tanks, and individual processing units.
Fluid transfer systems: Supporting high-volume transportation where low resistance matters.
A water transfer pipeline illustrates this advantage clearly. During normal operation, the valve remains fully open for efficient transmission. Operators close it when equipment requires maintenance or isolation.

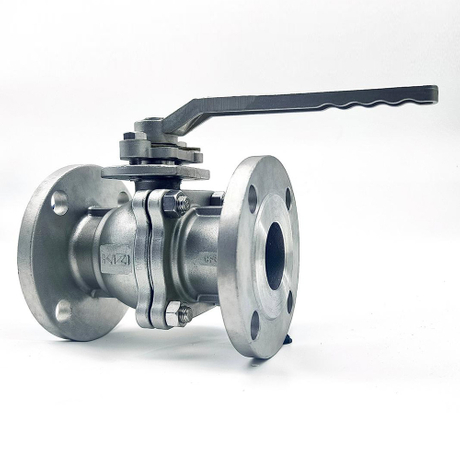

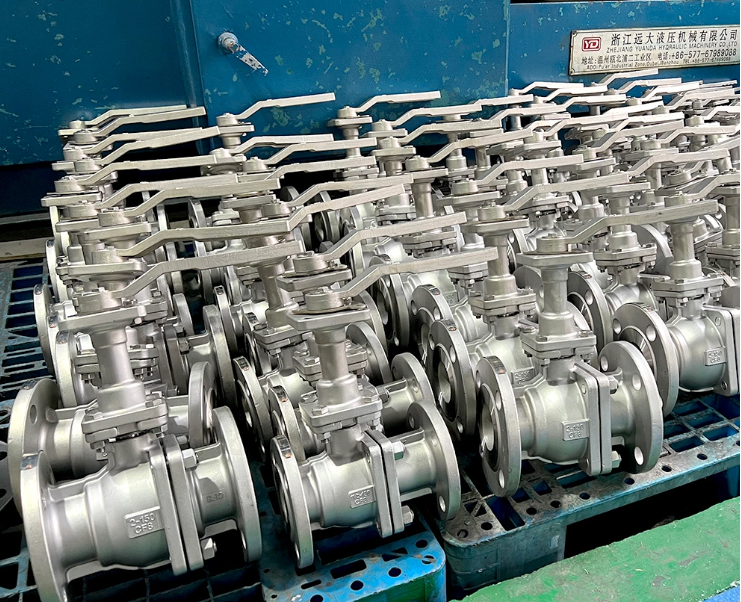

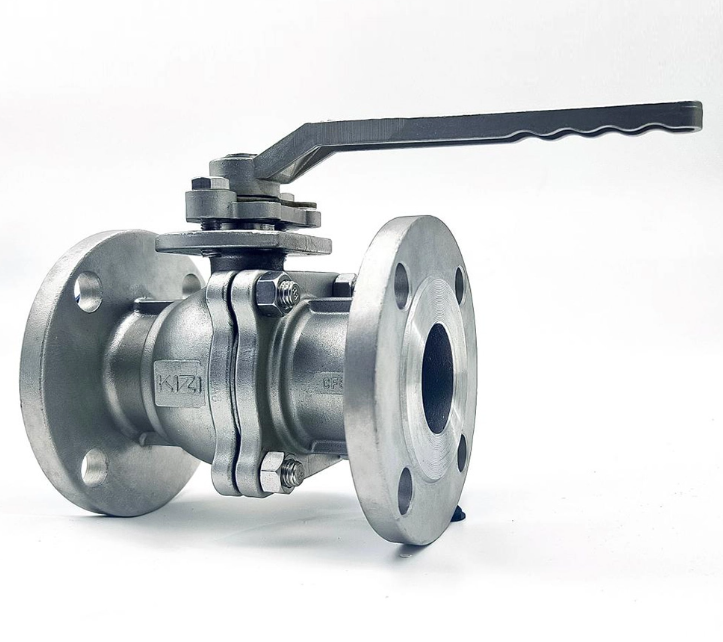

At Kizi, we offer ball valve solutions for different industrial pipeline requirements. Our range includes flanged, threaded, trunnion-mounted, and three-way configurations. We help customers evaluate suitable structures based on operating conditions and sealing requirements.
Specialized rotary control valves can also serve applications requiring higher flow capacity and modulation. Their specifications must confirm suitability for continuous control.
Selecting a valve requires more than comparing basic design advantages. Engineers must understand how the equipment will operate throughout its service life. A structured evaluation helps avoid poor control performance and unnecessary replacement costs.
Start by identifying the valve's main operating duty. Determine whether it will provide isolation, occasional adjustment, or continuous regulation. This distinction immediately narrows the available design choices. Next, establish the expected minimum, normal, and maximum flow rates. Record upstream pressure, downstream pressure, fluid temperature, and relevant fluid properties. These values help determine the required flow coefficient and operating range.
Valve sizing must account for changing process conditions. An oversized control valve may operate too close to its closed position. Small movements can then cause excessive changes in flow. An undersized valve may restrict production capacity or require excessive pressure drop. Actuation requirements also affect the final decision. Manual operation may work for occasional adjustments. Automated processes often require properly selected actuators and positioners.
Valve materials must resist the operating fluid and expected environmental conditions. Corrosive liquids, elevated temperatures, and abrasive particles create different demands. Body materials, trim components, and sealing elements must match these conditions.
Maintenance requirements deserve equal attention. Some globe valves allow relatively straightforward access to internal trim components. Ball valve maintenance depends on body construction and seat design. Serviceability should be evaluated for the selected model.
Energy consumption can also influence total ownership costs. A valve creating unnecessary resistance may increase pumping expenses. Conversely, poor control can produce process instability and additional operating losses.
Use the following checklist before finalizing a selection.
Operating Requirement | Recommended Evaluation |
Continuous precise regulation | Consider globe valves or engineered rotary control valves |
Rapid isolation | Consider ball valves |
Low fully open pressure loss | Evaluate full-port ball valves |
High differential pressure | Verify pressure ratings and specialized trim requirements |
High flow capacity with modulation | Compare characterized ball and globe valve designs |
Frequent operation | Check actuator performance and component durability |
Long-term reliability | Review materials, sealing, and maintenance requirements |
The final selection should balance control performance, installation requirements, and operating costs. No single valve design provides the best results in every application.
Replacing a globe valve with a ball valve may seem attractive. Ball valves often provide compact construction and lower flow resistance. However, replacement requires careful evaluation of the original control duty. A conventional full-port ball valve cannot automatically reproduce a globe valve's throttling characteristics. Its flow response may become difficult to manage at intermediate positions. Adding an actuator does not eliminate this limitation.
Specialized V-port or characterized ball valves provide a possible alternative. Their modified flow passages support more predictable modulation. However, they must match the required flow range and operating conditions.
Before replacement, engineers should verify several factors:
1. Control duty: Confirm whether the valve requires continuous modulation or occasional adjustment.
2. Flow capacity: Compare Cv or Kv values across expected operating positions.
3. Pressure conditions: Evaluate available pressure drop and potential cavitation risks.
4. Actuation: Confirm positioning accuracy, torque requirements, and control compatibility.
5. Sealing: Verify materials, shutoff requirements, and operating temperature limits.
Reducing valve resistance may also affect system control authority. Therefore, a replacement must be evaluated within the complete piping system.
At Kizi, we support valve selection through careful review of pressure ratings, connection types, and sealing requirements. We recommend confirming the intended control duty before replacing a globe valve with a conventional ball valve.
Choosing between a globe valve and a ball valve depends on your flow control requirements. Globe valves provide precise, continuous regulation when higher pressure loss is acceptable. Conventional ball valves offer rapid isolation and efficient flow transmission. Engineered control ball valves can also support applications requiring high flow capacity and accurate modulation. Proper sizing, fluid compatibility, differential pressure, and operating conditions determine long-term performance. Suzhou Kizi Valve Co., Ltd. provides industrial ball valve solutions for reliable pipeline isolation and efficient fluid handling. We help customers select suitable valve configurations based on their specific operating requirements. The best choice delivers consistent performance across the required operating range, not simply maximum flow capacity or faster shutoff.
A: Globe valves generally provide better precision during continuous throttling. A Ball Valve performs better for rapid shutoff and low pressure loss, while specialized designs can support accurate modulation.
A: A standard Ball Valve is not recommended for continuous throttling because partial opening can damage sealing surfaces. V-port designs provide more predictable flow regulation when properly sized.
A: Globe valves create greater resistance through their restricted internal passages. A full-port Ball Valve offers a straighter flow path, reducing pressure loss and improving efficiency during fully open operation.
A: Ball valves are often economical for simple isolation duties. Globe valves may justify higher initial costs when precise control is essential, reducing process instability and unnecessary maintenance.
A: Prolonged partial opening can create high-velocity flow near the valve seats. This may cause erosion, leakage, and unstable regulation, especially under high differential pressure conditions.
