A leaking Ball Valve can waste fluid, reduce pressure, and damage expensive equipment. Even minor leaks may create serious safety risks in industrial systems. The ball and seats control internal flow, while stem packing and body connections prevent external leaks. Internal leakage allows fluid through a closed valve. External leakage releases fluid into the surrounding environment. Finding the exact leakage point is essential for choosing the correct repair. Each failure requires a different approach to restore reliable sealing. This guide explains common leakage causes, practical repair methods, and preventive maintenance. You'll also learn when repairing a valve makes sense and when replacement is necessary.
Finding the exact leakage point is the first step toward an effective repair. Internal and external leaks can produce different symptoms, even when their underlying causes overlap. A careful inspection helps avoid replacing components that still work properly.
Internal leakage occurs when fluid passes through a valve despite its closed position. This problem often indicates damaged seats, trapped particles, or incomplete ball rotation. It may also result from incorrect actuator adjustment or worn operating components.
Common warning signs include:
Unexpected downstream pressure: Pressure increases beyond the closed valve without an intended flow path.
Continued fluid movement: Flow continues after the valve reaches its closed position.
Poor isolation: The system cannot maintain the expected separation between pipeline sections.
Unstable process conditions: Pressure or fluid levels change unexpectedly during isolation.
Before diagnosing seat failure, verify the actual ball position and actuator travel. A handle indicator alone may not confirm complete internal closure. Trapped downstream fluid can also create misleading symptoms during initial checks.
Qualified personnel can perform an approved seat-leakage test under controlled conditions. They should select test pressure and acceptance criteria based on the valve specifications. Some designs permit limited leakage, while others require tighter shutoff performance.
External leakage allows fluid to escape into the surrounding environment. It commonly develops around stem packing, body joints, threaded fittings, or flange gaskets. Visible moisture, staining, or fluid accumulation may indicate the affected location.
However, the first visible droplet does not always identify the true source. Fluid can travel along pipe surfaces before reaching a lower connection. Inspecting surrounding components helps distinguish valve leakage from neighboring pipeline defects.
The following table connects common leakage symptoms to their likely causes.
Leakage Location | Typical Symptoms | Possible Causes |
Internal seats | Flow continues after closure | Damaged seats, debris, incomplete closure |
Stem packing | Fluid escapes around the stem | Worn packing, inadequate compression |
Body joint | Seepage between body sections | Damaged gasket, distorted sealing surfaces |
Threaded connection | Moisture around pipe threads | Damaged threads, improper sealing |
Flanged connection | Leakage around flange edges | Gasket damage, misalignment, uneven bolt loading |
Visual inspection can help identify external leakage in suitable, low-risk conditions. Gas systems may require approved leak-detection equipment instead of simple visual checks. Never touch suspected leaks or loosen connections on pressurized equipment. For hazardous fluids, isolate the affected equipment before performing detailed inspections. Follow the facility's approved safety procedures and involve qualified maintenance personnel.
Several mechanical and operating conditions can reduce a valve's sealing effectiveness. Some problems develop gradually through normal service, while others result from incorrect installation. Understanding these differences helps determine whether cleaning, repair, or replacement is appropriate.

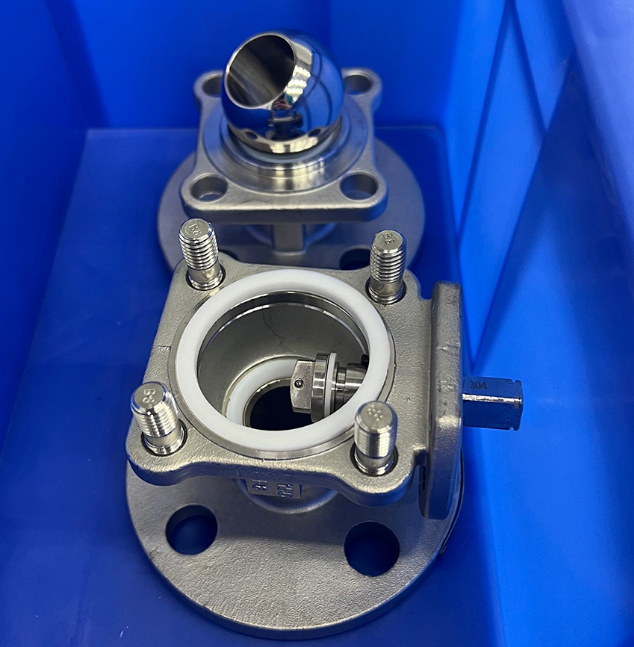

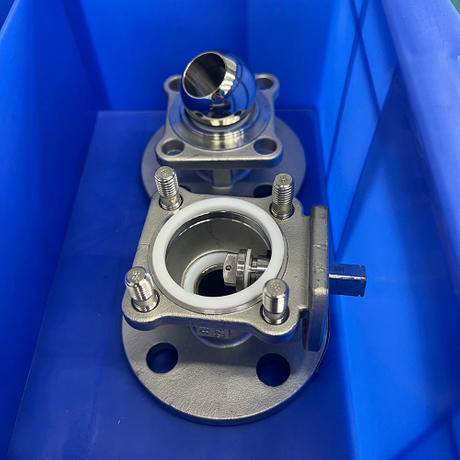

The valve seats create sealing contact against the rotating ball. Their condition directly affects how effectively the valve prevents unwanted fluid movement. Repeated operation can gradually wear these surfaces, especially in abrasive service. Sand, rust, and pipeline scale may become trapped between the ball and seats. These particles can prevent full sealing contact or scratch the components during rotation.
Several forms of damage deserve attention:
Surface scratches: Abrasive particles create small channels that permit fluid passage.
Seat deformation: Excessive loads or temperature exposure change the original sealing shape.
Compression set: Certain soft sealing materials gradually lose their ability to recover.
Chemical degradation: Incompatible fluids weaken or damage sealing materials.
Embedded debris: Hard particles interrupt contact between the ball and seat.
Not every contaminated valve requires replacement. Removing accessible debris may restore sealing performance when the surfaces remain undamaged. However, deep scoring or permanent deformation usually requires component replacement.
Every valve has defined pressure and temperature limits. Operating beyond these limits can damage internal seals or pressure-containing components. Even occasional overloads may reduce long-term reliability. High temperatures can soften certain seat materials or accelerate their deterioration. Low temperatures may reduce flexibility and affect sealing contact. Repeated thermal cycling also creates expansion differences between metal and nonmetal components.
Pressure surges can create additional mechanical stress inside the valve. Water hammer is particularly concerning in liquid systems experiencing sudden flow changes. These forces may affect seats, internal supports, and pipeline connections. External pipe loads can also contribute to leakage. Unsupported piping or poor alignment may distort the valve assembly. Consequently, replacing seals alone may not resolve the underlying mechanical problem.
Installation mistakes can compromise sealing performance before normal operation even begins. Excessive tightening may damage threaded connections or deform sealing components. Poor flange alignment can also create uneven gasket compression. Another frequent problem involves incomplete valve closure. A worn stem connection or incorrectly adjusted actuator may prevent full rotation. The handle may appear closed while the ball remains slightly open.
Operators should also consider how the valve is used. Standard shutoff designs are generally intended for fully open or closed operation. Repeated throttling can increase seat wear under unsuitable operating conditions. Correct installation requires proper pipe support, alignment, and tightening procedures. Actuators must also provide suitable torque and reach their intended positions. These checks help prevent premature leakage from otherwise functional equipment.
The correct repair depends on where leakage occurs and which components have failed. Replacing every seal without identifying the problem can waste time and increase downtime. Before any internal repair, isolate the equipment and verify safe conditions. Depressurize, drain, and decontaminate the system according to site procedures. Never disassemble a valve that may contain trapped hazardous pressure.
Start by checking whether the valve reaches its intended closed position. Examine the actuator settings and operating mechanism for visible problems. Incomplete closure may require adjustment rather than internal component replacement. If the valve closes correctly, inspect its internal sealing surfaces when disassembly is permitted. Look for particles, scratches, cracks, and visible seat deformation.
The following repair sequence provides a practical starting point:
1. Confirm the leakage: Use an approved test to verify internal seat leakage.
2. Check closure: Ensure the ball and actuator reach their correct positions.
3. Inspect sealing surfaces: Examine accessible seats and ball surfaces for damage.
4. Remove contamination: Clean components using approved methods and compatible materials.
5. Replace damaged parts: Install suitable replacement seats when the design permits servicing.
6. Verify performance: Reassemble and conduct the required leakage tests.
Some designs allow individual seats to be replaced. Others may require extensive disassembly or complete valve replacement. Avoid forcing the handle when the valve fails to seal. Excessive torque can damage stems, actuators, or internal components. It may also turn a repairable problem into a more serious failure.
Stem leakage commonly results from worn packing or insufficient packing compression. Certain designs allow controlled gland adjustment to restore sealing performance. However, adjustment limits depend on the valve construction.
Excessive tightening can create additional friction and increase operating torque. It may also damage packing materials or the stem surface. Follow the manufacturer's instructions before making any adjustment.
If adjustment cannot restore sealing, replacement may become necessary. Inspect the stem for corrosion, scratches, and other surface defects. New packing may fail quickly when the underlying stem remains damaged.
Body joint leakage usually involves gaskets, sealing faces, or connection fasteners. During an approved shutdown, inspect these components for damage and distortion. Replace defective gaskets using materials suitable for the operating medium.
Reassemble the joint using the specified tightening sequence and torque values. Uneven loading can damage new gaskets or create another leakage path. Complete the required pressure and sealing tests before returning the equipment to service.
Threaded connections can leak when sealing materials fail or threads become damaged. Misalignment and excessive tightening may also prevent proper sealing. During a controlled repair, inspect the threads for wear and deformation. Replace damaged components rather than relying on additional sealant to hide defects. Apply only approved sealing materials using the specified installation method.
Flanged connections require a different approach. Their performance depends on gasket condition, flange alignment, and bolt loading. Inspect the gasket and sealing faces during disassembly. Replace damaged materials and correct any alignment problems before reassembly. Use the specified bolt-tightening procedure to achieve appropriate gasket compression.
Simply tightening a leaking flange is not always a safe solution. Additional loading may worsen distortion or damage existing components. After repairs, perform suitable leakage testing under approved conditions. Confirm acceptable sealing performance before restarting normal operation.
Repairing a leaking valve is not always the most economical or reliable decision. The choice depends on component condition, valve construction, and operating requirements. A repair may restore reliable operation when damage affects replaceable sealing parts. Complete replacement becomes more appropriate when structural damage or repeated failures compromise safety.
Repair is often reasonable when the valve body remains sound and replacement parts are available. Serviceable components may include stem packing, seats, body gaskets, and connection seals.
Consider these factors before approving a repair:
Component condition: The pressure-containing body and internal surfaces remain suitable for continued service.
Parts availability: Compatible replacement seals or components are accessible.
Maintenance access: The valve can be safely isolated, removed, or serviced.
Repair cost: Parts and labor remain reasonable compared with replacement.
Performance requirements: The repaired assembly can meet its required leakage criteria.
Valve construction also affects maintenance feasibility. Some multi-piece designs provide easier access to internal components. However, serviceability must be confirmed for the specific model. A successful repair should restore more than visible sealing. It must also preserve proper operation and required pressure integrity.
Complete replacement may be necessary when structural damage affects the valve's integrity. Cracked pressure-containing bodies should be removed from service rather than repaired through routine maintenance. Severely damaged balls or sealing surfaces may also make repairs impractical. Repeated failures deserve additional investigation before installing another identical valve.
The following table summarizes common maintenance decisions.
Valve Condition | Recommended Action |
Worn, replaceable packing | Replace packing and verify sealing |
Removable debris on seats | Clean, inspect, and retest |
Damaged, replaceable seats | Replace approved components |
Severely scored ball | Assess component or complete replacement |
Cracked pressure-containing body | Remove from service and replace |
Repeated leakage after repairs | Investigate operating conditions and consider replacement |
Replacement should address the reason the original valve failed. Installing an identical design without correcting operating problems may repeat the failure. For critical isolation duties, safety and leakage requirements should guide the final decision.
Preventing leakage usually costs less than repairing a failed valve. Good prevention begins before installation and continues throughout the equipment's service life. Material compatibility, suitable operating limits, and routine inspections all contribute to reliable sealing.
Choosing a suitable valve requires more than matching its nominal pipe size. The body material, seat design, pressure rating, and connections must suit the application. Soft-seated designs can provide tight shutoff under appropriate conditions. However, their sealing materials have specific temperature and chemical limitations. Metal-seated designs may suit more demanding environments, although acceptable leakage levels can differ.
Consider the following selection requirements:
Operating pressure: Verify the complete valve's pressure-temperature rating.
Temperature range: Select sealing materials suitable for expected operating extremes.
Fluid compatibility: Confirm resistance to chemicals and process media.
Particle contamination: Consider abrasive wear and possible seat damage.
Connection design: Match threaded or flanged ends to installation requirements.
Sealing expectations: Define acceptable leakage based on the isolation duty.

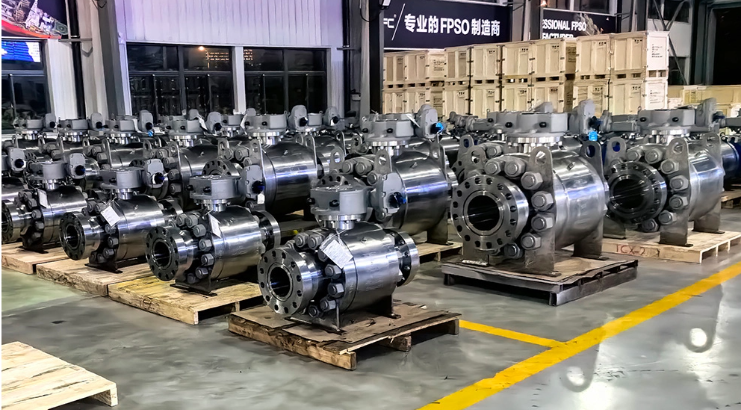

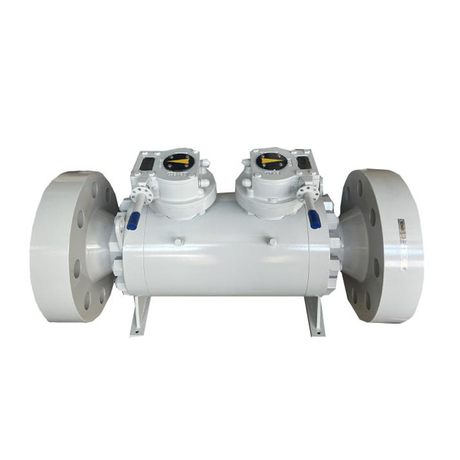

At KIZI, we offer ball valve solutions for different industrial operating requirements. Our product range includes threaded, flanged, trunnion-mounted, and other specialized configurations. We help customers evaluate materials and sealing structures for their applications. Correct selection reduces the likelihood of premature deterioration. However, even a suitable valve requires proper installation and maintenance.
Regular inspections help detect developing leakage before it causes major problems. Maintenance frequency should reflect operating conditions, fluid characteristics, and service requirements. Operators should examine accessible stem areas, body joints, and pipeline connections. Unexpected moisture, corrosion, or staining may indicate deteriorating sealing performance.
A practical maintenance program should include:
1. External inspection: Check accessible components for leakage and visible deterioration.
2. Functional verification: Confirm correct valve and actuator operation using approved procedures.
3. Leakage testing: Perform appropriate tests according to service requirements and maintenance schedules.
4. Contamination control: Maintain suitable filtration and remove harmful pipeline debris when necessary.
5. Operating review: Check for pressure surges, temperature excursions, and excessive cycling.
6. Maintenance records: Document failures, repairs, test results, and recurring symptoms.
Personnel should avoid unnecessary force during valve operation. They should also follow approved procedures for exercising valves in service. Improper operation can accelerate wear or create additional mechanical damage.
Maintenance records can reveal patterns that individual inspections overlook. For example, repeated seat damage may indicate persistent contamination upstream. Frequent gasket failures may suggest pipe alignment or operating stress problems. Addressing these underlying issues helps extend service life and reduce unplanned shutdowns.
Fixing ball valve leakage starts with identifying the exact source of the problem. Internal leaks often involve damaged seats, while external leaks usually affect packing or gaskets. Minor sealing problems may require simple repairs or component replacement. However, severe damage or repeated leakage can indicate deeper installation or operating issues. Regular inspections, proper maintenance, and suitable valve selection help prevent future failures. Always verify sealing performance after completing approved repairs. Suzhou Kizi Valve Co., Ltd. provides reliable ball valve solutions for various industrial applications. Our products offer suitable sealing configurations and durable construction to support dependable fluid control. We help customers select appropriate valves for their operating requirements.
A: A Ball Valve may leak because of damaged seats, trapped debris, or incomplete closure. Check the actuator position and inspect internal sealing surfaces to identify the cause.
A: First, identify the leakage location and safely isolate the equipment. A leaking Ball Valve may require cleaning, packing adjustment, seal replacement, or complete replacement, depending on the damage.
A: Stem leakage usually results from worn packing, damaged seals, or improper gland compression. Inspect the stem surface and replace defective components if approved adjustments cannot restore sealing.
A: Yes, a Ball Valve can often be repaired by replacing damaged packing, seats, or gaskets. However, severe corrosion, body cracks, or extensive internal damage usually require replacement.
A: Repair costs depend on valve size, design, replacement parts, and labor requirements. Simple packing repairs generally cost less than replacing damaged seats or installing a new valve.
