Industrial liquid processing relies on predictable, uninterrupted flow. Efficiently removing suspended solids, sediment, and debris forms the operational baseline for any facility handling fluids. Selecting an improperly sized or materially incompatible filtration system causes severe operational headaches. You risk premature media blinding, excessive pressure drops, frequent maintenance downtime, and compromised downstream product quality. We evaluate how to specify a bag filter strainer based on flow rate demands, chemical compatibility, and maintenance realities. You must match bag materials to specific fluids, calculate accurate sizing for viscous liquids, and implement predictive changeout schedules. This ensures reliable, highly effective filtration across your entire process line without unnecessary operational interruptions.
Sizing a bag filter strainer requires balancing maximum flow rate with the fluid's viscosity and expected particulate load to prevent rapid differential pressure (Delta P) increases.
Industrial bag filters utilize an inside-out flow path, ensuring that all captured contaminants remain trapped inside the media for clean, efficient disposal.
Bag material selection (e.g., polypropylene felt vs. nylon mesh) dictates chemical compatibility, temperature limits, and retention efficiency, directly impacting operational expenditure.
A single bag filter housing is cost-effective for batch processing, while continuous operations require duplex or multi-bag configurations to mitigate changeout downtime.
Predictable changeout schedules depend on accurate micron rating selection and monitoring differential pressure gauges rather than relying on visual inspection or arbitrary timelines.
Understanding the fluid dynamics within a housing is the first step in system selection. Contaminated fluid enters the housing through the inlet port and is directed downward into the top of the filter bag. The fluid then pushes through the fabric wall from the inside to the outside. This inside-out flow path serves a highly specific mechanical purpose. It forces all suspended solids, debris, and particulate matter to remain trapped within the physical cavity of the bag itself.
When the media reaches its maximum dirt-holding capacity, operators simply remove the bag. The captured contaminants lift out simultaneously, preventing the internal walls of the metal housing from accumulating sludge. This mechanism drastically reduces the time required to clean the vessel during media changeouts. It also prevents cross-contamination between different fluid batches, which is a common issue in systems where dirty fluid contacts the outer housing walls first. In heavy industrial applications like machining coolant recovery or wastewater treatment, this self-contained dirt removal saves hours of manual scrubbing.
Engineers rarely deploy a single filtration technology to handle an entire process stream. Instead, they use a liquid filtration strainer as a strategic primary pre-filter. This unit sits upstream of highly sensitive, expensive process equipment. Its primary job is to capture heavy sediment, large particulate spikes, and abrasive debris before they can travel further down the piping network.
By intercepting this bulk contamination early, the pre-filter protects reverse osmosis (RO) membranes from physical gouging and premature fouling. It shields fine pleated cartridge filters from rapid blinding, extending their operational lifespan significantly. Furthermore, it prevents abrasive metal shavings or hard particulates from destroying the internal seals and impellers of precision metering pumps. Investing in a robust pre-filtration stage lowers the overall consumable replacement frequency for the entire facility.
Certain process conditions make bag filtration the undisputed optimal choice. These systems excel in applications demanding high dirt-holding capacity. If a fluid stream contains a large volume of suspended solids, a bag provides the necessary physical space to capture and hold that mass without instantly choking the flow.
They also dominate in batch processing environments. When a facility processes distinct batches of chemicals, coatings, or food products, operators can quickly swap bags between runs to prevent cross-contamination. Semi-continuous processes experiencing variable particulate loads also benefit. If an upstream process occasionally releases a surge of debris, the large surface area of the bag absorbs the spike without triggering an immediate system shutdown.
Selecting between bags and cartridges requires analyzing the nature of the contaminant and the required flow rates. Cartridges typically offer depth filtration with massive surface areas pleated into a small diameter, making them ideal for sub-micron capture. Bags provide surface and depth filtration but focus on higher flow rates and larger particulate capture.
Feature | Bag Filtration | Cartridge Filtration |
|---|---|---|
Filtration Mechanism | Inside-out flow. Captures debris inside the media. | Outside-in flow. Captures debris on the outer surface/depth. |
Dirt Holding Capacity | Exceptionally high for bulk, large particulates. | High for fine, sub-micron particulates. |
Changeout Speed | Very fast. One large bag replaces easily. | Slower. Multi-round housings require swapping dozens of cartridges. |
Viscosity Handling | Excellent for thick fluids like resins and paints. | Poor for high viscosity; pleats collapse under pressure. |
Target Micron Range | 1 to 1000 microns. | 0.1 to 100 microns. |
Facilities handling massive, continuous flow rates often evaluate automatic self-cleaning strainers against traditional bag housings. The decision hinges entirely on the balance between capital expenditure and operational expenditure. Automatic strainers require a significant upfront capital investment. They incorporate complex mechanical scrapers, backwash valves, and electronic control panels. This complexity introduces new maintenance requirements, as moving parts eventually wear out and require specialized servicing.
Conversely, bag housings represent a very low capital expenditure. They contain zero moving parts, relying entirely on fluid pressure and static media. The trade-off is operational expenditure. Bag systems require manual labor to physically replace the media, and facilities must purchase consumable bags continuously. For processes where capital budgets are tight, or where the fluid contains sticky, fibrous materials that would foul an automatic scraper mechanism, static bag housings remain the superior choice.
You can confidently specify a bag system when your project meets specific criteria. First, the project faces strict budget constraints on capital equipment, making expensive automated systems unviable. Second, the facility has maintenance personnel readily available to perform rapid media swaps when differential pressure rises. Third, the process fluid primarily contains non-deformable solids, heavy sludge, or variable debris spikes that require bulk removal rather than absolute sub-micron polishing.

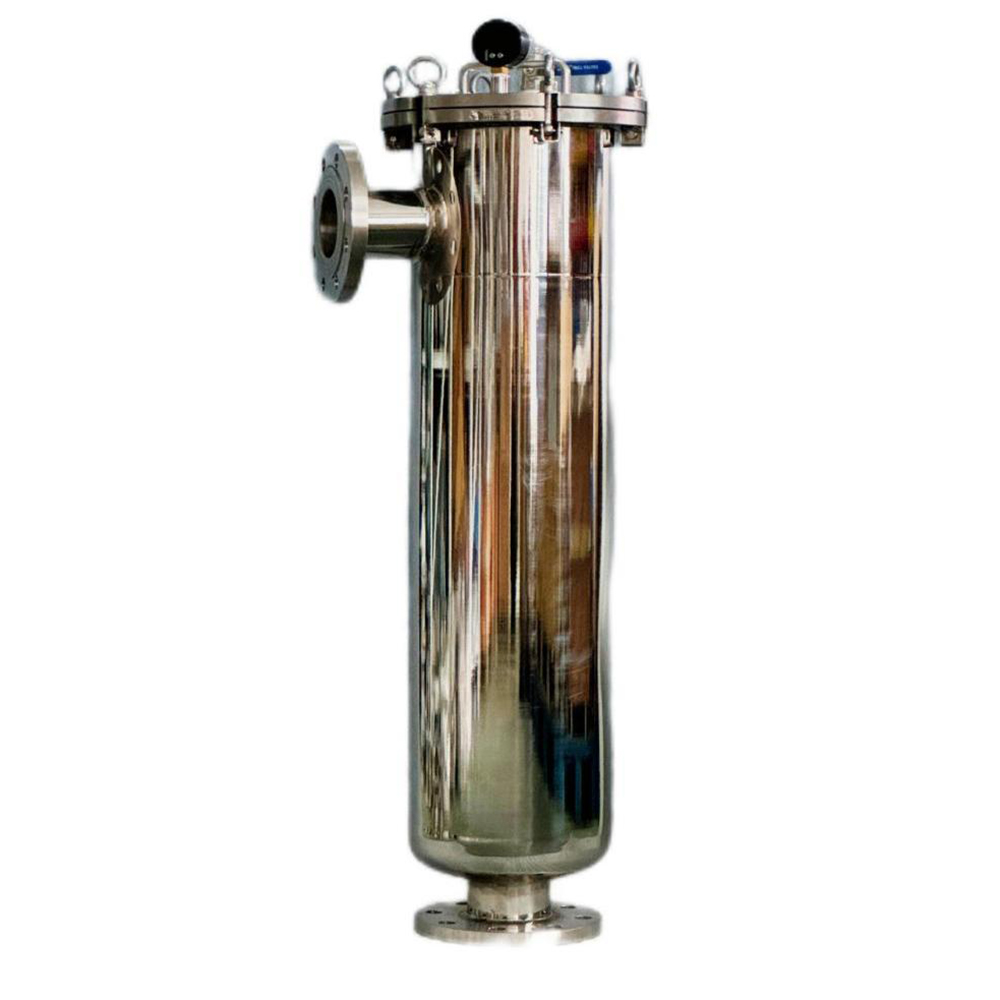

A single bag filter housing represents the most straightforward approach to liquid clarification. These units consist of one pressure vessel containing a single restrainer basket and one filter bag. They feature a compact footprint, making them easy to integrate into tight piping layouts or skid-mounted mobile systems.
These housings excel in specific applications. Lower flow rates perfectly match the capacity of a single vessel. Point-of-use filtration, where a filter sits immediately before a dispensing nozzle or filling machine, frequently utilizes single housings. Batch processes also align well with this design. Since a batch process naturally stops between runs, operators have ample time to open the housing, inspect the interior, and replace the bag without impacting production schedules.
However, operators must acknowledge the operational limitations. When a single housing reaches its terminal differential pressure, the flow must stop. Maintenance personnel must shut down the upstream pump, close isolation valves, and depressurize the line before opening the lid. Unless engineers design a bypass loop into the piping infrastructure, this maintenance event completely halts fluid transfer.
Continuous operations cannot tolerate the downtime associated with single vessel maintenance. Duplex systems solve this problem by piping two identical housings together in parallel. A central manifold connects the inlets and outlets, utilizing a specialized diverter valve or a series of synchronized butterfly valves.
During normal industrial liquid filtration, fluid flows through one housing while the second remains offline on standby. When the active housing reaches terminal differential pressure, an operator turns the diverter valve. This action seamlessly redirects the fluid flow into the clean standby housing. Production continues uninterrupted. The operator then depressurizes the dirty housing, replaces the bag, and leaves it on standby for the next cycle.

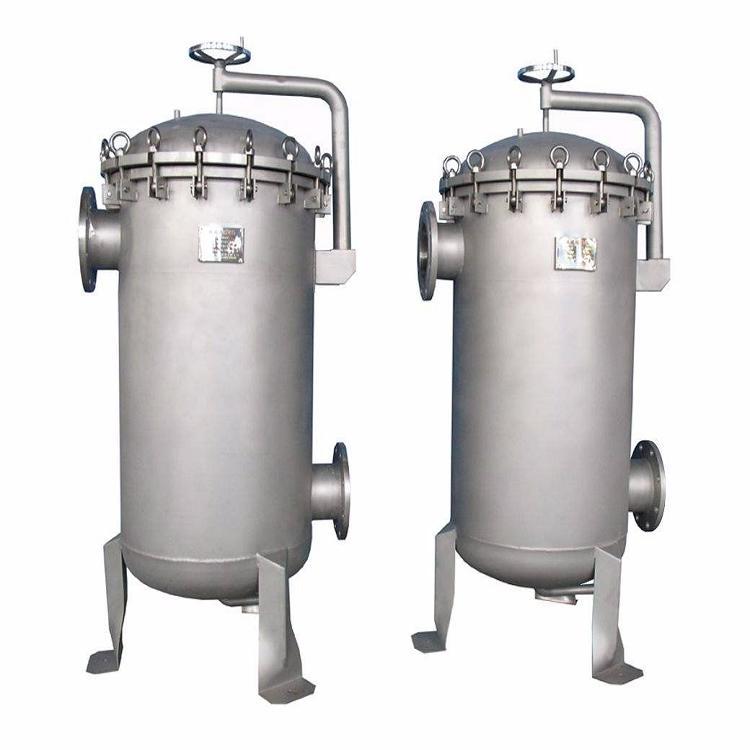

For applications involving exceptionally high flow rates or massive particulate loads, multi-bag housings provide the necessary capacity. These large vessels hold anywhere from two to over twenty bags within a single consolidated footprint. Instead of piping dozens of individual housings together, a multi-bag vessel simplifies the piping infrastructure. When planning a multi-bag installation, engineers must carefully consider the manifold design to ensure even flow distribution across all internal bags. Poor flow distribution causes some bags to blind rapidly while others remain clean, defeating the purpose of the high-capacity vessel.
The fabric material directly dictates how the filter captures contaminants. Selecting the wrong media type leads to rapid blinding or complete failure to capture the target debris.
Needle-Punched Felt (Polypropylene, Polyester): Manufacturers create felt by mechanically interlocking synthetic fibers using barbed needles. This creates a dense, three-dimensional matrix. Felt provides true depth filtration. As fluid passes through the tortuous path of the fibers, particles become trapped throughout the depth of the material, not just on the surface. Felt offers high dirt-holding capacity and excels at capturing deformable particles like gels, organic matter, and soft sludges. It provides non-absolute retention, meaning it captures a high percentage of particles at its rated size, but some may pass through.
Monofilament/Multifilament Mesh (Nylon, Stainless Steel): Mesh media consists of woven threads creating precise, geometric pores. This provides strict surface filtration. All particles larger than the pore size stop on the surface of the mesh, while smaller particles pass through easily. Mesh excels at capturing hard, non-deformable suspended solids, heavy sediment, or machining chips. Because the contaminants sit on the surface, operators can often wash and reuse mesh bags, reducing consumable costs.
High-Efficiency/Melt-Blown Microfibers: For applications requiring near-absolute retention, manufacturers layer melt-blown microfibers into the bag construction. These bags deliver exceptional efficiency, often capturing 99% of particles at their rated size. Facilities use them to meet strict compliance standards in food, beverage, or pharmaceutical pre-filtration. Additionally, specific microfiber blends offer oil adsorption capabilities, pulling trace hydrocarbons out of aqueous streams.
A filter housing and its media must survive the chemical and thermal realities of the process fluid. Fluid-to-media matching is a non-negotiable engineering step. You must match the filter fabric, the bag's sealing ring, and the housing's elastomers (O-rings and gaskets) to the fluid chemistry.
For example, polypropylene offers excellent resistance to strong acids and alkalis, making it a staple in chemical processing. However, it degrades in the presence of certain aromatic hydrocarbons. Polyester handles many solvents well but quickly breaks down in high-alkaline solutions. You must consult a comprehensive chemical compatibility chart before specifying any material.
Material | Max Temperature | Acid Resistance | Alkali Resistance | Solvent Resistance |
|---|---|---|---|---|
Polypropylene | 200°F (93°C) | Excellent | Excellent | Fair |
Polyester | 300°F (149°C) | Good | Poor | Excellent |
Nylon | 300°F (149°C) | Poor | Excellent | Excellent |
PTFE (Teflon) | 500°F (260°C) | Excellent | Excellent | Excellent |
Thermal limits also dictate material selection. Standard polypropylene felt safely operates up to approximately 200°F. If your process fluid exceeds this temperature, polypropylene will soften, stretch, and eventually rupture under pressure. Polyester extends the thermal limit to roughly 300°F. For extreme heat applications, such as hot cooking oils or high-temperature steam condensates, you must transition to specialized materials like PTFE or woven stainless steel mesh.
Understanding how manufacturers rate their media prevents costly specification errors. The industry uses two distinct rating methodologies: nominal and absolute.
A nominal rating indicates the average particle capture capability of an industrial bag filter. If a felt bag carries a 10-micron nominal rating, it will capture a large percentage of particles that are 10 microns and larger. However, it does not guarantee that every single 10-micron particle will be stopped. Nominal bags are highly effective workhorses for bulk clarification where absolute purity is not required.
An absolute rating provides a strict performance guarantee. An absolute-rated 10-micron bag will capture 98% to 99.9% of all particles 10 microns and larger. These bags cost significantly more and are reserved for critical applications protecting highly sensitive downstream equipment.
Engineers frequently face the risk of over-specifying. Choosing an unnecessarily tight micron rating creates immediate operational problems. The tight media blinds rapidly, restricting flow and causing differential pressure to spike. This forces maintenance teams to change bags constantly, driving up consumable usage and labor hours without providing any tangible benefit to the process.
The filtration industry relies on standardized bag dimensions to ensure compatibility across different housing manufacturers. These sizes dictate the available surface area, which directly determines the baseline flow capacity of the vessel.
Size 1: Measures roughly 7 inches in diameter by 16 inches long. It provides approximately 2.0 square feet of surface area.
Size 2: Measures roughly 7 inches in diameter by 32 inches long. It provides approximately 4.4 square feet of surface area. This is the most common size in industrial applications.
Size 3: Measures roughly 4 inches in diameter by 8 inches long. Used for very low flow or pilot-scale applications.
Size 4: Measures roughly 4 inches in diameter by 14 inches long. Used for low flow applications with limited space.
When designing a system, engineers must balance capacity against ergonomics. A single Size 2 bag handles double the flow of a Size 1 bag and requires less piping footprint than two Size 1 housings. However, a Size 2 bag fully loaded with dense, wet sludge can weigh over 40 pounds. Maintenance personnel must physically lift this dead weight vertically out of the housing. If the fluid is exceptionally dense, specifying multiple Size 1 housings might be safer and more ergonomic for the workforce, despite the larger footprint.
Baseline flow capacities published by manufacturers always assume the fluid is water at ambient temperature. Industrial processes rarely handle pure water. Fluid viscosity drastically alters the maximum allowable flow rate through a given bag size.
As viscosity increases, the fluid resists flowing through the small pores of the media. Pushing thick fluids like resins, syrups, or heavy lubricating oils through a bag requires significantly more pressure. If you attempt to push a 1000 cps resin through a housing at the water-rated flow rate, the differential pressure will instantly spike, potentially rupturing the bag. You must apply derating calculations. A housing rated for 100 GPM on water might only handle 15 GPM when processing a high-viscosity coating.
Calculating the necessary surface area to flow ratio ensures the system starts with a low initial differential pressure. Maintaining a low internal velocity prevents the fluid from forcing soft, deformable particles completely through the depth of the felt media. High velocity degrades media performance and shortens the operational lifespan.
Differential pressure (Delta P) is the difference in pressure between the inlet and the outlet of the filter housing. It is the most critical metric for monitoring system health. As the bag captures particulate, the open pores become blocked. The fluid must squeeze through fewer openings, causing resistance to increase. The inlet pressure rises while the outlet pressure drops.
This flow restriction directly impacts energy consumption. As Delta P increases, the upstream pump must work harder to maintain the desired flow rate. This pump strain draws more electrical current and accelerates wear on the pump's internal components. Allowing a filter to run at excessively high Delta P wastes energy and risks mechanical failure.
Operators must establish strict baselines. When installing a clean bag, record the initial Delta P. Then, set a strict terminal Delta P for safe changeouts. Industry standards typically recommend changing the bag when the Delta P reaches 15 to 20 PSI above the clean baseline. Pushing the bag beyond this limit drastically increases the risk of the bag rupturing and dumping all captured contaminants downstream.
A filtration system is only as effective as its weakest seal. If contaminated fluid bypasses the media and flows directly into the clean outlet stream, the entire installation fails its primary objective. The bag sealing mechanism plays a critical role in preventing this bypass.
Traditional bags utilize a steel snap-ring sewn into the top collar. The operator compresses the ring, inserts it into the housing, and allows it to snap outward against a metal support lip. While functional, steel rings can warp, and the fabric surrounding them can allow trace amounts of fluid to slip past. Modern high-performance bags utilize plastic flanges with molded positive seals. These flanges feature specialized profiles that compress tightly against the housing interior when the lid closes. The fluid pressure actually forces the plastic seal tighter against the metal, completely eliminating contaminant bypass.
Inside the housing, heavy-duty restrainer baskets are mandatory. The fabric bag possesses very little structural integrity on its own. As differential pressure builds, the fluid pushes outward with immense force. The perforated metal restrainer basket supports the media, preventing it from ballooning outward and bursting. Operating a housing without a properly fitted restrainer basket guarantees immediate bag blowout.
Maintenance realities dictate the long-term success of any filtration installation. If changing a bag requires two mechanics, heavy tools, and an hour of downtime, operators will avoid doing it until the system completely fails. Housing design features directly reduce maintenance risks and improve ergonomics.
Specify housings with davit covers or spring-assisted lids. A solid steel lid on a Size 2 housing is heavy and dangerous to lift manually. Mechanical assists allow one operator to swing the lid open safely. Fluid displacement balloons are another valuable tool. Dropping a sealed balloon into the dirty bag displaces the liquid, pushing it out of the housing before the operator lifts the bag. This significantly reduces the weight of the bag and prevents hazardous process fluids from splashing onto the maintenance worker.
To ensure safe and efficient maintenance, operators should follow a strict changeout sequence:
Verify the differential pressure gauge indicates the bag has reached its terminal limit.
Shut down the upstream pump or divert flow to the standby housing in a duplex system.
Close the inlet and outlet isolation valves to isolate the dirty housing.
Open the vent valve at the top of the housing to relieve all internal pressure.
Open the drain valve at the bottom to evacuate the remaining fluid.
Safely open the housing lid using the mechanical davit assist.
Remove the dirty bag, inspect the restrainer basket for damage, and insert the new bag.
Secure the lid, close the drain, and slowly open the inlet valve to bleed air through the vent before returning to service.
Audit your current fluid parameters, recording maximum flow rate, operating temperature, and fluid viscosity in centipoise.
Cross-reference your process chemicals against a certified material compatibility chart to select the correct housing elastomers and bag media.
Install differential pressure gauges on all existing filter housings to establish accurate baseline and terminal pressure readings.
Consult with a filtration engineer to run a small-scale pilot test or fluid analysis to confirm micron rating accuracy before full-scale procurement.
A: The industry relies on four standard sizes. Size 1 (7x16 inches) and Size 2 (7x32 inches) are the most common for industrial flows. Size 3 (4x8 inches) and Size 4 (4x14 inches) handle low-flow or space-constrained applications. Choose the size based on your required flow rate, fluid viscosity, and the physical lifting limits of your maintenance personnel.
A: Standard flow capacities assume water-like viscosity. For thicker fluids, you must apply a derating factor. High viscosity increases resistance, causing rapid pressure drops. You must increase the surface area by selecting a larger bag or multiple housings to maintain low internal velocity and prevent premature media blinding.
A: An inside-out flow path forces the contaminated fluid into the center of the bag, pushing outward. This traps all suspended solids and debris inside the fabric cavity. When you remove the bag, the dirt comes out with it, keeping the interior of the metal housing clean and minimizing maintenance time.
A: A nominal rating indicates the media captures an average percentage of particles at that size, making it suitable for bulk clarification. An absolute rating guarantees the capture of 98% to 99.9% of particles at that specific size, providing strict protection for highly sensitive downstream equipment.
A: It depends on the media. Monofilament or multifilament mesh bags capture hard, non-deformable debris on their surface, allowing operators to wash and reuse them safely. Needle-punched felt bags utilize depth filtration, trapping particles deep within the fibers. Attempting to wash felt bags usually forces dirt deeper, rendering them unusable.
A: Ruptures occur when differential pressure exceeds the structural limit of the fabric, usually due to ignoring changeout schedules or pushing high-viscosity fluids too fast. Prevent ruptures by strictly changing bags at 15-20 PSI differential pressure, ensuring the metal restrainer basket is installed correctly, and properly sizing the system for viscosity.
