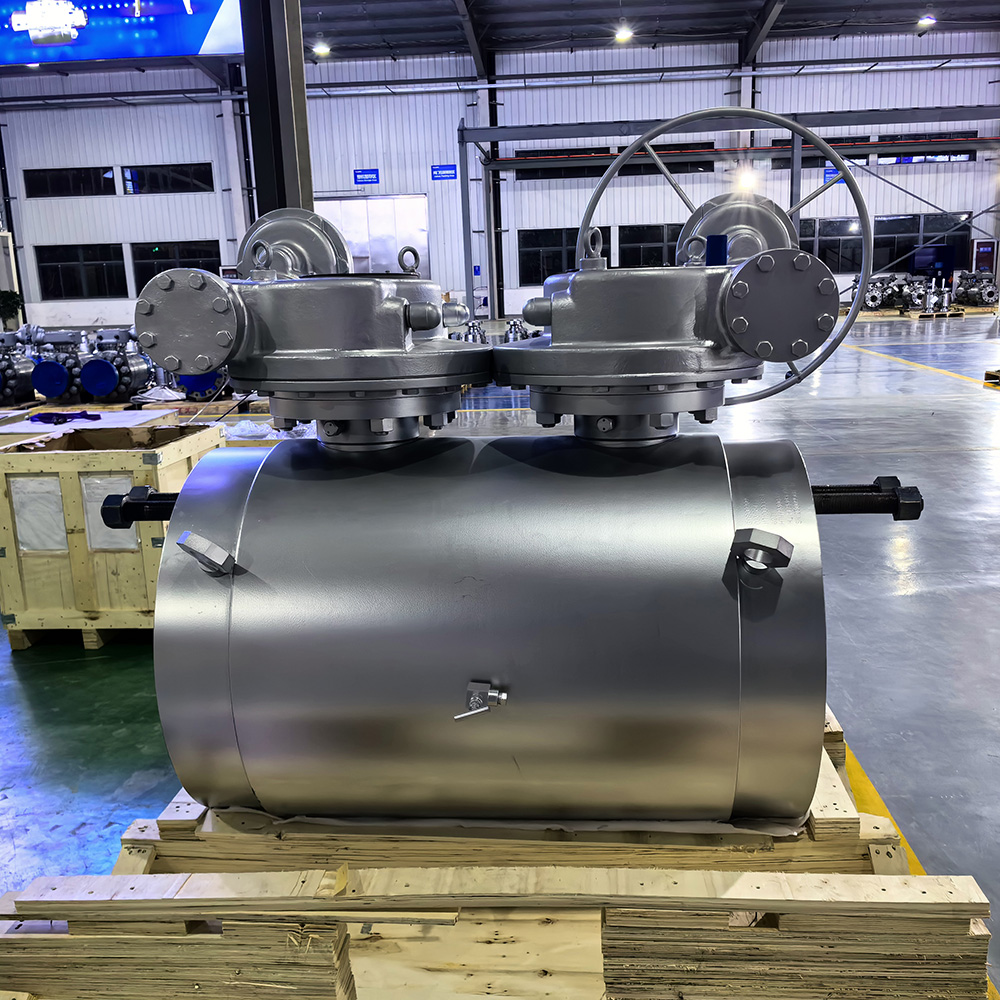

Large-scale Engineering, Procurement, and Construction (EPC) projects face constant schedule pressures and strict budget constraints. Valves usually make up 5% to 15% of total material costs. Yet, they cause a disproportionate number of commissioning delays and safety incidents on site. Misaligned technical specifications, missing vendor documentation, and failed factory acceptance tests routinely derail project timelines. Procurement teams struggle to balance strict capital expenditure limits with engineering compliance. This often leads to compromises that only surface during site hydro-testing or initial plant start-up.
A standardized, evidence-based procurement framework bridges the gap between engineering requirements and supply chain realities. We use this structured methodology for technical bid evaluation, quality assurance, and vendor risk mitigation throughout the entire EPC procurement lifecycle. By enforcing technical standards and demanding transparent manufacturing processes, project teams eliminate ambiguities, prevent rework, and keep construction schedules on track.
Standardization is Non-Negotiable: Strict adherence to API valve standards and project-specific Material Requisitions (MR) prevents costly deviations during the Technical Bid Evaluation (TBE) phase.
Verification Over Trust: Robust Inspection and Test Plans (ITP), including mandatory valve pressure testing, PMI, and NDE/NDT, are critical to validating manufacturer claims before site delivery.
Documentation Equals Compliance: Missing Material Test Certificates (MTCs) or incomplete vendor data can halt commissioning just as easily as a physical mechanical failure.
Lifecycle Value Over Initial Cost: Evaluating vendors based on their valve after-sales service, site support, and warranty terms mitigates long-term operational risks and protects EPC margins.
Ambiguous Material Requisitions (MR) lead to vendor assumptions. This results in technical deviations that require time-consuming clarification cycles during the RFx management phase. When engineering specifications lack precision, manufacturers quote standard off-the-shelf products. These standard items often fail to withstand the specific corrosive environments or high-pressure conditions of the intended application. A highly detailed MR serves as the foundational document dictating all subsequent procurement, manufacturing, and testing activities.
Mapping project specifications to international standards is the first step in valve procurement. Engineers must clearly delineate design codes, pressure-temperature ratings, and testing requirements to ensure structural integrity. Adherence to API valve standards provides a universally recognized baseline for design and performance. For instance, API 600 governs steel gate valves for refineries, while API 6D covers pipeline valves. Beyond basic design, the MR must specify fire-safe testing requirements, such as API 607 or API 6FA. These certify that a valve maintains pressure boundary integrity during a hydrocarbon fire. Environmental regulations increasingly demand strict fugitive emission limits. You must require compliance with ISO 15848-1 to prevent volatile organic compounds from escaping through the valve packing.
Capturing exact operational metrics is mandatory for specific valve types, particularly safety relief and control valves. Procurement teams must ensure the MR explicitly defines the required flow capacity (Cv), relieving conditions, allowable pressure drops, and back pressure limits. Control valves improperly sized for the process conditions suffer from cavitation, flashing, or choked flow. This leads to rapid trim degradation and erratic process control. Safety relief valves require precise calculations regarding superimposed and built-up back pressure. This guarantees they open at the correct set point and achieve full lift. Providing vendors with comprehensive fluid data—including specific gravity, viscosity, and operating temperature ranges—ensures accurate sizing and selection.
Matching body and trim materials to the process fluid, operating temperature, and corrosive environments ensures long-term reliability. Standard carbon steel (ASTM A216 WCB) or austenitic stainless steel (ASTM A351 CF8M) works for utility services. Aggressive media demand specialized metallurgy. For sour gas applications containing hydrogen sulfide, materials must strictly comply with NACE MR0175/ISO 15156 to prevent sulfide stress cracking. Procurement teams must evaluate the trade-offs between standard materials and exotic alloys like Duplex stainless steel, Monel, or Inconel. Exotic alloys offer superior corrosion resistance but introduce longer lead times and require specialized welding procedures.
Material Type | Common Grades | Typical Application Environment | Procurement Lead Time Impact |
|---|---|---|---|
Carbon Steel | ASTM A216 WCB / LCC | Standard utility services, non-corrosive hydrocarbons, steam, and water. | Short (Readily available from most foundries) |
Austenitic Stainless Steel | ASTM A351 CF8M (316SS) | Mildly corrosive environments, low-temperature services, and general chemical processing. | Short to Medium |
Duplex / Super Duplex | ASTM A890 Grade 4A / 5A | High chloride environments, offshore platforms, and severe sour gas (H2S) applications. | Long (Requires specialized casting and heat treatment) |
Nickel Alloys | Inconel 625, Monel 400 | Extreme high-temperature services, highly acidic media, and severe erosive conditions. | Very Long (High raw material cost and limited foundry capacity) |
Automated valves represent a complex integration of mechanical, electrical, and pneumatic systems. The MR must clearly define the solution categories required: pneumatic, hydraulic, electric, or electro-hydraulic actuators. Failure to specify parameters such as fail-safe positions (Fail Open, Fail Close, or Fail Last) leads to process failures during a power loss. Safety Instrumented Systems require valves and actuators with specific Safety Integrity Level (SIL) certifications. The integration protocols for limit switches, positioners, and solenoid valves—whether HART, Foundation Fieldbus, or Modbus—must be explicitly stated. This ensures communication with the plant's Distributed Control System.
Selecting a vendor based solely on the lowest commercial bid introduces execution risks if their manufacturing capacity, schedule reliability, or quality control is deficient. The Technical Bid Evaluation (TBE) phase must filter out suppliers who cannot substantiate their technical claims or demonstrate a proven track record in similar EPC environments. A rigorous qualification process protects the project timeline and ensures the final installed equipment meets all engineering specifications.
Verifying the vendor's Approved Vendor List (AVL) status with the end-user or operator is a mandatory preliminary step. AVL inclusion alone does not guarantee current manufacturing competence. Procurement teams must request detailed reference lists for similar applications. Focus on identical valve types, sizes, and pressure classes installed in comparable process conditions. Conducting facility capacity audits provides physical evidence of the vendor's capabilities. Auditors evaluate the condition of CNC machining centers, the capacity of heavy lifting equipment, and the sophistication of the testing bays. Reviewing the current shop floor backlog determines if the vendor has the bandwidth to absorb the new EPC order without compromising delivery dates.
A structured TBE process prevents subjective decision-making and ensures all vendors are evaluated against the exact same engineering baseline. Procurement and engineering teams must follow a strict sequence of events to normalize the bids.
Receive and log all vendor technical proposals against the initial Material Requisition.
Perform a line-by-line compliance check to identify any deviations from the specified design codes and materials.
Issue Technical Clarification (TQ) documents to vendors for any ambiguous data or missing performance curves.
Evaluate the proposed sub-vendors for raw castings, forgings, and actuators against the project's Approved Vendor List.
Quantify the schedule impact of any proposed alternative manufacturing locations or testing facilities.
Compile the final technical scoring matrix and issue the formal technical acceptance or rejection to the commercial procurement team.
Cross-referencing vendor-quoted lead times against the EPC project's critical path prevents scheduling conflicts that delay mechanical completion. Procurement managers identify potential supply chain bottlenecks, particularly for raw castings and forgings sourced from sub-tier suppliers. Exotic alloy castings require extended lead times and are susceptible to high rejection rates during initial non-destructive examination. Establishing milestone-based progress reporting allows the EPC contractor to predict actual delivery performance rather than relying on optimistic vendor promises. Key milestones include drawing approval, raw material receipt, machining completion, assembly, and final testing.
Vendors rarely comply with 100% of a complex MR without proposing deviations. The TBE process requires a structured decision framework for categorizing these vendor deviations. Engineering and procurement teams collaborate to quantify the schedule and operational impact of accepting non-standard face-to-face dimensions, alternative materials, or modified testing protocols.
Deviation Category | Definition | Required Action | Risk Level |
|---|---|---|---|
Acceptable | Minor variations that meet or exceed the original engineering intent without impacting installation or operation. | Document acceptance in the final TBE report and update the purchase order specifications. | Low |
Requires Clarification | Ambiguous proposals regarding material equivalents, alternative paint systems, or modified testing hold times. | Issue Technical Clarification requests (TQs). Do not proceed until written confirmation is received. | Medium |
Deal-Breaker | Non-compliance with critical safety standards (e.g., API 6D, NACE), incompatible face-to-face dimensions, or unproven actuator sizing. | Reject the deviation outright. If the vendor cannot comply, disqualify the bid. | High |
Undetected manufacturing defects discovered during site hydro-testing cause schedule overruns, safety hazards, and rework costs. An EPC contractor cannot rely solely on the manufacturer's internal quality control department. A comprehensive Inspection and Test Plan (ITP) acts as the primary enforcement mechanism. It details exactly what will be tested, how it will be tested, and who will witness the tests. The ITP shifts quality verification from a reactive process to a proactive, stage-gated methodology.
Physical testing of the pressure boundary and sealing mechanisms is the most critical phase of valve manufacturing. Specifying rigorous valve pressure testing protocols ensures the product withstands operational extremes. The ITP must mandate hydrostatic shell testing, typically conducted at 1.5 times the maximum design pressure, to verify the integrity of the body and bonnet castings. High-pressure hydrostatic seat testing, performed at 1.1 times the design pressure, confirms the sealing capability of the internal trim. Low-pressure air testing detects micro-leaks that water testing might miss, particularly in soft-seated ball or butterfly valves. The ITP must clearly define acceptable leakage rates and mandatory hold times based on the specific valve class and nominal size.
Surface and volumetric defects in castings or forgings lead to failure under pressure. Implementing comprehensive valve quality inspection stages identifies these flaws before assembly. Radiography Testing (RT) and Ultrasonic Testing (UT) detect internal shrinkage, porosity, or cracks in heavy-wall castings. Magnetic Particle Inspection (MPI) and Dye Penetrant Testing (PT) reveal surface-breaking defects on machined surfaces and weld bevels. For applications involving alloy steels or exotic metals, Positive Material Identification (PMI) is mandatory. PMI utilizes X-ray fluorescence analyzers to verify the exact chemical composition of the metal. This ensures a standard stainless steel component has not been accidentally substituted for a required Duplex or Inconel part. To enforce these requirements, the ITP must define clear intervention points for Third-Party Inspectors (TPI). Categorize stages as Hold (production stops until witnessed), Witness (inspector is notified but production may proceed if they are absent), or Review (document verification only).
NDT Method | Target Defect Type | Application Area on Valve | Inspection Stage |
|---|---|---|---|
Radiography Testing (RT) | Internal volumetric defects (shrinkage, porosity, inclusions). | Critical sections of heavy-wall castings and full-penetration butt welds. | Post-casting / Post-welding |
Ultrasonic Testing (UT) | Sub-surface cracks and lack of fusion. | Forgings, thick-walled components, and weld seams. | Post-forging / Post-welding |
Magnetic Particle Inspection (MPI) | Surface and near-surface linear defects. | Ferromagnetic materials, machined surfaces, and weld bevels. | Post-machining / Pre-assembly |
Dye Penetrant Testing (PT) | Surface-breaking defects only. | Non-magnetic materials (stainless steel, exotic alloys), machined sealing faces. | Post-machining / Pre-assembly |
For automated isolation valves and complex control valves, static pressure testing is insufficient. Factory Acceptance Testing (FAT) evaluates the dynamic performance of the fully assembled unit. FAT criteria must include functional testing of the actuator, verifying that the valve strokes smoothly without binding or excessive friction. Torque verification ensures the actuator delivers sufficient force to unseat the valve under maximum differential pressure. Stroke time measurements confirm the valve opens or closes within the safety parameters defined by the process engineers. Simulating operating conditions during the FAT, including loss of power or loss of instrument air, validates the fail-safe mechanisms before the equipment reaches the construction site.
EPC contractors cannot achieve mechanical completion or hand over the facility to the operator without comprehensive, approved vendor documentation. Physical equipment represents only half of the deliverable. The accompanying data is equally important. Missing or inaccurate documentation prevents the execution of site acceptance tests, invalidates warranties, and creates regulatory hurdles during plant commissioning. A strictly managed Vendor Data Requirement List (VDRL) or Supplier Data Requirement List (SDRL) ensures all paperwork is submitted, reviewed, and approved systematically.
Verifying the metallurgical pedigree of pressure-retaining components is a regulatory requirement. Procurement teams must ensure strict compliance with EN 10204 documentation standards. For standard utility services, an EN 10204 Type 3.1 certificate, validated by the manufacturer's authorized inspection representative, is acceptable. For high-pressure or sour service applications, an EN 10204 Type 3.2 certificate is mandatory. The 3.2 certificate requires independent verification by a third-party inspector who witnesses the material testing at the foundry. Success in this area requires unbroken traceability from the original foundry heat number stamped on the raw casting to the final assembled valve. If a heat number cannot be traced back to its corresponding MTC, the valve must be rejected, regardless of its physical appearance or pressure test results.
Beyond material certificates, the SDRL dictates the submission schedule for engineering documents. General Arrangement (GA) drawings and cross-sectional diagrams must be approved early in the project to allow piping designers to finalize spool dimensions and structural supports. For valves requiring fabrication or extended pup pieces, Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR) must be reviewed by the EPC's welding engineers to ensure compliance with ASME Section IX. As the project nears completion, comprehensive Operation & Maintenance (O&M) manuals become necessary for the end-user's maintenance teams. Delays in document submission frequently bottleneck the entire project schedule. Tying milestone payments directly to SDRL compliance ensures vendors remain financially motivated to deliver accurate paperwork on time.
Poor handling during transit, inadequate storage conditions, or a lack of vendor support during start-up compromise perfectly manufactured valves. This shifts the execution risk entirely back to the EPC contractor. The procurement lifecycle does not end when the equipment leaves the factory. It concludes only when the plant achieves steady-state operation. Proactive planning for logistics, preservation, and site support protects the physical assets and ensures a smooth commissioning phase.
Industrial valves often sit in laydown yards for months before installation, exposed to harsh weather, dust, and fluctuating humidity. Specifying export packaging and long-term preservation procedures prevents internal corrosion and seal degradation. Flange protectors must be securely fastened to prevent damage to the raised faces or ring-type joints during lifting and transport. For extended site storage, the MR should mandate the use of Volatile Corrosion Inhibitor (VCI) packaging, internal desiccants, or nitrogen purging for highly sensitive control valves. Machined surfaces and exposed actuator stems must be coated with heavy-duty rust preventatives to withstand the specific environmental conditions of the construction site.
When valves arrive at the construction site, the receiving inspection team must immediately verify the integrity of the packaging. Dropped crates or torn VCI wrapping indicate potential internal damage. Site personnel must never lift a valve by its handwheel, actuator, or tubing. Lifting straps must be secured around the main valve body or designated lifting lugs. If valves are stored for more than six months, the EPC contractor must implement a routine maintenance schedule. This includes rotating the valve ball or gate partially every month to prevent the seals from sticking, and reapplying rust preventatives to exposed machined surfaces. Failure to execute these basic preservation steps voids the manufacturer's warranty and guarantees leakage during the first hydro-test.
Equipment failures during the commissioning phase require immediate expert intervention to prevent massive schedule delays. Evaluating vendors based on their valve after-sales service capabilities is a value-influencing factor during the initial TBE. Procurement teams must assess the vendor's global service network and their guaranteed response times for site interventions. The availability of OEM-certified technicians for site troubleshooting, actuator calibration, and commissioning supervision drastically reduces downtime. Warranty terms must be negotiated to align with the EPC project schedule. Standard warranties of 12 months from shipment are often inadequate, as the equipment may not be commissioned within that timeframe. Negotiating terms such as 18 months from shipment or 12 months from successful commissioning provides the necessary coverage during the highest-risk phases of the project.
A proactive spare parts strategy prevents minor component failures from halting major commissioning activities. Procurement must differentiate between mandatory commissioning spares and two-year operational spares. Commissioning spares typically include soft seals, gaskets, packing rings, and filter elements that are easily damaged during initial line flushing or hydro-testing. Having these items physically present on-site before start-up is necessary. To mitigate commercial risk, EPC contractors should secure fixed pricing for both commissioning and operational spare parts during the initial procurement phase. This prevents post-award price increases when the vendor knows the contractor is locked into their proprietary equipment.
Integrate the specific evaluation dimensions detailed above into your next Request for Quotation (RFQ) to establish clear vendor expectations from day one.
Mandate the inclusion of a detailed Inspection and Test Plan (ITP) and Supplier Data Requirement List (SDRL) as condition precedents for any purchase order award.
Establish a cross-functional review board comprising engineering, quality assurance, and procurement personnel to evaluate all technical deviations before commercial negotiations begin.
Secure fixed pricing for commissioning spares and define guaranteed site-response times for OEM technicians within the final contract terms.
Utilize a standardized valve procurement checklist for EPC contractors during all technical bid evaluations to ensure consistent vendor scoring.
A: An MR must include process conditions, fluid data, required flow capacity (Cv), relieving conditions, design codes, pressure-temperature ratings, material specifications, actuation requirements, and specific testing standards like fire-safe or fugitive emission certifications.
A: An EN 10204 Type 3.2 certificate provides independent, third-party verification of a material's chemical and mechanical properties. It ensures unbroken traceability from the foundry heat number to the finished component, which is necessary for high-pressure or highly corrosive applications where material failure could be catastrophic.
A: PMI uses X-ray fluorescence to verify the exact chemical composition of metal components before assembly. It prevents the accidental installation of incorrect or inferior alloys, thereby eliminating the risk of rapid corrosion or structural failure in aggressive process environments.
A: Hydrostatic shell testing is performed at 1.5 times the design pressure to verify the structural integrity of the valve body and bonnet castings. Seat testing is performed at 1.1 times the design pressure to confirm the internal sealing mechanism prevents fluid bypass when the valve is closed.
A: Tying payments to the Supplier Data Requirement List (SDRL) ensures vendors prioritize the submission of critical documentation, such as General Arrangement drawings and Material Test Certificates. Without this financial leverage, document delays frequently occur, which can halt site construction and prevent mechanical completion.
A: Commissioning spares are consumable components, such as soft seals, O-rings, gaskets, and packing materials, that are highly susceptible to damage during initial pipe flushing, hydro-testing, and plant start-up. Having them on-site prevents minor damages from causing major delays during the commissioning phase.
