Batch rejection destroys profitability in pharmaceutical manufacturing. Particulate contamination ruins entire production runs, and cross-contamination triggers severe regulatory penalties. Process engineers face a continuous balancing act. You must maintain optimal flow rates and control system pressure drops while strict sterility remains non-negotiable. Fluid lines endure extreme temperature fluctuations. Utility lines handle aggressive cleaning chemicals. Meeting all these demands requires precise equipment selection.
Protecting downstream equipment starts with robust filtration. A properly specified stainless steel thread strainer solves these engineering challenges. It captures rogue particulates before they damage sensitive pumps or contaminate the final product. However, not all strainers belong in sanitary environments. Selecting the correct housing geometry matters. Choosing the right thread standard prevents bacterial growth. Utilizing the appropriate filtration media ensures absolute system integrity. This guide breaks down the critical evaluation steps for implementing reliable filtration.
Application Specificity: Standard NPT threads are strictly for utility lines (steam, cooling water), while sanitary threads (DIN 11851, SMS) are required for product-contact fluid filtration to prevent bacterial harborage.
Material Superiority: 316L stainless steel with an electropolished surface finish (specific Ra values) is the non-negotiable baseline, offering unmatched heat resistance and chemical durability compared to polymer or glass alternatives.
Media Selection: The choice between wire mesh, perforated plate, and sintered metal dictates particle retention efficiency, with porous inorganic media guaranteeing zero fiber shedding.
Maintenance & Compliance: Proper strainer selection directly impacts Clean-in-Place (CIP) and Steam-in-Place (SIP) validation, requiring USP Class VI compliant elastomers and ergonomic designs for rapid disassembly.
A high-performance pharmaceutical strainer serves one primary function. It must deliver reliable particulate retention without disrupting the process. Process lines carry various contaminants depending on the production phase. Steam lines generate hard pipe scale from carbon steel headers. Media preparation phases leave undissolved solids and agglomerated powders. The strainer captures these hazards effectively before they reach critical components. It protects expensive downstream chromatography columns, sterile membrane filters, and positive displacement pumps from catastrophic mechanical damage.
Retention cannot compromise system dynamics. The unit must maintain stable system pressure across the entire batch run. It must preserve optimal flow velocities to prevent product degradation. Structural integrity remains equally critical under high-pressure conditions. Pharmaceutical environments subject equipment to severe hydraulic shock. The housing must withstand sudden pressure spikes during valve closures. The internal element cannot collapse or deform when fully loaded with particulates.
Regulatory compliance forms the absolute baseline for success. You cannot install unverified equipment in a validated process. The FDA mandates strict material safety standards to ensure equipment does not leach compounds into the product. ASME BPE guidelines dictate sanitary design geometry to eliminate crevices and entrapment zones. Current Good Manufacturing Practices (cGMP) enforce rigorous cleanability standards. Every component must support validated cleaning protocols.
Regulatory Framework | Focus Area | Impact on Strainer Design |
|---|---|---|
FDA 21 CFR 177 | Material Safety | Mandates non-toxic, non-leaching elastomers and metals. |
ASME BPE | Sanitary Geometry | Requires specific L/D ratios to eliminate dead legs. |
cGMP | Cleanability | Demands fully drainable housings and verifiable CIP performance. |
USP Class VI | Biocompatibility | Ensures seals do not cause adverse biological reactions. |
Engineering realities dictate specific thread choices based on the fluid type. Standard tapered threads include NPT and BSP formats. These threads rely on metal-to-metal wedging and PTFE tape to create a seal. This mechanical design inherently creates microscopic gaps at the root and crest of the threads. These gaps form dangerous dead legs. Bacteria thrive in these hidden crevices. Cleaning agents cannot penetrate these tight spaces effectively during automated wash cycles.
Therefore, we strictly relegate tapered threads to utility applications. They work perfectly for clean steam distribution headers. They handle non-sterile blanket gases well. They manage jacket cooling water efficiently. These utility lines do not contact the final pharmaceutical product, keeping the risk of product contamination at zero.
Hygienic product-contact environments demand sanitary threaded connections. DIN 11851, SMS, and RJT threads dominate these applications across global facilities. Sanitary threads utilize a completely different sealing mechanism. They compress a flush elastomer gasket between flat or precisely grooved faces. This eliminates all internal crevices and keeps the fluid path entirely smooth. This design allows for rapid, effective cleaning and prevents any residual active pharmaceutical ingredients from hiding in the joints.
Identify the fluid type (utility vs. product).
Select NPT or BSP for steam, cooling water, and compressed air.
Select DIN, SMS, or Tri-Clamp for media, buffers, and final product.
Verify the thread standard matches the existing piping infrastructure.
Material selection dictates the lifespan and safety of your equipment. 316L stainless steel stands as the industry standard for sanitary processing. The "L" denotes low carbon content, which prevents carbide precipitation during welding procedures. More importantly, 316L contains 2% to 3% molybdenum. This element drastically improves resistance to chloride corrosion. It withstands aggressive CIP chemicals like sodium hydroxide and phosphoric acid. It handles high-temperature SIP cycles without degrading. 304 stainless steel lacks molybdenum and corrodes quickly in harsh sterile environments.
We often compare stainless steel to alternative materials during the design phase. Polyethersulfone (PES), various plastics, and glass have specific uses in laboratory settings. However, they fail in heavy industrial production. Plastics warp and deform under extreme heat. Continuous SIP cycles destroy polymer housings rapidly. Glass shatters under sudden pressure spikes, creating severe safety hazards. Stainless steel offers superior heat resistance, delivers unmatched chemical durability, and handles extreme industrial pressures safely.
Raw stainless steel is not sanitary straight from the mill. Surface finish matters immensely. Mechanical polishing leaves microscopic scratches that harbor microorganisms. Electropolishing solves this problem entirely. This electrochemical process dissolves microscopic peaks on the metal surface, leaving a mirror-like, passive finish. We target a Roughness Average (Ra) below 0.8 µm for standard sanitary lines. High-purity lines often require Ra < 0.4 µm. This ultra-smooth surface prevents biofilm adhesion and stops microbial growth.
Material Type | Heat Resistance | Chemical Durability | Industrial Pressure Tolerance |
|---|---|---|---|
316L Stainless Steel | Excellent (Up to 400°C) | Excellent (Resists Chlorides) | Very High |
304 Stainless Steel | Good | Poor (Susceptible to Pitting) | High |
Polymer (PES/PTFE) | Low (Deforms > 130°C) | Good | Low |
Borosilicate Glass | Moderate | Excellent | Very Low (Brittle) |
The internal element determines retention efficiency and flow performance. Wire mesh provides excellent macro-filtration capabilities. It consists of woven stainless steel wires that capture large particulates effectively. Perforated plates serve a similar purpose but feature precisely punched holes in solid sheet metal. Both options work well for pre-filtration stages. They protect finer downstream filters from premature blinding and handle heavy dirt loads easily.
High-purity applications require advanced media. Sintered metal filter elements offer premium porous inorganic filtration. Manufacturers fuse metal powders under extreme heat and pressure to create a rigid, porous structure. Sintered media guarantees zero particle-shedding. Woven meshes can sometimes lose broken wires due to fatigue. Sintered metal cannot shed fibers into the filtrate, ensuring absolute product purity.
Sintered elements provide absolute immunity to media migration. High differential pressures often force soft contaminants through woven mesh. The rigid depth of sintered metal traps particles securely within its matrix. It maintains its exact pore structure under severe mechanical stress. This makes it the ultimate choice for critical clean process filtration applications.
Wire Mesh: Best for utility lines, capturing pipe scale, and handling high flow rates.
Perforated Plate: Ideal for structural support or capturing very large debris in raw material lines.
Sintered Metal: Mandatory for sterile gas, clean steam, and final product filtration where zero shedding is required.
Proper sizing prevents catastrophic process failures and extends equipment life. You must calculate optimal flow rates accurately before installation. Pushing fluid too fast degrades the filtration media and causes premature blinding of the element. Blinding forces the system pressure to spike, which wastes energy and damages positive displacement pumps. We establish flow velocity limits based on the specific media type and fluid characteristics.
Sizing the housing requires careful mathematical evaluation of the process parameters. You must consider the total batch volume and account for fluid viscosity. Thick, viscous syrups require massive filtration areas to maintain flow. Thin, aqueous buffer solutions flow much easier through tighter micron ratings. The goal is to minimize pressure loss across the unit. High pressure drops indicate an undersized strainer that will require constant maintenance.
Maximize the active filtration area whenever possible. A larger element holds more dirt and extends the time between maintenance cycles. It keeps the differential pressure (Delta P) low during operation. Always specify a housing that accommodates a larger element than mathematically required. This safety margin absorbs unexpected contamination spikes and ensures continuous operation without unplanned shutdowns.

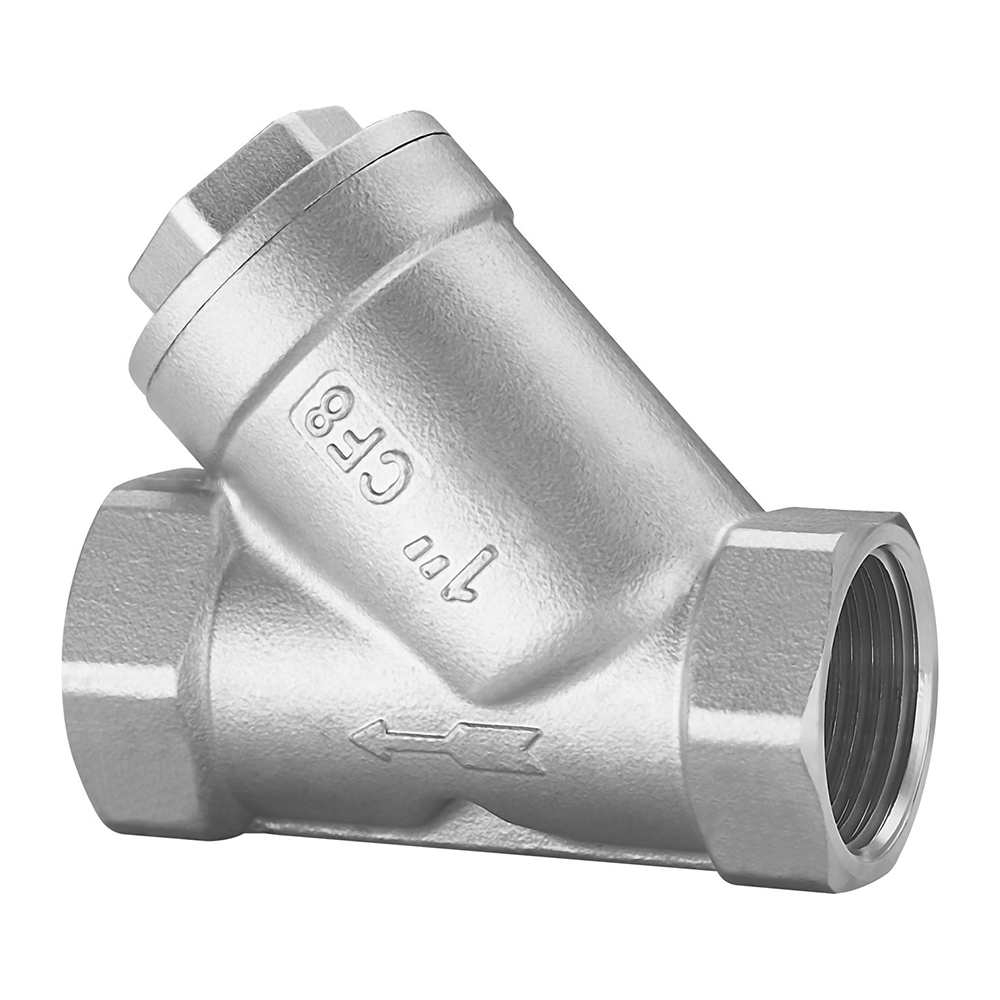

Y-type configurations serve specific structural purposes in facility design. The filtration leg intersects the main pipe at a diagonal angle, creating a distinct "Y" shape. We deploy these primarily in horizontal or vertical utility lines. They excel in systems requiring frequent blow-down operations. Operators can open the blow-off valve at the bottom of the leg to flush debris without stopping the main process flow.
These units dominate specific utility applications across the plant. We use them extensively for clean steam filtration to remove pipe scale before the steam enters the autoclave sterilizer. We also use them for sterile gas pre-filtration. The robust cast or forged bodies provide extreme heat resistance. A heavy-duty threaded strainer handles the thermal shock of steam lines perfectly without warping or leaking.
However, Y-type designs have strict structural limitations regarding sanitary compliance. The angled leg inherently creates a dead leg where fluid can pool in the bottom of the strainer body. This requires careful installation orientation. You must install them with the leg pointing downward in horizontal lines. In vertical lines, the flow must travel downward to ensure complete gravity drainage. Never use Y-type strainers in hygienic product-contact lines due to these pooling risks.
Inline and T-type configurations solve the dead leg problem inherent in Y-type designs. Inline strainers keep the fluid moving in a straight path, with the element sitting directly parallel to the flow. T-type strainers route the fluid through a 90-degree angle. Both designs offer a significantly reduced footprint, allowing them to fit perfectly into tight, complex process skids where space is limited.
These geometries offer superior suitability for validated CIP/SIP processes. They feature excellent drainability and contain far fewer entrapment zones than Y-type bodies. The fluid sweeps the internal surfaces clean during automated washing cycles. Steam penetrates every corner during sterilization. This guarantees absolute sterility for product-contact applications and ensures compliance with ASME BPE guidelines.
Ergonomics play a massive role in equipment selection and daily operations. T-type housings emphasize ease of assembly and disassembly. The top-entry design allows operators to remove the element quickly for inspection. You do not need to remove the entire housing from the pipeline. This provides massive ergonomic benefits during manual cleaning phases, reduces maintenance time, and prevents operator fatigue.
Poor installation creates severe contamination risks that can shut down production. Thread crevices harbor dangerous bacteria. Improper housing geometry traps residual Active Pharmaceutical Ingredients (API). Leftover cleaning agents can pool in poorly drained sections. When the next batch runs, these trapped contaminants ruin the product. This leads to massive financial losses, batch rejection, and potential regulatory citations from auditors.
Mitigation requires strict engineering discipline from the design phase through installation. You must specify appropriate sanitary threads for all product lines. Ensure proper installation angles so every component allows for complete gravity draining. Validate your CIP protocols rigorously before running production. We utilize riboflavin testing for this validation. Engineers spray a fluorescent riboflavin solution inside the stainless steel fluid filter. After the CIP cycle, ultraviolet light reveals any remaining residue. If it glows, the cleaning process failed. Adjust flow rates and times until the test passes perfectly.
Elastomer failure causes immediate process contamination and safety hazards. Incompatible gaskets degrade rapidly under chemical attack. They become brittle, crack, and lead to external leaks. Worse, degrading seals shed rubber particles directly into the pharmaceutical product. Extreme temperature fluctuations during SIP cycles accelerate this degradation. Harsh CIP chemicals attack the polymer chains of the seal, destroying its elasticity.
You must evaluate seal materials against your specific process parameters. PTFE (Teflon) offers absolute chemical resistance but lacks flexibility, making it prone to cold flow. EPDM handles steam sterilization brilliantly but fails when exposed to certain oils or lipids. Viton resists oils and acids but struggles with pure steam applications. Choose the elastomer that matches your worst-case exposure scenario. Mandate strict compliance documentation from your suppliers. All seals must meet USP Class VI standards and comply with FDA 21 CFR 177.2600 regulations. Never accept industrial-grade gaskets in a sanitary facility.
Elastomer Type | Best Application | Limitations | Compliance Standard |
|---|---|---|---|
EPDM | Clean Steam, Aqueous Fluids | Degrades in oils and lipids | USP Class VI, FDA |
PTFE (Teflon) | Aggressive Chemicals, Solvents | Inflexible, prone to cold flow | USP Class VI, FDA |
Viton (FKM) | Oils, High Temperatures | Poor resistance to pure steam | USP Class VI, FDA |
Silicone | General Sanitary Use, Air | Poor chemical resistance | USP Class VI, FDA |
Neglecting maintenance guarantees system failure and costly production stops. Unplanned downtime costs thousands of dollars per hour in a pharmaceutical plant. Elements collapse when blinded by excessive dirt. Operators damage delicate mesh screens during manual handling. Dropping an element destroys its micron rating instantly. Forcing a misaligned housing together ruins the sanitary threads and compromises the seal.
Establish rigid preventive maintenance schedules to avoid these issues. Base these schedules on continuous differential pressure monitoring rather than arbitrary timeframes. Replace or clean the element before the Delta P reaches the danger zone. Utilize quick-disconnect sanitary threads to allow for rapid manual breakdown without specialized tools. Define safe standard operating procedures (SOPs) for your maintenance team. Train operators on the exact methods for handling and cleaning the elements. Proper handling ensures reliable performance for years.
Take immediate action to secure your process lines. Implement the following steps to ensure compliance and efficiency:
Audit all existing utility and product lines to identify and replace any standard NPT threads currently contacting pharmaceutical products.
Request full Material Test Reports (MTRs) and surface finish certifications from your equipment suppliers before finalizing any purchase.
Consult with specialized application engineers to perform accurate pressure drop calculations based on your specific fluid viscosity and batch volume.
Upgrade all elastomer seals to verified USP Class VI and FDA-compliant materials, matching the polymer type to your exact CIP chemical profile.
Establish a continuous differential pressure monitoring program to dictate preventive maintenance schedules and prevent element blinding.
A: It varies entirely by application. Pre-filtration stages typically utilize 10 to 200 mesh screens to capture large particulates and pipe scale. For finer, high-purity applications, we transition from mesh counts to precise micron ratings, often utilizing sintered inorganic media to capture microscopic contaminants without restricting flow.
A: No. Standard NPT threads create microscopic gaps and dead legs that harbor bacteria and trap residual product. Sanitary threads like DIN, SMS, or RJT must be used for all product-contact lines to ensure absolute cleanability and prevent cross-contamination.
A: Stainless steel offers superior heat resistance for continuous Steam-in-Place (SIP) cycles. It provides unmatched chemical durability against harsh CIP acids and bases. Furthermore, it delivers much higher pressure tolerance without the risk of housing deformation or dangerous fiber shedding into the product.
A: Cleaning involves a validated combination of automated Clean-in-Place (CIP) systems using caustic and acid washes, followed by Steam-in-Place (SIP) sterilization. Additionally, operators perform periodic manual breakdowns to inspect the housing and subject the internal elements to deep ultrasonic cleaning.
A: 316L contains molybdenum, which provides superior resistance to chloride corrosion and harsh CIP chemicals. The "L" denotes low carbon, preventing weld decay. While 304 is adequate for basic water utility lines, it falls short in aggressive sterile environments, making 316L the mandatory standard for pharmaceutical applications.
