Three-way Ball Valve

Product Introduction

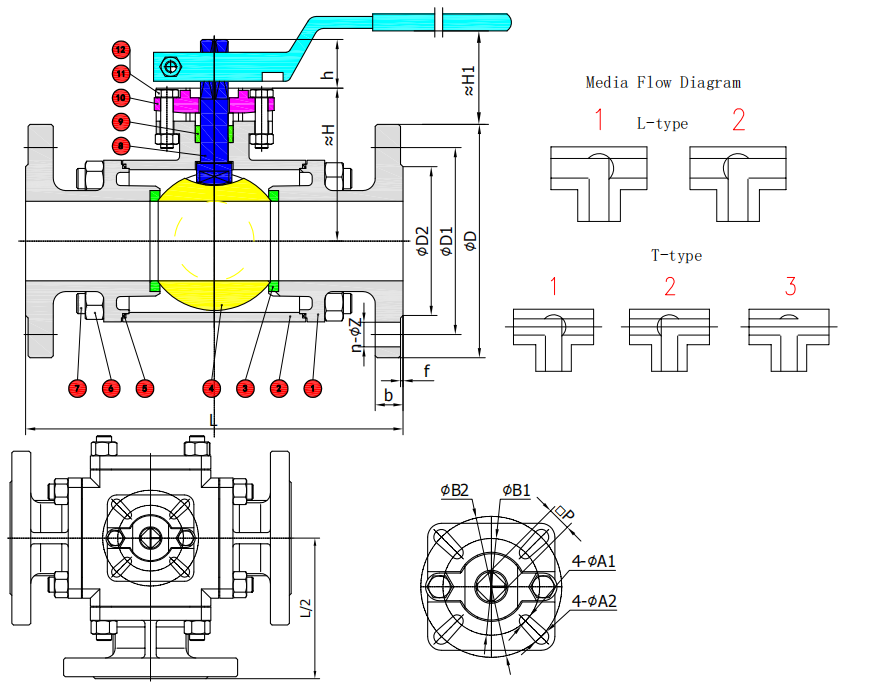

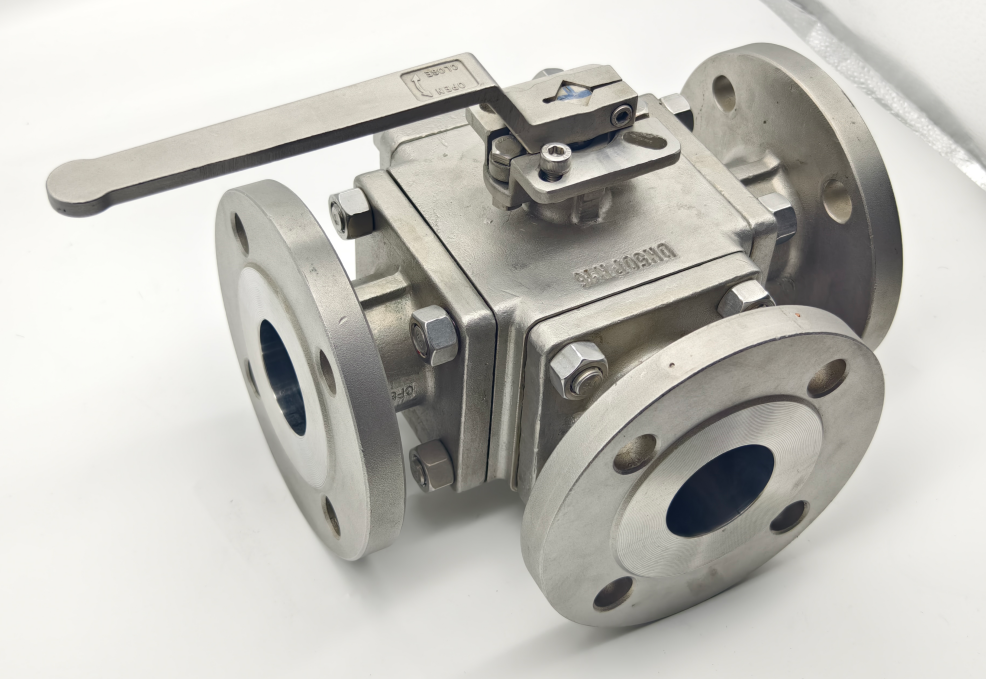

Three-way ball valve‌is a valve used for medium diversion, merging and reversing, which is widely used in various industrial pipeline systems. Three-way ball valves are divided into four types: T-type, L-type, X-type and Y-type according to the shape of the circulation channel of the ball.

Design Standard: ASME B16.34

End Flange: ASME B16.5 / JIS B2212 / DIN 2543

Inspection and testing: API598

Product Advantages

1. Three-way ball valve structure is simple, the use of integrated structure, 4-sided seat sealing type, less flange connection, the design to achieve lightweight, simple structure and small size, light weight‌.

2. The resistance coefficient of the three-way ball valve is equal to that of the pipe section of the same length. When the fluid passes through, the resistance is small and the flow capacity is large‌.

3. The design features of the three-way ball valve include ball bottom design, fully-mounted valve cover design, valve stem anti-leakage design, locking design and high platform design, etc. These designs make the three-way ball valve easy to install, disassemble and repair, and has the functions of preventing leakage and misoperation‌. 4. Three-way ball valves are divided into two types: single-acting and double-acting according to the action type. According to the channel position, they can be divided into straight-through type, three-way type and right-angle type. The latter two ball valves are used to distribute the medium and change the flow direction of the medium. 5. Three-way ball valves mainly include T-type three-way ball valves, L-type three-way ball valves, right-angle three-way ball valves, Y-type three-way ball valves, stainless steel three-way ball valves, and flange three-way ball valves.

• T-type three-way ball valve‌: The flow channel of the sphere is in a ""T"" shape, with two inlets and one outlet, which can realize the shunt and confluence between the two pipelines.It is often used to control the direction and flow rate of fluid‌‌.

• L-shaped three-way ball valve‌: The flow channel of the sphere is in the shape of an "L", with one inlet and two outlets, which can realize the division of one pipeline into two pipelines or the combination of two pipelines into one pipeline.It is often used to distribute fluid into two different systems.‌

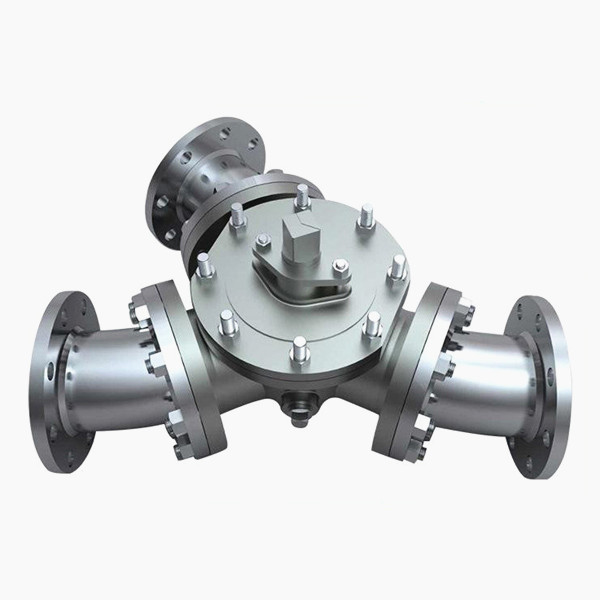

• Y-type three-way ball valve‌: The flow channel of the sphere is in the shape of ""Y", with one inlet and two outlets, which can realize the diversion of fluid from one line to two lines or the merging of two lines into one line, and is often used to distribute fluid into two different systems.‌‌

• Three-way ball valves are widely used in petroleum, chemical industry, metallurgy, electric power and other industrial fields, and are used for medium diversion, merging and reversing operations. Its compact structure, light weight and easy maintenance are suitable for fluid control needs in various industrial piping systems.

Three-way ball valve

1) Design Standard: ASME B16.34

2) End Flange: ASME B16.5.JIS B2212.DIN 2543,GB9113

3) Size: 1/2"-6"

4) Pressure: 150lb~300lb

5) Temperature: 200℃

6) Materials: Carbon steel,Stainless steel

7) Suitable Medium: Water,Oil,Gas,Steam

Q1: How many forms of three-way ball valve are there?

A1: There are T, L, Y, X and other types of three-way ball valves.

Q2: How many types of connections are available for 3-way ball valves?

A2: The connection methods of three-way ball valves include flanges, threads, union rings, etc.

Q3: How many control methods are there for three-way ball valves?‌

A3: Three-way ball valves are manual, worm gear drive, pneumatic, electric, etc.
