Oil Free Ball Valve

Product Introduction

‌Oil free ball valve‌It is a specially designed and treated ball valve, which has the characteristics of anti-pollution, easy cleaning, easy maintenance and hygiene. It is usually made of 316L stainless steel material or engineering plastics, which can effectively prevent oxidation and corrosion, and the inner cavity has a high degree of finish to prevent bacterial growth and cross-contamination.‌

Product Advantages

1. The high oil free ball valve has high internal smoothness and no dead angles, which can effectively prevent bacterial growth and cross-contamination.

2. It is made of 316L stainless steel or engineering plastics to prevent the valve itself from contaminating materials‌.

3. With high internal finish and no dead angle, it can be cleaned conveniently and quickly by water, steam, chemical cleaning agent, etc‌.

4. High oil free ball valves include sanitary high oil free ball valves, three-piece high oil free ball valves, pneumatic high oil free ball valves, stainless steel 304 high oil free ball valves, and 316L high oil free ball valves.

STANDARDS

Design Standard:ASME B16.34/DIN3357/GB/T12237

End Flange:ASME B16.5/JIS B2212/DIN 2543/GB9113

Face to Face:ASME B16.10 / JISB2002 / BS EN558-1

Inspection and testing:API598

PRODUCT DESCIRPTION

Materials Of Parts

• High oil free balll valves are often used in the pharmaceutical industry. They are used to control pharmaceutical raw materials, powders, liquids, etc. to ensure that products meet hygienic standards and avoid cross-contamination‌.

• In the food industry, high oil free ball valves are used to make food and beverages, control the flow and pressure of food, and ensure product quality, hygiene and safety‌.

• In the electronics industry,the oil free ball valves is required to prevent high-purity water from being polluted and ensure the purity of high-purity water, and there is no oil stain or dust. During the assembly process, it needs to be assembled in a clean room, and a thin ultraviolet lamp is used to check whether there is any pollution.

Oil free ball valve

1) Design Standard: ASME B16.34,DIN3357,GB/T12237

2) End Flange: ASME B16.5.JIS B2212.DIN 2543,GB9113

3) Size: 1/2"-10"

4) Pressure: 150lb~600lb

5) Temperature: 200℃

6) Materials: Carbon steel,Stainless steel

7) Suitable Medium: Water,Oil,Gas,Steam

Q1: What industries are oil free ball valves used in?

A1: Electronics, chips, pharmaceuticals, food, hydrogen, oxygen, fluorine chemicals and other industries that require high cleanliness to prevent cross-contamination.

Q2: What are the special requirements for oil free ball valves?‌

A2: Oil free ball valves require high inner surface finish, no dead angles, no oil stains, and no dirt.

Q3: What are the requirements for manufacturing process of oil free ball valves?‌

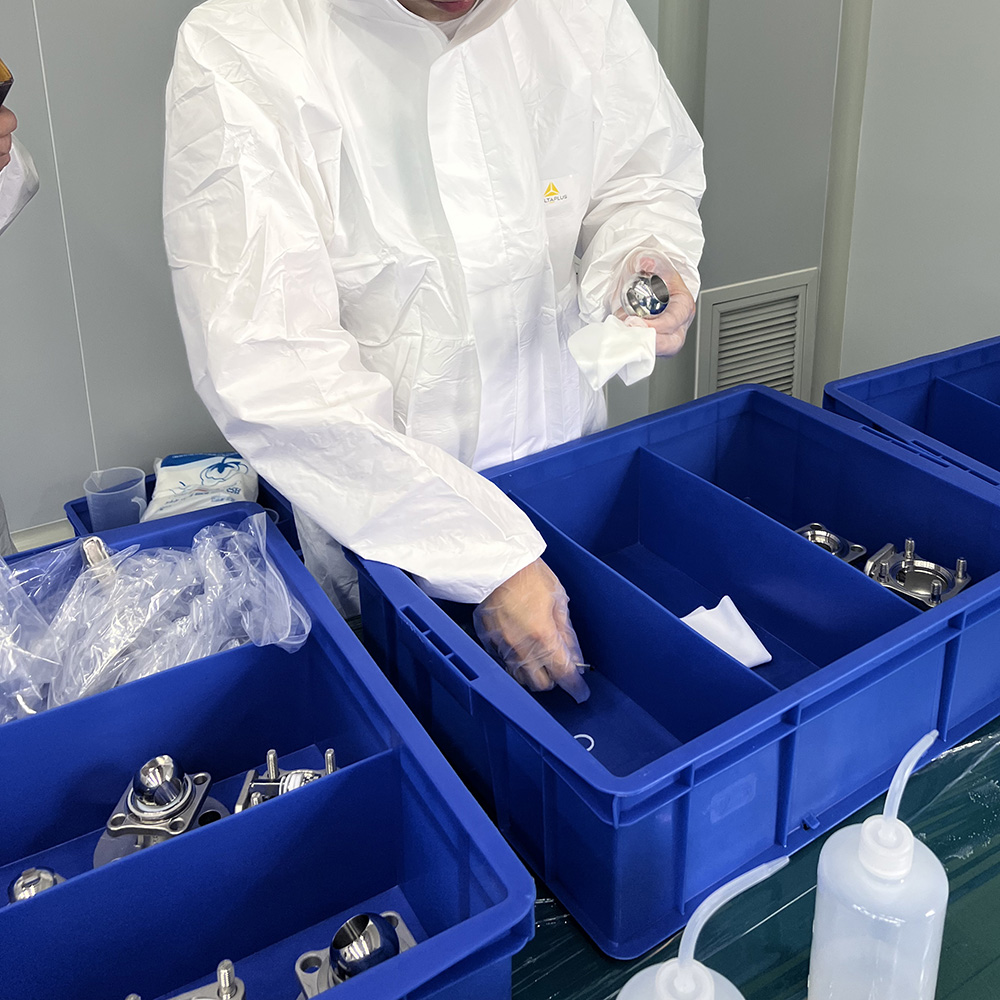

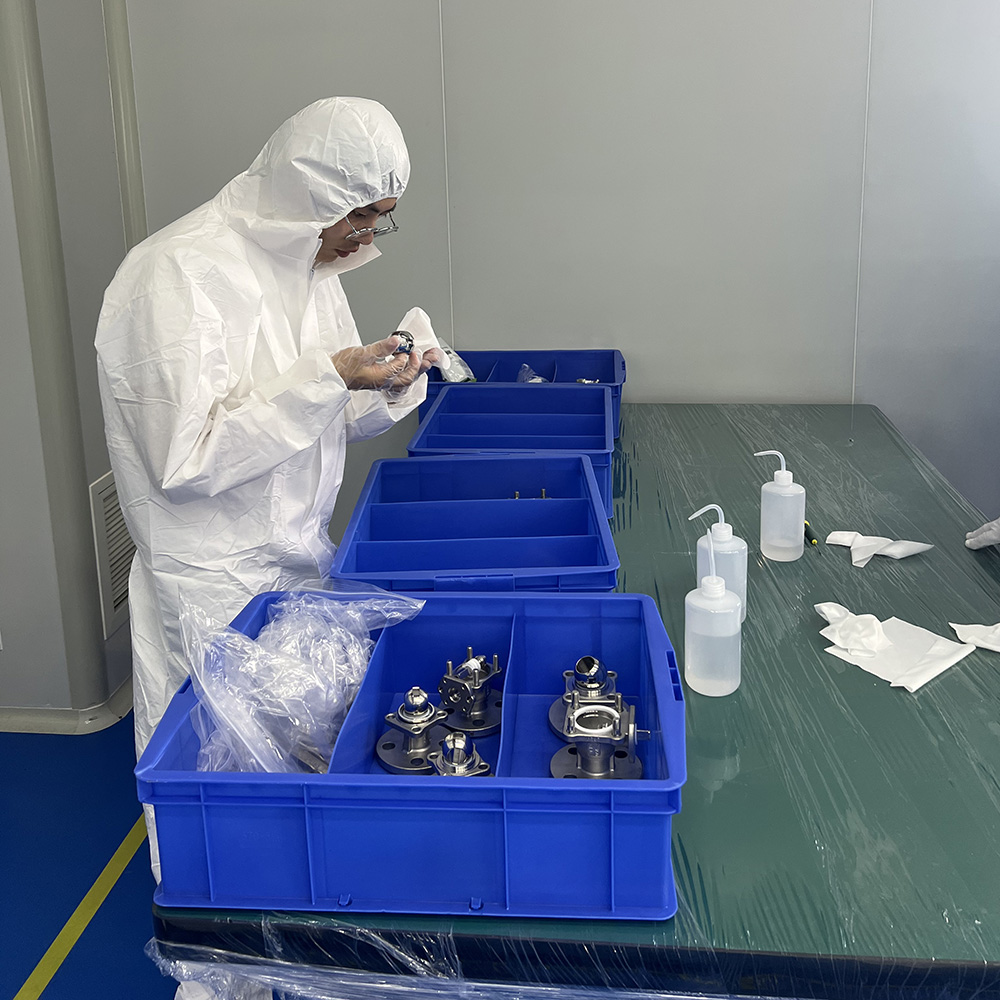

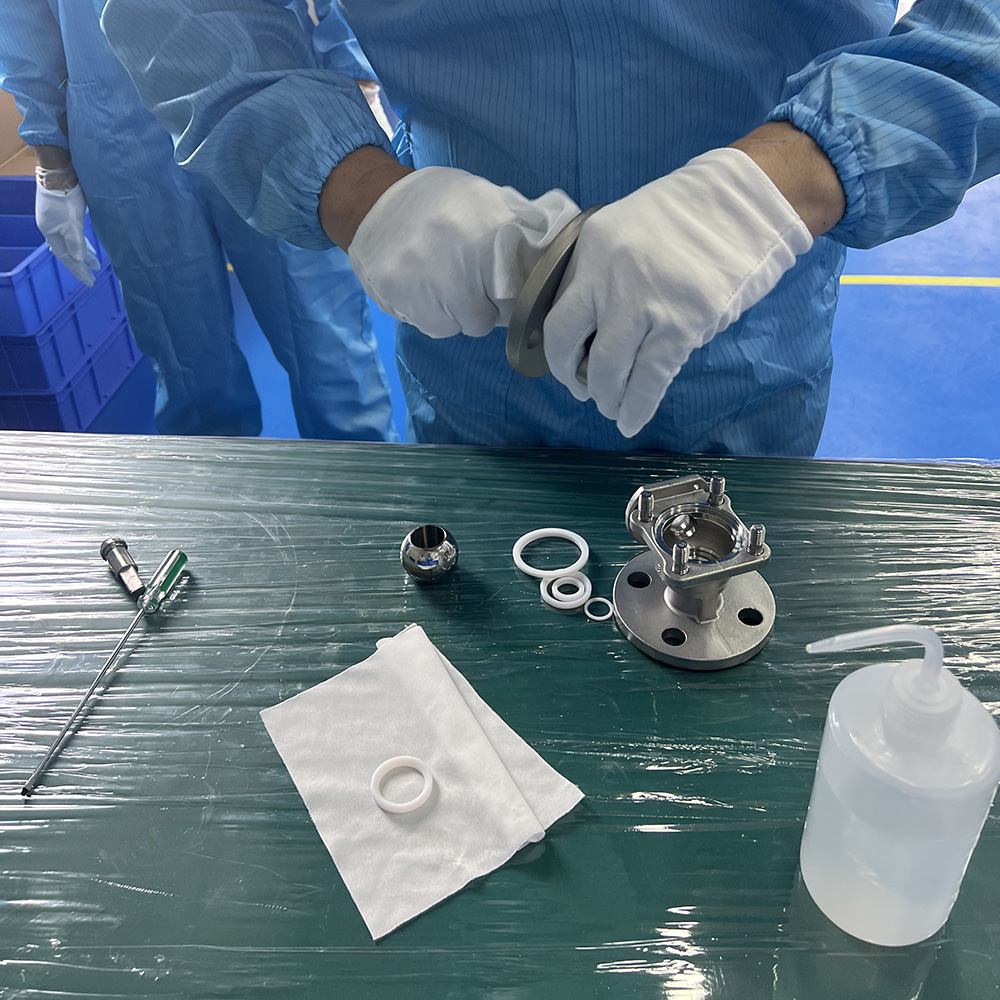

A3: During its manufacturing process, all components need to be cleaned in a clean room, inspected on pollution-free equipment, and finally packaged and sealed through dust bags‌.
