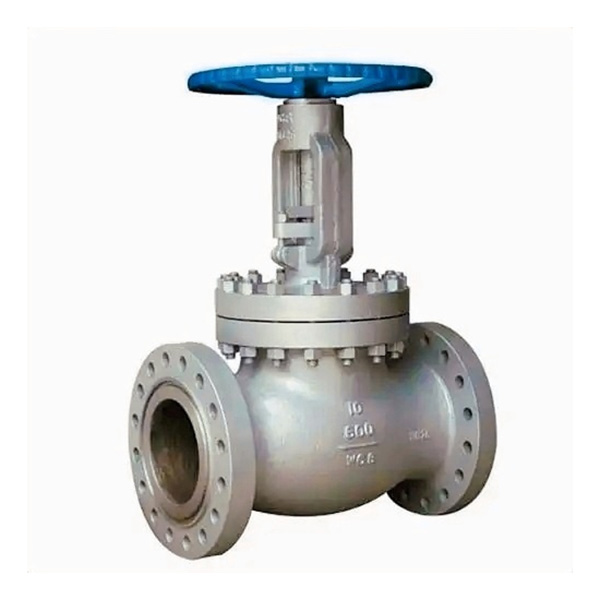

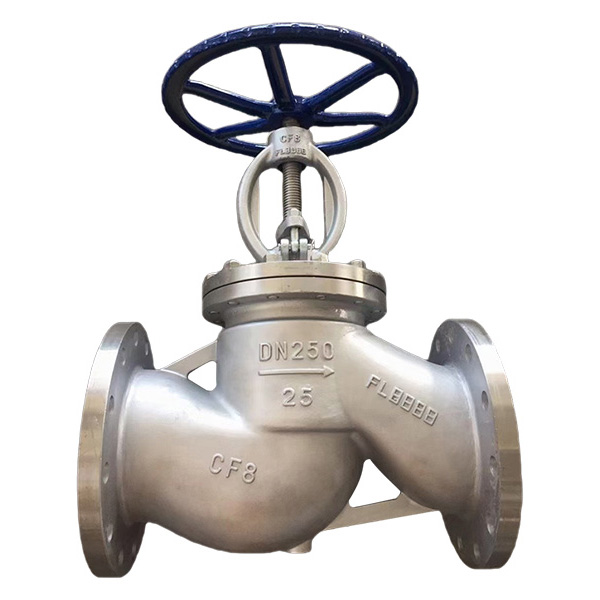

Flange globe valve

Design Standard: API 623/ ASME B16.34 / API 602
End Flange: ASME B16.5/JIS B2212/DIN 2543
Face to Face: ASME B16.10 / JISB2002 / BS EN558-1
Inspection and testing: API598

Availability:

Quantity:



Inquire Add to Basket

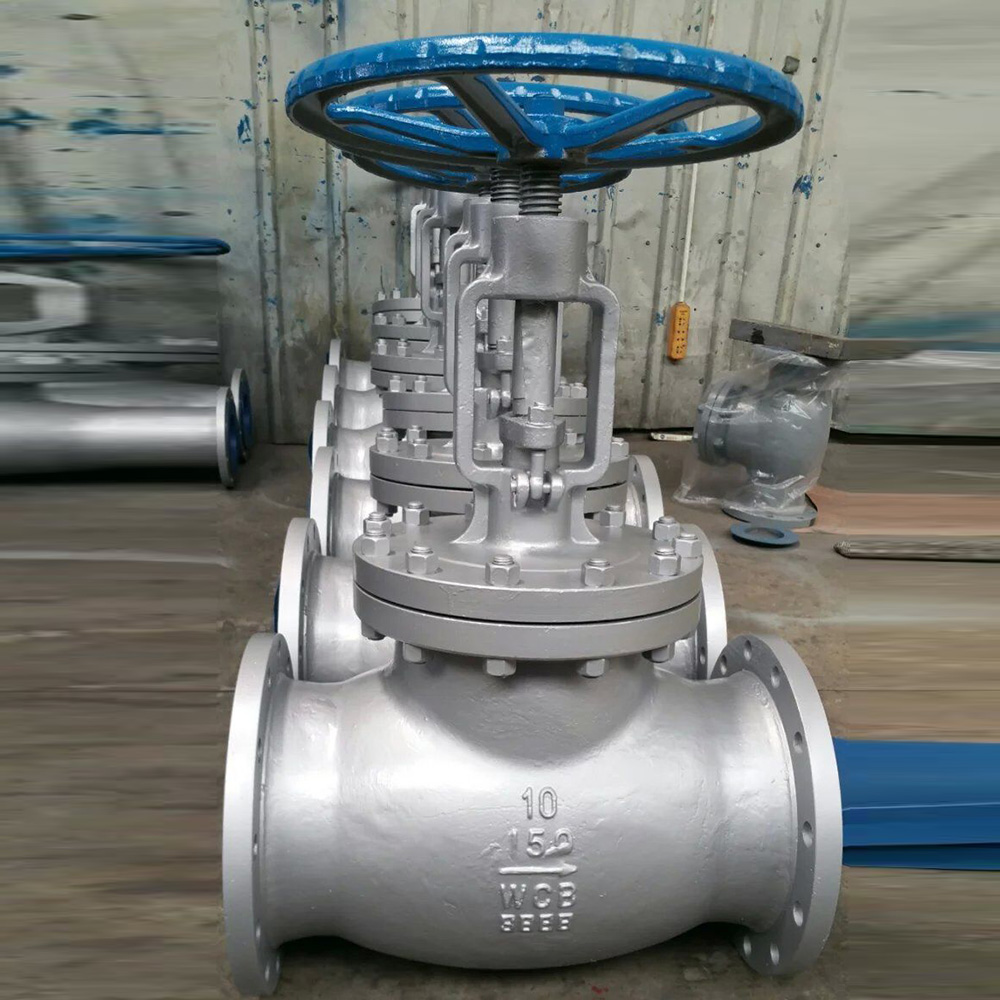

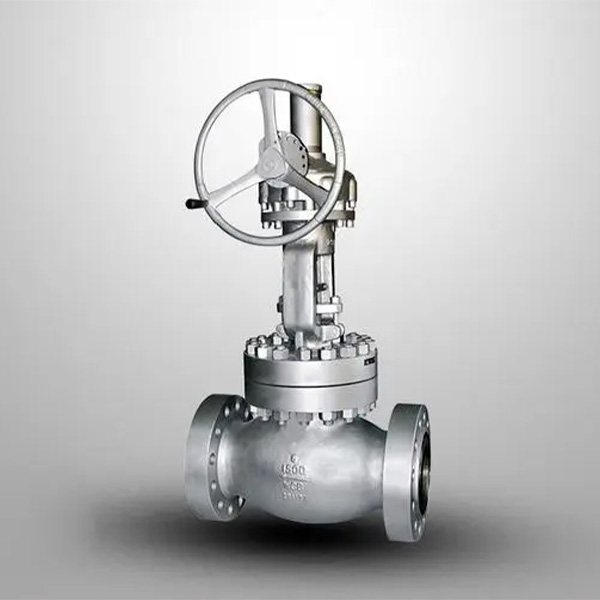

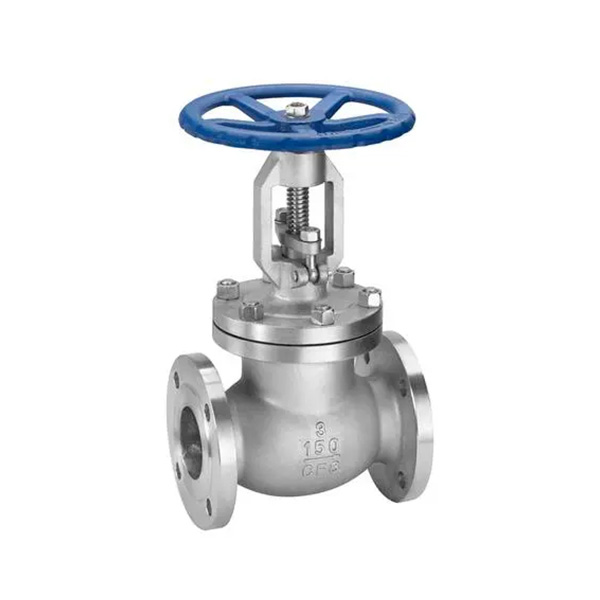

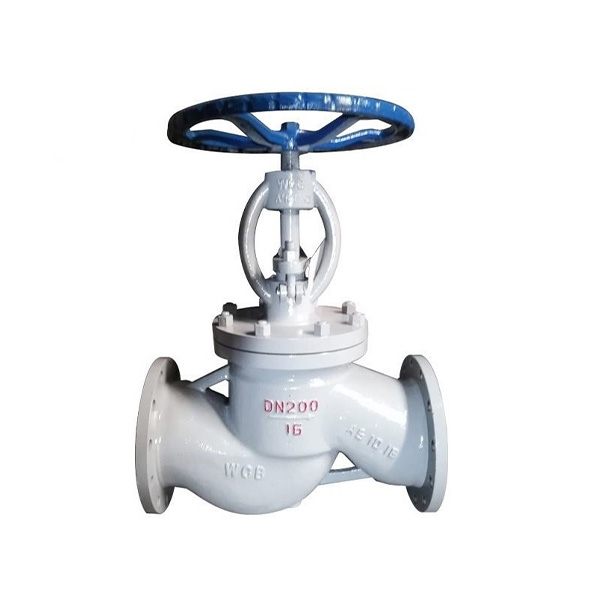

Flange globe valve

Product Overview

Product Introduction

Globe valve is a commonly used valve, widely used in various industrial pipelines. The main function of the globe valve is to cut off or regulate the flow of fluid. Its working principle is to apply pressure through the valve stem to make the sealing surface of the valve clack and the sealing surface of the valve seat closely fit, thereby preventing the flow of the medium. The opening and closing part of the globe valve is a plug-shaped valve flap, the sealing surface is flat or tapered, and the valve clack moves straight along the center line of the valve seat.

Product Advantages

1. The globe valve adopts a forced sealing method. When closing, pressure needs to be applied to the valve clack to ensure that the sealing surface does not leak. This design makes the globe valve have better sealing performance and long service life‌.

2. The structure of the globe valve is relatively simple, mainly composed of valve body, valve clack and valve stem, which makes its manufacture and maintenance more convenient‌.

3. Although the globe valve is mainly used for fully open and close operation,the flow can also be adjusted by rotating the valve stem in some cases, but with low adjustment accuracy‌‌.

4. Flange globe valves mainly include stainless steel flange globe valves, high temperature resistant cast steel globe valves for industrial boiler, forged-steel flange globe valves, cast-steel flange globe valves, and ASME B16.34 globe valves.

Technical Parameters

Design Standard: API 623/ ASME B16.34 / API 602
End Flange: ASME B16.5/JIS B2212/DIN 2543
Face to Face: ASME B16.10 / JISB2002 / BS EN558-1
Inspection and testing: API598

Size

Pressure

Temperature

Suitable Medium

Features

1/2”~12”

150LB~1500LB

425℃

Water,Oil,Gas,Steam

Simple structure

Small work schedule

Good sealing performance

wear-resisting

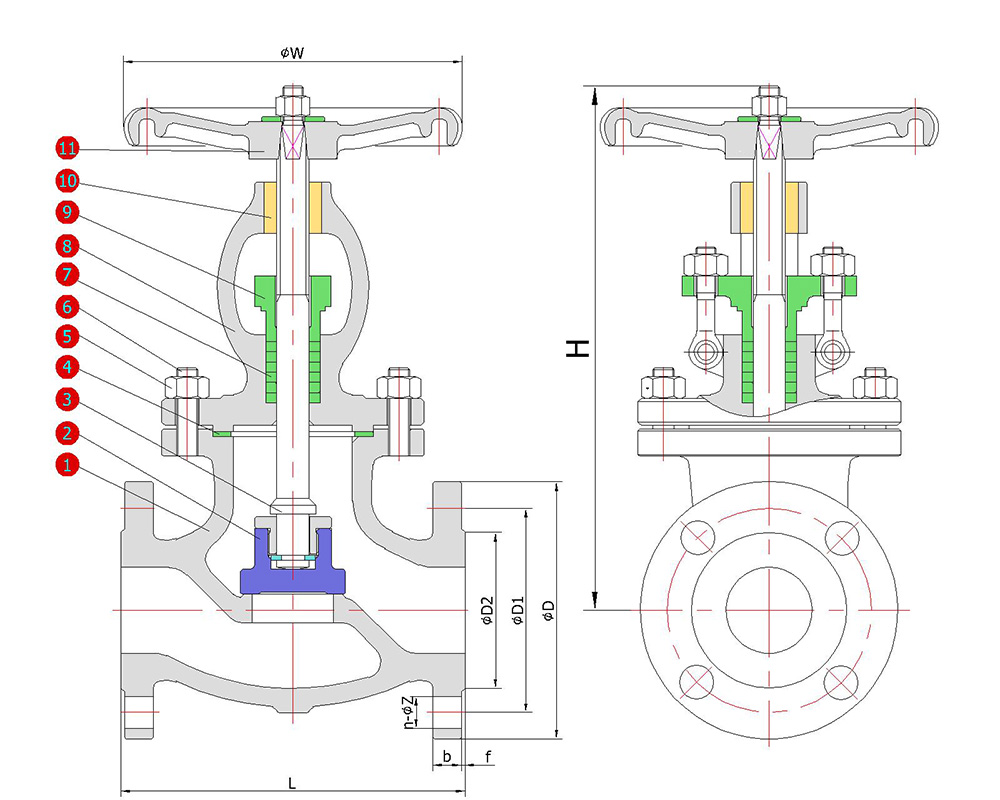

Product Specifications

11	Hand Wheel	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron
10	Stem Nut	Brass	Brass	Brass	Brass	Brass
09	Gland Flange	CF8	CF8M	CF3	CF3M	WCB
08	Bonnet	CF8	CF8M	CF3	CF3M	WCB
07	Packing	PTFE	PTFE	PTFE	PTFE	PTFE
06	Blot	B8	B8	B8	B8	B7
05	Nut	8	8	8	8	2H
04	Gasket	304+Graphite	316+Graphite	304L+Graphite	316+Graphite	304+Graphite
03	Stem	304	316	304L	CF3M	2CR13
02	Disc	CF8	CF8M	CF3	CF3M	WCB
01	Body	CF8	CF8M	CF3	CF3M	WCB
NO.	Part Name	Material

ASME 150LB
NPS	L	D	D1	D2	b	f	n-∅Z
1/2"	108	90	61	35	8	2	4-16
3/4"	117	100	70	43	9	2	4-16
1"	127	110	80	51	10	2	4-16
1-1/4"	140	115	89	64	11	2	4-16
1-1/2"	165	125	99	73	13	2	4-16
2"	203	150	121	92	14	2	4-19
2-1/2"	216	180	140	105	16	2	4-19
3"	241	190	153	127	18	2	4-19
4"	292	230	191	157	22	2	8-19
5"	356	255	216	186	22	2	8-22
6"	406	280	242	216	24	2	8-22
8"	495	345	299	270	27	2	8-22
10"	622	405	362	324	29	2	12-25
12"	698	485	432	381	30	2	12-25

DIN PN16
DN	L	D	D1	D2	b	f	n-∅Z
15	130	95	65	45	14	2	4-14
20	150	105	75	55	14	2	4-14
25	160	115	85	65	14	2	4-14
32	180	135	100	78	16	2	4-18
40	200	145	110	85	16	3	4-18
50	230	160	125	100	16	3	4-18
65	290	180	145	120	18	3	4-18
80	310	195	160	135	20	3	8-18
100	350	215	180	155	20	3	8-18
125	400	250	210	185	22	3	8-18
150	480	285	240	210	22	3	8-22
200	600	340	295	265	24	3	12-22
250	730	405	355	320	26	3	12-26
300	850	460	460	375	28	3	12-26

ASME 300LB
NPS	L	D	D1	D2	b	f	n-∅Z
1/2"	152	95	67	35	13	2	4-16
3/4"	178	115	83	43	14	2	4-19
1"	203	125	89	51	16	2	4-19
1-1/4"	216	135	98	64	18	2	4-19
1-1/2"	229	155	114	73	19	2	4-22
2"	267	165	127	92	21	2	8-19
2-1/2"	292	190	149	105	24	2	8-22
3"	318	210	168	127	27	2	8-22
4"	356	255	200	157	30	2	8-22
5"	400	280	235	185	33	2	8-22
6"	444	320	270	216	35	2	12-22
8"	559	380	330	270	40	2	12-25
10"	622	445	387	324	46	2	16-29
12"	711	520	451	381	49	2	16-32

JIS10K
JIS	L	D	D1	D2	b	f	n-∅Z
15A	108	95	70	51	12	1	4-15
20A	117	100	75	56	14	1	4-15
25A	127	125	90	67	14	1	4-19
32A	140	135	100	76	16	2	4-19
40A	165	140	105	81	16	2	4-19
50A	203	155	120	96	16	2	4-19
65A	216	175	140	116	18	2	4-19
80A	241	185	150	126	18	2	8-19
100A	292	210	175	151	18	2	8-19
125A	356	250	210	182	20	2	8-23
150A	406	280	240	212	22	2	8-23
200A	495	330	290	262	22	2	12-23
250A	622	400	355	324	24	2	12-25
300A	698	445	400	368	24	3	16-25

Product Uses

The closing principle of the globe valve is to rely on the valve stem to apply pressure to make the sealing surface of the valve clack and the sealing surface of the valve seat closely fit to prevent the flow of medium.
The disc stroke of the stop valve is short and is relatively labor-saving to operate. It is suitable for cutting off or adjusting the medium‌.
Globe valves are suitable for situations where fluids need to be cut off or regulated. Due to their simple structure, easy operation and excellent sealing, they are often used in industrial pipeline systems. However, due to its large fluid resistance, it is not suitable for use in fields requiring large flow or high-velocity fluids.

Product Operate Guide

Flange globe valve

1) Design Standard: BS1873,ASME B16.34,API 602,DIN3356,GB9113

2) End Flange: ASME B16.5.JIS B2212.DIN 2543,GB9113

3) Size: 1/2"-12"

4) Pressure: 150lb~1500lb

5) Temperature: 425℃

6) Materials: Carbon steel,Stainless steel

7) Suitable Medium: Water,Oil,Gas,Steam

FAQ

Q1: What are the design standards for globe valves?

A1: The manufacturing standard of globe valves is BS1873. ASME B16.34 API 602‌.
