Thread Globe Valve

Design Standard: ASME B16.34
Threaded End: NPT / BSPT / RC / G
Inspection and testing: API598

Product Advantages

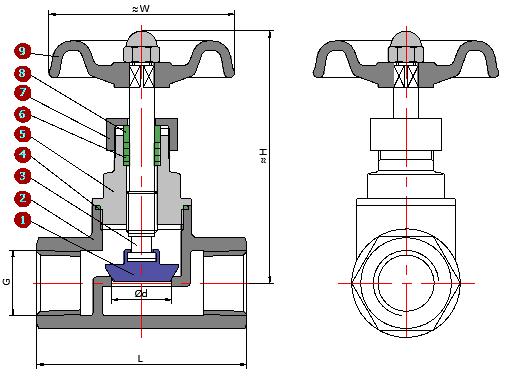

1. The threaded globe valve has a simple structure: It is usually composed of components such as the valve body, valve cover, valve stem, valve disc, and sealing ring, and is easy to install and maintain.

2. The threaded globe valve is convenient to operate: It can be easily opened and closed by rotating the handle or using an electric device, and the operation is simple.

3. The threaded globe valve has good sealing performance: High-quality sealing ring materials are used, which have good elasticity and wear resistance, and can effectively prevent the leakage of the medium.

4. The threaded globe valve is resistant to high temperature and corrosion: It is often made of materials such as stainless steel that are resistant to high temperature and corrosion, and is suitable for various harsh environmental conditions.

5.The threaded globe valve mainly includes the internal threaded globe valve and the stainless steel threaded globe valve.

• Threaded globe valves are widely used in industries such as petroleum, chemical engineering, metallurgy, and electric power to control the flow of various fluids. For example, in the petroleum industry, they are used in oil pipelines; in the chemical industry, they are applied in pipelines for transporting chemical substances; in the metallurgy industry, they are utilized for controlling gases and liquids during the steelmaking and steel rolling processes.

• In the civil field of threaded globe valves: They are also applied in the water supply and drainage systems of buildings, as well as in heating, ventilation and air conditioning systems, etc., to control the flow of media such as water and steam.

Thread Globe Valve

1) Design Standard: ASME B16.34

2) Threaded End: NPT.BSPT.RC.G

3) Size: 1/2"-2"

4) Pressure: 200WOG

5) Temperature: 180℃

6) Materials: Carbon steel/Stainless steel/Brass

7) Suitable Medium: Water,Oil,Gas,Steam,

Q1: What are the size of threaded globe valves?

A1: The minimum diameter of the threaded globe valve can be 15mm/1/2 "and the maximum diameter can be 50mm/2"

Q2: How many connection methods are there for threaded globe valves?

A2: Threaded globe valves are available in NPT, RC, BSPT, G, etc.

Q3: How many materials are threaded globe valves available?‌

A3: The body of the threaded globe valve is: WCB, Brass, CF8, CF8M, CF3, CF3M.
