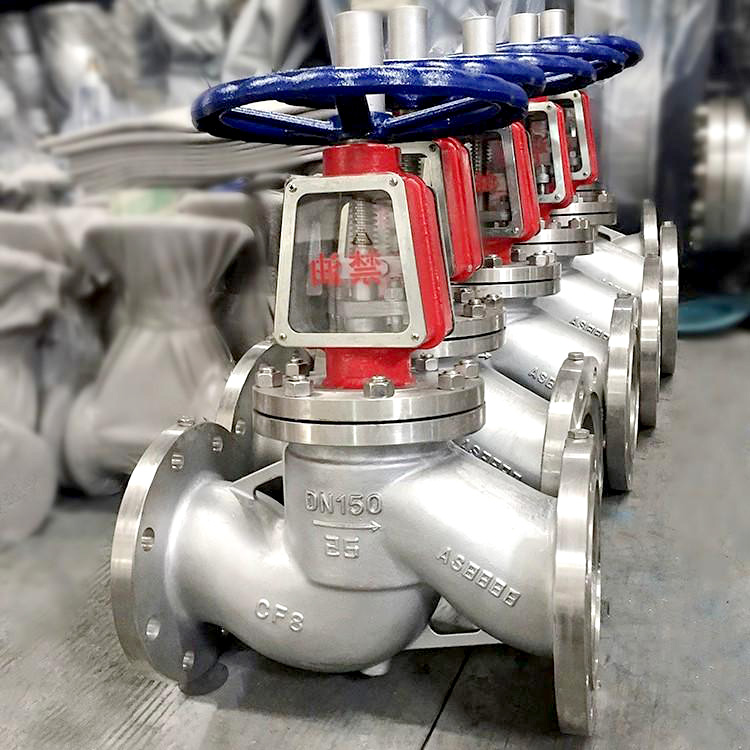

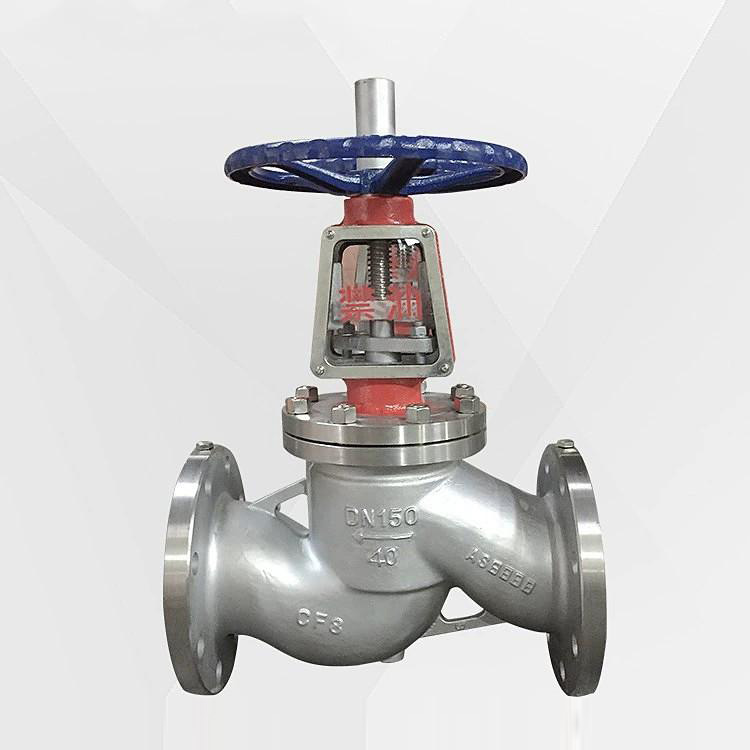

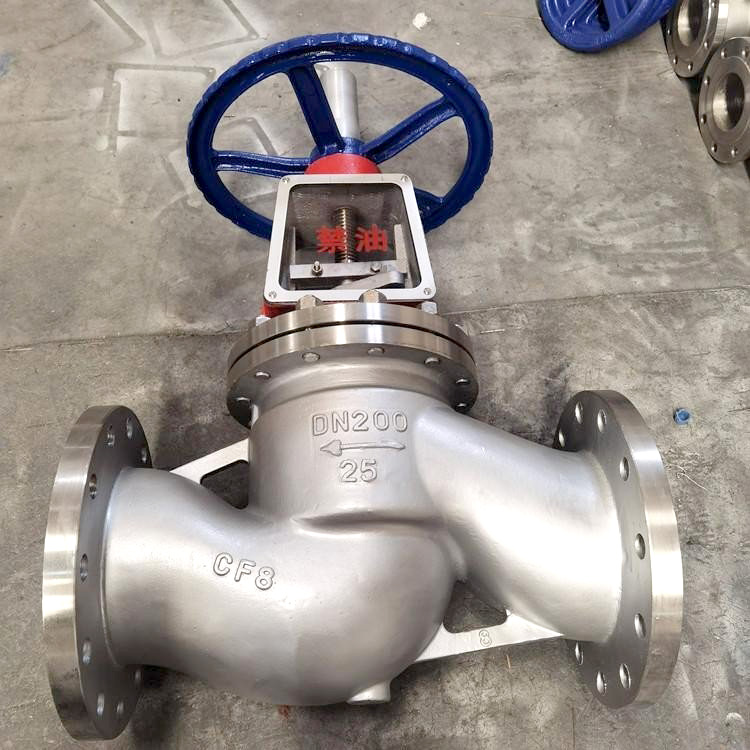

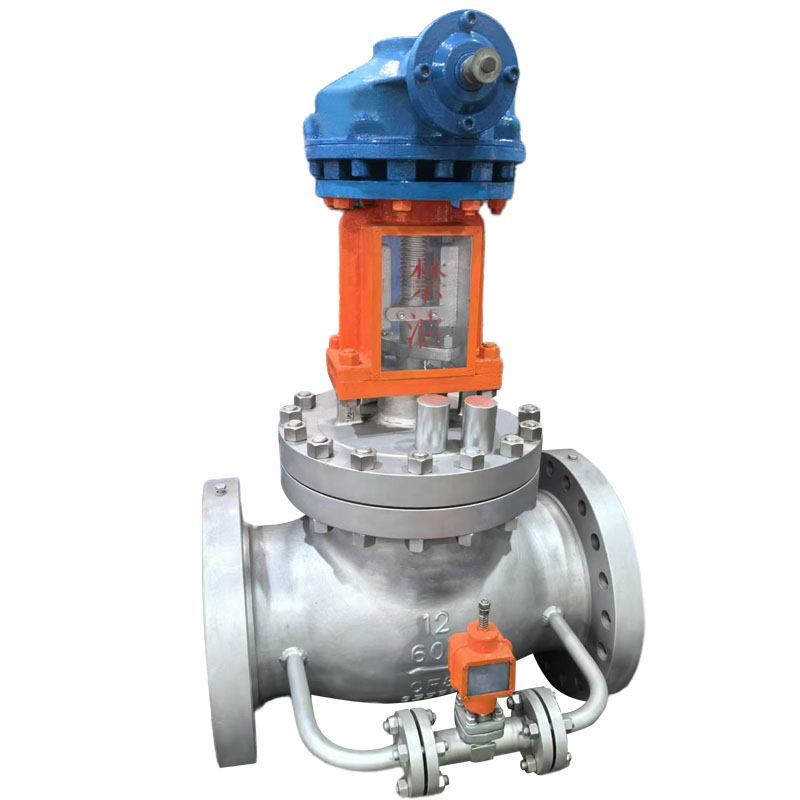

Oxygen Globe Valve

Product Introduction

‌Oxygen globe valve‌ is one specially used to control the flow of oxygen, which is widely used in industrial, medical, chemical, petroleum and metallurgical preventive fields. Its main function is to control the flow of oxygen and ensure the safety and stability of the production process. By cutting off or opening the oxygen circulation path, the oxygen globe valve precisely controls the flow rate and pressure of oxygen to oxygen leakage, thus ensuring the safety of equipment and personnel‌.

Product Advantages

1. The main material of the oxygen blobe valve is usually stainless steel, such as CF8.CF8M. Brass, etc. These materials have excellent corrosion resistance and high pressure resistance. The sealing surface is made of hard sealing material or cemented carbide STL, which has excellent brush resistance‌.

2. The oxygen globe valve adopts an inverted seal design, and the upper seal is double protected to ensure more reliable sealing performance. The bracket adopts a fully enclosed structure and is equipped with a static conductive safety device to avoid sparks caused by static electricity‌The transmission parts are lubricated with non-combustible grease and marked with obvious oil prohibition marks to ensure safety‌.

3.Oxygen globe valve has excellent sealing performance and adjustment ability to ensure accurate flow control of media and prevent leakage‌.

4. Made of high-quality stainless steel material, it has good corrosion resistance, which can resist the corrosion of the medium and prolong its service life‌.

5. Oxygen globe valves mainly include external threaded oxygen globe valves, internal threaded oxygen globe valves, straight-through oxygen globe valves, direct-flow oxygen globe valves, angle oxygen globe valves, silicon-brass oxygen globe valves, and stainless steel oxygen globe valves.

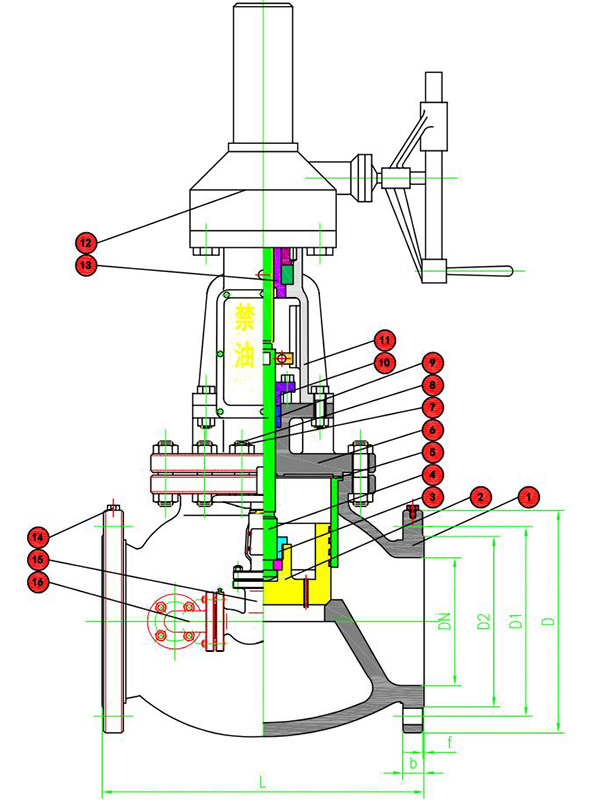

• Oxygen globe valves usually consist of valve body, valve cover, valve stem, valve clack, sealing ring and other components. When the valve is closed, the valve disc is pressed on the valve seat under the push of the valve stem, so that the medium cannot pass through; When the valve is opened, the valve stem rises and the valve clack leaves the valve seat, allowing the medium to flow through the valve‌.

• Oxygen globe valves mostly use stainless steel as the main material. This material has excellent corrosion resistance and high temperature resistance, and can adapt to the harsh environment in the oxygen pipe network. The sealing surface material, such as nylon, also has good wear resistance, ensures that the valve maintains sealing performance during long-term use‌.

• The oxygen globe valve adopts a hard seal or soft seal structure, which has good sealing performance and can effectively prevent medium leakage. This is particularly important for oxygen, a flammable and explosive medium, which can ensure the safe operation of the pipe network. The friction between the sealing surfaces is small, which reduces the possibility of wear and abrasion and further extends the service life of the valve‌.

Oxygen globe valve

1) Design Standard: GB/T10530

2) End Flange: ASME B16.5, DIN2543, GB9113

3) Size: 1/2"-12"

4) Pressure: 150lb~600lb

5) Temperature: 180℃

6) Materials: Carbon steel,Stainless steel/Brass

7) Suitable Medium: Water,Oil,Gas,Steam

Q1: Is oxygen globe valve safe and reliable?

A1:‌ The design of oxygen globe valve refers to the provisions of Oxygen Safety Regulations to ensure the safe operation of oxygen pipe network. All valve parts in contact with oxygen are strictly degreased and oil-prohibited before assembly, and the packing material is polytetrafluoroethylene to ensure safety and reliability during use.
