In the complex world of industrial fluid control, valves are indispensable components that regulate the flow and pressure of gases and liquids within a system. Among the myriad types of valves utilized in various industries, control valves and check valves stand out due to their critical roles in ensuring system efficiency and safety. Understanding the differences between these two types of valves is essential for engineers, technicians, and professionals involved in the design, operation, and maintenance of fluid systems.
Control valves are primarily used to modulate fluid flow and pressure, thereby maintaining process variables at desired levels. In contrast, check valves serve the fundamental purpose of preventing backflow, ensuring the unidirectional movement of fluids. This article delves into the fundamental differences between control valves and check valves, exploring their designs, operational principles, applications, and the critical factors that influence their selection in industrial systems.
Control valves are dynamic devices that manipulate fluid flow to maintain process variables such as flow rate, pressure, temperature, and liquid level within a desired operating range. They are integral to process control loops and are often operated automatically based on signals from controllers. The ability of control valves to adjust flow rates makes them vital for processes that require precise control over operating conditions.
A typical control valve assembly comprises a valve body, actuator, positioner, and associated accessories. The valve body contains the flow control element, such as a plug, ball, or disc, which moves in response to the actuator to regulate flow. Actuators can be pneumatic, electric, or hydraulic, translating control signals into mechanical motion. Positioners ensure the valve attains the desired degree of opening by comparing the control signal with the actual stem position.
Control valves operate based on signals received from controllers, which process data from sensors measuring process variables. For instance, if a temperature sensor detects a deviation from the setpoint, the controller sends a signal to the control valve to adjust the flow of heating or cooling media accordingly. This closed-loop system enables precise regulation of process conditions, contributing to efficiency and product quality.

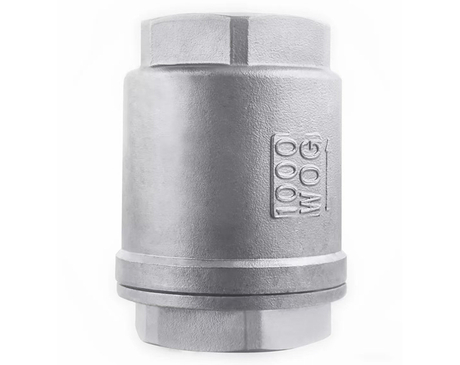

Check valves, also known as non-return valves, are passive devices that allow fluid to flow in one direction only. They automatically prevent reverse flow when the fluid in the line reverses direction, protecting equipment and processes from potential damage or inefficiency caused by backflow. Check valves are essential in systems where backflow could lead to contamination, equipment damage, or process disruption.
Check valves are relatively simple in design, consisting of a valve body with an internal mechanism that blocks reverse flow. Common types include swing check valves, lift check valves, piston check valves, and dual-plate check valves. The choice of design depends on factors such as fluid type, pressure conditions, and the need for minimizing pressure drop across the valve.
The operation of check valves relies on the flow velocity and pressure of the fluid. When fluid flows in the desired direction, it pushes the internal mechanism (e.g., a disc or ball) open, allowing passage. If the flow reverses, the change in pressure causes the mechanism to close, effectively sealing the valve and preventing backflow. This automatic response does not require external control or actuation.
While both control valves and check valves are critical in fluid systems, their functions, designs, and operational principles differ significantly. Understanding these differences is crucial for proper valve selection and system design.
The primary function of control valves is to modulate flow and pressure to achieve precise control of process variables. They can adjust the flow rate anywhere between fully open and fully closed positions based on external control signals. In contrast, check valves have a binary operation—allowing flow in one direction and preventing it in the opposite direction. They do not modulate flow but serve as safety devices to prevent backflow.
Control valves are more complex, incorporating actuators, positioners, and sometimes advanced control accessories to receive and interpret control signals. This complexity allows for precise control but also requires careful calibration and maintenance. Check valves, being simpler in design, have fewer moving parts and require less maintenance, but they offer no control over flow modulation.
Control valves need external power sources for their actuators and are part of active control systems. They respond to electronic, pneumatic, or hydraulic signals. Check valves operate automatically based on the flow conditions within the system, requiring no external power or control signals.
Both control valves and check valves are pervasive in various industries, including oil and gas, chemical processing, water treatment, and manufacturing. However, their applications differ based on their operational capabilities.
Control valves are essential in processes that require precise regulation of flow, pressure, temperature, or liquid levels. Examples include:
- **Chemical reactors**: Controlling the flow of reactants to maintain optimal reaction rates.
- **Steam systems**: Regulating steam pressure and flow in heating systems.
- **Water treatment plants**: Adjusting flow rates to optimize filtration and purification processes.
Check valves are employed to prevent backflow, which can cause contamination, equipment damage, or process inefficiencies. Common applications include:
- **Pumping systems**: Preventing backflow when pumps stop operating.
- **Pipeline systems**: Avoiding reverse flow in pipelines due to pressure changes.
- **Chemical processing**: Protecting equipment from backflow of corrosive or hazardous substances.
Selecting the appropriate valve type requires careful consideration of several factors, including system requirements, fluid characteristics, pressure and temperature conditions, and maintenance considerations.
Understanding the specific needs of the system is paramount. If precise control over flow and pressure is necessary, a control valve is appropriate. If the primary concern is preventing reverse flow, a check valve is suitable.
The nature of the fluid—its viscosity, corrosiveness, temperature, and presence of particulates—affects valve selection. Control valves may require specialized materials and designs to handle aggressive or high-temperature fluids. Check valves need to be compatible with the fluid to prevent degradation and ensure longevity.
Valves must be rated for the maximum operating pressures and temperatures of the system. Control valves often handle significant pressure drops, and their materials and designs must withstand these conditions. Check valves must reliably operate under the expected pressure differentials and temperatures without failure.
Both types of valves require maintenance to ensure proper functioning, but the extent and nature of maintenance differ.
Due to their complexity, control valves require regular calibration and inspection. Actuators, positioners, and control accessories need periodic checks to maintain accuracy. Issues such as wear of the valve seat, stem leakage, or actuator malfunction can significantly impact process control and must be addressed promptly.
Check valves, being simpler devices, typically require less maintenance. However, they can be prone to issues such as debris accumulation, which can prevent proper sealing and lead to leakage. Regular inspection and cleaning are essential, especially in systems where fluid cleanliness cannot be guaranteed.
Advancements in materials science and engineering have led to the development of valves that can operate under extreme conditions, handle aggressive fluids, and offer improved longevity. Smart valves with integrated sensors and diagnostics are transforming process control, enabling predictive maintenance and enhanced system efficiency.
Modern control valves can now incorporate digital positioners and actuators with communication capabilities. These smart valves provide real-time feedback on valve position, performance, and health, allowing for advanced process optimization and maintenance strategies.
Innovations in check valve design aim to reduce pressure drops and eliminate water hammer effects caused by rapid valve closure. Non-slam check valves and silent check valves are examples of improved designs that enhance system performance and longevity.
Analyzing real-world applications highlights the importance of selecting the appropriate valve type for specific scenarios.
In a petroleum refinery, control valves play a critical role in regulating the flow of crude oil and process fluids through various stages of distillation and chemical processing. Precise control ensures optimal reaction conditions, product quality, and safety. A malfunctioning control valve could lead to off-spec products or hazardous situations.
Municipal water supply systems utilize steam-system check valves to prevent backflow, which could contaminate the potable water supply with wastewater or industrial fluids. By ensuring unidirectional flow, check valves protect public health and comply with regulatory standards.
Control valves and check valves are essential components in fluid control systems, each serving distinct and critical functions. Control valves provide the means to precisely regulate process variables, enabling efficient and safe operation of complex industrial processes. Check valves offer protection against backflow, preserving system integrity and preventing potential damage or contamination.
A thorough understanding of the differences between these valves, including their designs, operational principles, and applications, is crucial for engineers and practitioners in the industry. Selecting the appropriate valve type not only enhances system performance but also contributes to safety, reliability, and compliance with industry standards.
As technology advances, innovations in valve design and smart control systems continue to evolve, offering improved performance, efficiency, and diagnostic capabilities. Staying informed about these developments enables professionals to make informed decisions that align with best practices and technological trends in fluid control systems.
>
