In the realm of fluid control systems, check valves play a pivotal role in ensuring unidirectional flow and preventing backflow. These valves are integral components in various industries, including oil and gas, water treatment, and chemical processing. Understanding the basic types of check valves is essential for professionals seeking to optimize system performance and reliability.
Swing check valves are one of the most commonly used types of check valves. They feature a disc that swings on a hinge or trunnion, allowing fluid to flow forward while blocking reverse flow. The simplicity of their design makes them suitable for a wide range of applications. They are particularly effective in systems where the flow is constant and the change in flow direction is gradual.
One of the advantages of swing check valves is their low-pressure drop, which is a result of their full-ported design. This feature ensures that the flow path is unobstructed, minimizing energy losses. However, they are not ideal for pulsating flow conditions, as the disc's movement can cause wear over time.
Swing check valves are widely used in water and wastewater treatment plants. Their ability to handle large volumes of fluid with minimal pressure loss makes them suitable for these environments. Additionally, they are employed in pump discharge lines to prevent backflow when the pump stops operating.
In the oil and gas industry, swing check valves are utilized in pipelines transporting crude oil and natural gas. Their durability and efficiency ensure safe operations in these critical applications.
Lift check valves operate by utilizing a guided disc that moves vertically onto the seat to block reverse flow. When the forward flow pressure exceeds the cracking pressure, the disc lifts off the seat, allowing fluid to pass. Conversely, backflow causes the disc to return to the seat, preventing reverse flow.
These valves are suitable for high-pressure applications and can handle higher velocities compared to swing check valves. The design ensures a quick response to changes in flow direction, which is crucial in systems where rapid flow reversal can occur.
Lift check valves are commonly found in steam, air, gas, and high-pressure liquid systems. Their rapid response to flow changes makes them ideal for use in reciprocating compressor systems and high-pressure steam lines.
In the chemical processing industry, these valves are essential for handling corrosive fluids and maintaining system integrity. Materials used in lift check valves can be selected to withstand aggressive media, ensuring longevity and safety.
When selecting between swing and lift check valves, several factors need to be considered, including pressure drop, response time, and suitability for the specific application. Swing check valves offer the advantage of low-pressure loss but may not respond as quickly to flow reversal. On the other hand, lift check valves provide a faster response but might introduce a higher pressure drop due to their design.
According to a study published in the Journal of Fluid Control (2020), systems with frequent flow reversals benefit from the quick-closing characteristics of lift check valves. However, for systems where energy efficiency is paramount, and flow is steady, swing check valves are preferable due to their minimal impact on flow dynamics.
The materials used in the construction of check valves significantly impact their performance and suitability for different environments. Common materials include stainless steel, cast iron, bronze, and specialized alloys for corrosive applications.
The choice between a swing or lift check valve also depends on the material compatibility with the fluid media. For instance, in seawater applications, materials resistant to chloride-induced corrosion are necessary. Advanced materials like duplex stainless steel offer enhanced durability in such harsh conditions.
Recent advancements have led to the development of composite materials that provide improved performance. These materials reduce weight and enhance corrosion resistance, extending the service life of check valves in demanding applications.
Proper installation is critical to the functionality of check valves. Swing check valves require sufficient space for the disc to swing freely, which means they need to be installed in horizontal pipelines. Lift check valves can be installed in both horizontal and vertical positions, provided the flow direction supports the lifting of the disc.
Furthermore, the use of Lift check valves with threaded or flanged ends must align with system requirements to ensure a secure and leak-free connection.
Regular maintenance is essential to prevent valve failure and system downtime. Swing check valves should be inspected for wear on the hinge and disc, while lift check valves require monitoring of the disc movement and seating surface.
Common issues include noise due to water hammer, which can be mitigated by selecting the appropriate type of check valve and ensuring proper installation. Implementing a maintenance schedule enhances system reliability and longevity.

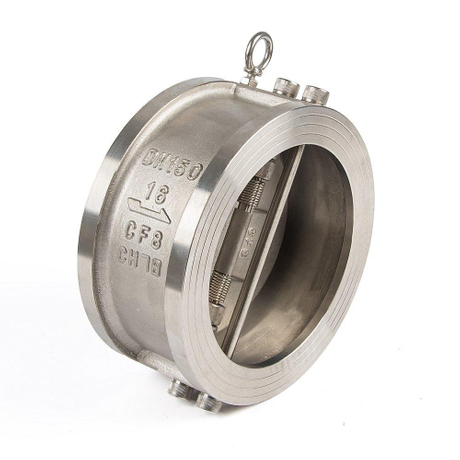

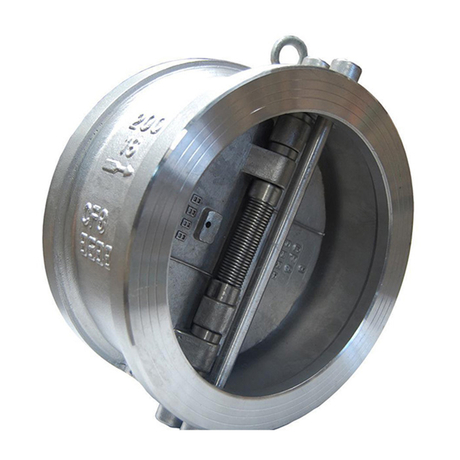

Beyond the basic types, there are advanced check valves like dual-plate and silent check valves. Dual-plate check valves feature two spring-loaded plates that close quickly to prevent backflow, reducing water hammer effects.
Silent check valves, also known as non-slam check valves, use a spring-assisted disc to close before flow reversal occurs, effectively eliminating water hammer. These valves are ideal for high-rise buildings and long pipeline systems.
The integration of smart sensors in check valves allows for real-time monitoring of valve position and flow conditions. This technology aids in predictive maintenance and enhances system control, aligning with Industry 4.0 initiatives.
Selecting the appropriate check valve involves analyzing system parameters such as flow rate, pressure, temperature, and fluid characteristics. Engineers must consider the valve's response time, pressure drop, and material compatibility.
Utilizing resources from reputable manufacturers provides access to detailed specifications and performance data, aiding in informed decision-making. Collaboration with suppliers can also result in custom solutions tailored to specific applications.
Compliance with industry standards such as API, ASME, and ISO ensures that check valves meet the required safety and performance criteria. Adherence to these standards is crucial in industries where reliability is paramount, such as petrochemical and maritime sectors.
Regular audits and certifications contribute to maintaining high-quality products and services within the valve manufacturing industry.
Environmental sustainability is increasingly important in industrial operations. Selecting check valves that minimize leakage and emissions contributes to environmental protection efforts. Materials and designs that enhance sealing capabilities reduce the risk of contaminants entering the environment.
Furthermore, energy-efficient valve designs help reduce overall system energy consumption, aligning with global initiatives to reduce carbon footprints.
Understanding the two basic types of types of check valves—swing and lift—is fundamental for designing efficient fluid control systems. Each type offers unique advantages and is suited to specific applications. By considering factors such as flow characteristics, pressure requirements, and material compatibility, professionals can select the most appropriate valve for their needs.
Advancements in valve technology and materials continue to enhance the performance and reliability of check valves. Staying informed about these developments and adhering to industry standards ensures optimal system operation and contributes to overall industrial success.
