Reverse flow can silently damage pumps and disrupt pipeline operations. It may also cause unwanted fluid movement and costly shutdowns. A Swing Check Valve prevents backflow through a simple hinged-disc mechanism. It opens during forward flow and closes when flow reverses. This automatic operation requires no external power or manual control. Its main benefits include low flow resistance and reliable backflow protection. However, performance depends on proper sizing, stable flow, and correct installation. Understanding these factors helps you avoid common valve selection mistakes. You'll learn how the valve works, where it performs best, and what limits its effectiveness. These insights can help you choose the right valve for your pipeline.
A Swing Check Valve controls fluid direction through a simple mechanical movement. Its internal disc opens under forward pressure and closes as flow conditions change. This automatic response protects pipelines without requiring electrical controls or operator intervention.
However, valve performance depends on how the disc moves during different operating conditions. Understanding these movements helps explain why some installations perform better than others.
Inside the valve body, a circular disc connects to a hinge mechanism. The hinge pin allows the disc to rotate away from its seating surface. When fluid enters from the correct direction, upstream pressure pushes against the disc.
Once the pressure force overcomes the closing forces, the disc begins opening. Fluid then passes through the available flow passage. As flow increases, the disc generally moves farther from its seat. The opening angle depends on flow rate, pressure conditions, and internal geometry.
At sufficient flow, the disc can remain in a relatively stable position. This reduces repeated movement and limits unnecessary mechanical wear. However, low flow may leave the disc partially open. It can then move repeatedly as pressure changes.
The valve body contains the flow passage and supports the internal components. The seat provides the sealing surface during closure. Together, these components determine opening behavior, resistance, and sealing performance.
When a pump slows down, forward flow through the valve begins decreasing. The pressure force holding the disc open also becomes weaker. Gravity and other closing forces gradually move the disc toward its seat. If downstream pressure becomes higher, reverse pressure pushes the disc closed. The disc then contacts the seating surface, restricting unwanted backward movement.
However, closure does not always happen before reverse flow begins. The disc needs time to travel from its open position. This delay becomes important during sudden pump shutdowns. Effective sealing also depends on seat condition and the available pressure differential. Worn components or trapped debris may prevent complete closure.
A Swing Check Valve therefore controls flow direction rather than flow rate. It cannot replace equipment designed for pressure regulation or precise flow adjustment. The important distinction is between closing automatically and closing quickly enough. Both factors influence actual system protection.
A properly selected Swing Check Valve provides several practical advantages for piping systems. Its value comes from combining automatic operation, reverse-flow protection, and relatively unrestricted forward flow. These benefits become especially important in continuously operating systems where equipment reliability affects operating costs.
Reverse flow can develop whenever operating pressure changes across connected pipelines. For example, water may move backward through an inactive pump in a shared system. This movement can create unwanted mechanical stress and operational problems.
A check valve closes to limit sustained reverse flow. It helps protect pumps, connected equipment, and downstream processes from unwanted fluid movement.
This protection offers several practical benefits:
Pump protection: It reduces reverse-flow conditions that may cause unwanted pump rotation.
System separation: It helps prevent fluid from returning through inactive pipeline branches.
Operational stability: It supports the intended flow direction during changing operating conditions.
Maintenance reduction: It can limit damage associated with repeated backflow events.
Consider a pumping station using two pumps connected to one discharge header. When one pump stops, the active pump continues supplying water. Without suitable backflow protection, water could return through the inactive pump. A correctly selected valve limits this reverse movement. However, it does not automatically prevent every pressure surge during shutdown.
Every valve creates some resistance as fluid passes through its internal passage. Excessive resistance increases the pressure required to maintain the intended flow rate. A swing design allows the disc to move away from the main passage. This creates a relatively open flow path during steady operation. Consequently, some swing designs produce lower pressure losses than more restrictive check valves. Lower pressure loss can reduce the pumping head needed to deliver water. Over extended operating periods, this may improve overall energy efficiency.
However, actual performance varies between valve designs and operating conditions. A partially open disc can create additional resistance and turbulence. Engineers should therefore consider pressure-loss data at the intended operating flow. The most useful comparison considers the entire operating range. A low-resistance valve at maximum flow may perform differently at minimum flow. Energy savings should be evaluated using actual pressure-loss and duty-cycle information. General product descriptions cannot establish a specific savings percentage.
Another important advantage is the valve's independent mechanical operation. It does not require an electric motor, pneumatic actuator, or continuous operator input. Instead, fluid forces control the disc throughout normal operating cycles. This makes the design useful where straightforward automatic protection is preferred.
The internal mechanism also contains relatively few moving components. Typical maintenance focuses on the hinge, disc, seating surface, and body sealing components. Simple construction may reduce maintenance complexity, but it does not eliminate inspection requirements. Repeated disc movement can gradually wear the hinge assembly. Debris or corrosion may also affect reliable seating.
For long-term operation, technicians should check for unusual noise and leakage. They should also inspect components during scheduled system maintenance. The main advantage is dependable mechanical simplicity under suitable conditions. Actual service life still depends on operating stability, materials, and maintenance practices.
Swing check valves are particularly useful in systems requiring steady forward flow. They also suit applications where reverse movement could damage equipment or interrupt operations. However, suitability depends more on operating conditions than industry labels alone. Two pipelines serving similar purposes may require different valve designs.
Water distribution systems must maintain the intended direction across pumps and connected branches. Reverse movement can interfere with distribution and allow unwanted circulation through inactive equipment.
A Swing Check Valve provides automatic protection at suitable points within these systems. Common applications include pump discharge piping, commercial water distribution, and industrial water circulation.
For example, a building may use multiple pumps during changing demand periods. Each inactive pump needs protection against unwanted reverse movement. A properly selected check valve can provide this function without manual intervention.

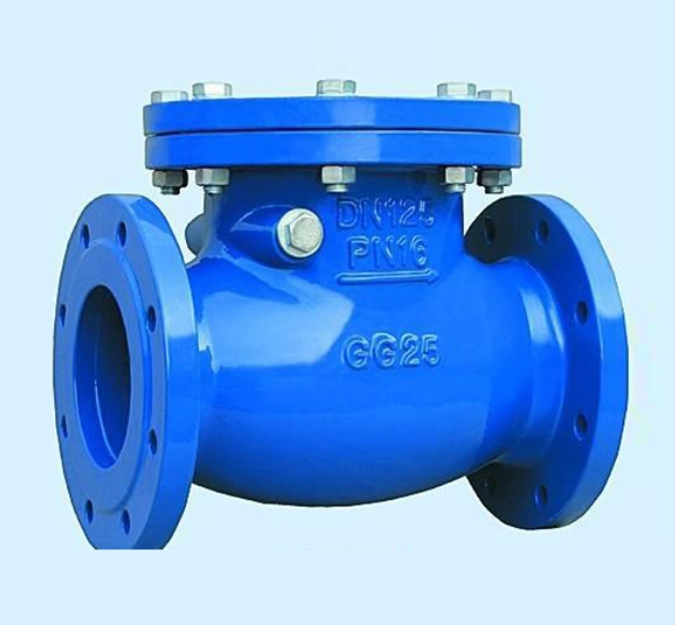

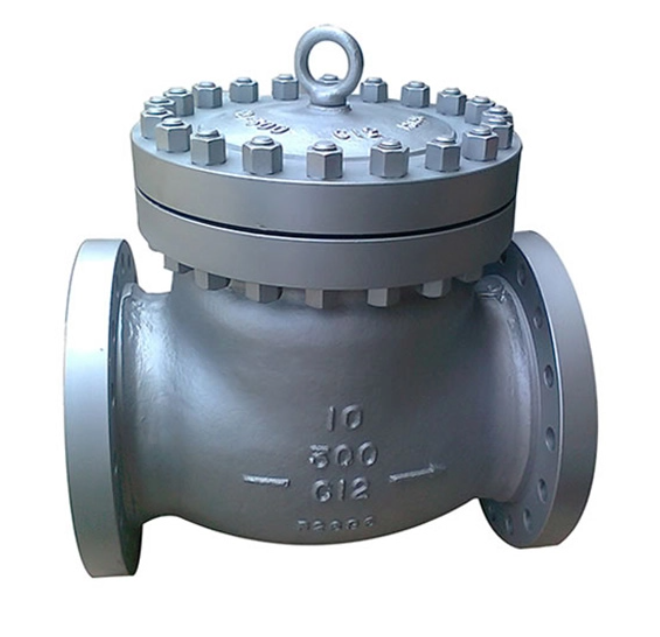

At KIZI, our Swing Check Valve range includes a threaded model for plumbing water supply. It provides a product option for projects requiring automatic reverse-flow protection. However, engineers must confirm pressure ratings, installation requirements, and sealing performance. The selected model must also match actual operating flow conditions.
Industrial facilities often depend on continuous circulation for cooling and process operations. These systems may require check valves to protect equipment during shutdowns. For example, cooling-water pipelines can experience pressure changes when circulation pumps stop. A check valve helps restrict reverse movement through inactive sections.
Industrial utility networks may also transport oil, gas, or compatible process fluids. However, fluid properties strongly influence valve selection. Higher-viscosity fluids can change disc movement and pressure-loss behavior. Abrasive particles may damage seating surfaces or accelerate internal wear. Corrosive media require suitable body and sealing materials.
Temperature also affects material performance and allowable operating pressure. Therefore, a valve suitable for ambient water may not suit hot process fluids. Before selection, engineers should evaluate fluid composition and normal operating conditions. They must also consider pressure variations, maintenance access, and system transients. The best applications combine compatible fluids, steady forward flow, and manageable shutdown conditions.
A Swing Check Valve offers useful advantages, but it is not suitable everywhere. Its freely moving disc can become unstable under certain operating conditions. Two concerns deserve particular attention: insufficient forward flow and rapid flow reversal. Both can affect valve reliability and downstream equipment protection.
A swing disc needs sufficient flow force to remain open steadily. When flow becomes too low, the disc may stay partially open. Small pressure variations can then make it move repeatedly. This movement is commonly called disc flutter. It may produce noise, vibration, and repeated contact between internal components.
Over time, continuous movement can damage the hinge and seating surfaces. It may also increase pressure loss through the partially restricted passage. Consider an oversized valve installed on a low-demand circulation line. Its nominal diameter may match the pipe, but actual flow could be insufficient. The disc might then oscillate instead of remaining stable.
This explains why matching pipe diameter alone is not always enough. Engineers should consider actual flow conditions and the manufacturer's performance information. If a valve already produces repeated mechanical noise, operating flow deserves investigation. Technicians should also inspect the disc, hinge, and nearby piping conditions.
Water hammer occurs when fluid velocity changes rapidly inside a piping system. These changes can produce pressure waves and mechanical stress. During sudden pump shutdowns, forward flow may decrease quickly. A conventional swing disc must travel toward its seat before closing completely.
If reverse velocity develops during this movement, the disc may close forcefully. The resulting impact can produce noise, vibration, and potentially damaging pressure transients.
Risk becomes more important in systems experiencing:
Frequent pump cycling: Repeated shutdowns create recurring closure events.
Rapid pump trips: Sudden power loss may produce fast flow changes.
Pulsating flow: Unstable pressure can cause repeated disc movement.
Significant reverse pressure: Strong reverse flow may increase closing impact.
Spring-assisted or non-slam check valves may suit some of these conditions better. Their mechanisms can provide different closing characteristics during flow deceleration. However, no valve type guarantees complete protection against water hammer. System layout, fluid velocity, pump behavior, and pressure conditions also matter.
Engineers should evaluate transient risks before making the final selection. A pressure-transient analysis may be appropriate for critical pumping systems. A swing design performs best when its closure behavior matches system dynamics. Low forward resistance alone cannot determine overall suitability.
Selecting the correct valve requires more than identifying its nominal diameter. Engineers must consider hydraulic performance, materials, pressure limits, and installation conditions. A structured evaluation helps prevent premature wear and unexpected system problems. It also makes product comparisons more meaningful.
Start by identifying the pipeline's minimum, normal, and maximum operating flow. These values reveal whether the disc can remain stable during regular operation. Next, review the pressure loss expected across the valve. Excessive resistance may increase pumping energy requirements. Insufficient flow can also prevent the disc from opening properly.
Pressure and temperature ratings are equally important. The selected valve must withstand actual operating conditions throughout its service life. Material selection should reflect the transported fluid and surrounding environment. Carbon steel and stainless steel offer different corrosion and application characteristics.
Our Swing Check Valve products include carbon steel and stainless steel material options. The listed product specifications also cover several pressure classifications and operating conditions. We recommend confirming the selected configuration against its applicable technical documentation.
Buyers should request relevant drawings and performance information before procurement. They should also clarify leakage requirements and applicable inspection standards.
Correct installation is essential for reliable disc movement. The valve must face the intended flow direction indicated on its body. Horizontal installation is common for conventional swing designs. Some models also support vertical upward flow or inclined piping arrangements. However, approved orientations depend on the individual valve design.
Vertical downward flow is generally unsuitable for conventional gravity-assisted swing mechanisms. Buyers must verify manufacturer instructions before choosing an installation position.
Nearby elbows, pumps, and other fittings can create disturbed flow conditions. These disturbances may affect disc stability and closing behavior. Maintenance accessibility also deserves attention. Technicians need sufficient clearance for inspection, isolation, and component replacement.
Before ordering, use the following checklist to review the main requirements.
Selection Factor | What to Verify | Why It Matters |
Operating Flow | Minimum, normal, and maximum flow rates | Helps maintain stable disc movement |
Valve Size | Flow capacity and pressure loss | Supports efficient hydraulic performance |
Pressure and Temperature | Ratings under actual operating conditions | Protects pressure-boundary integrity |
Fluid Compatibility | Body, disc, and sealing materials | Reduces corrosion and premature wear |
Installation Orientation | Flow arrow and approved mounting position | Supports proper opening and closure |
Closing Behavior | Pump shutdown and reverse-flow conditions | Helps identify potential slamming risks |
Maintenance Access | Inspection space and isolation arrangements | Simplifies future servicing |
Completing these checks helps engineers avoid common selection mistakes. It also supports meaningful comparisons between different valve designs. For critical installations, operating conditions should guide the final engineering decision. Product size and pressure classification provide only part of the required information.
A Swing Check Valve provides automatic backflow protection while maintaining relatively low flow resistance. It performs best under stable flow conditions, compatible fluids, and proper installation. However, unstable flow and sudden pressure changes can increase wear and water hammer risks. Choosing the right valve requires careful evaluation of flow rates, sealing performance, and material compatibility. Suzhou Kizi Valve Co., Ltd. offers swing check valve solutions for water supply and industrial piping applications. Our products support reliable flow control and help protect connected equipment. We help customers select suitable valve configurations for their operating requirements. Proper selection improves pipeline efficiency and reliability, while severe pressure fluctuations may require alternative valve designs.
A Swing Check Valve uses a hinged disc to control fluid direction automatically. Forward pressure opens the disc, while gravity and reverse pressure help close it, preventing unwanted backflow.
A Swing Check Valve provides automatic backflow protection, relatively low pressure loss, and simple mechanical operation. These advantages help protect pipeline equipment and support efficient fluid transport under stable operating conditions.
A Swing Check Valve is commonly installed in pump discharge lines and water distribution systems. Horizontal installation is typical, while vertical upward flow requires a compatible design and manufacturer approval.
A Swing Check Valve may produce noise when unstable flow causes disc movement. Rapid flow reversal can also force sudden closure, increasing vibration, mechanical wear, and water hammer risks.
A Swing Check Valve often provides lower flow resistance during steady operation. Spring check valves may offer faster closure, making them more suitable for systems experiencing frequent shutdowns or rapid flow changes.
