A small installation mistake can cause major valve problems. Poor sealing or restricted movement may lead to costly downtime. A Wafer Butterfly Valve uses a quarter-turn disc to control flow between pipeline flanges. Its compact design suits water treatment, HVAC, and industrial piping systems. However, incorrect sizing can cause flange mismatch and disc interference. Poor installation may also lead to leakage and premature seat wear. Reliable performance requires more than a well-designed valve. Proper selection, careful installation, and regular maintenance all matter. This guide shares practical tips for preventing common problems. You'll learn how to improve installation accuracy, operating efficiency, and valve service life.
Selecting the correct valve begins with understanding your pipeline's actual operating conditions. A valve that fits physically may still fail under unsuitable pressure or temperature conditions. You also need to consider fluid properties, sealing requirements, and installation dimensions.
The most reliable approach involves checking technical compatibility before comparing purchase prices. This helps prevent unexpected replacements and expensive pipeline modifications.
Start by identifying your pipeline's nominal diameter and flange connection standard. The valve must match the required installation dimensions and pressure classification. Common connection standards include ASME, DIN, and JIS configurations.
However, matching the nominal diameter does not automatically guarantee compatibility. Different flange designs can have varying internal diameters, bolt patterns, and sealing arrangements. These differences may prevent correct installation or interfere with disc movement.
Before ordering, verify these essential specifications:
Nominal diameter: Confirm compatibility between the valve and pipeline dimensions.
Pressure rating: Check maximum operating pressure and differential pressure requirements.
Temperature range: Ensure operating temperatures remain within the approved valve limits.
Flange dimensions: Verify bolt patterns, connection standards, and face-to-face dimensions.
Disc clearance: Confirm sufficient space for unrestricted disc rotation.
Consider a cooling water pipeline operating under variable pressure. Selecting a valve based only on pipe diameter could overlook important pressure requirements. An unsuitable pressure rating may cause leakage or mechanical damage.

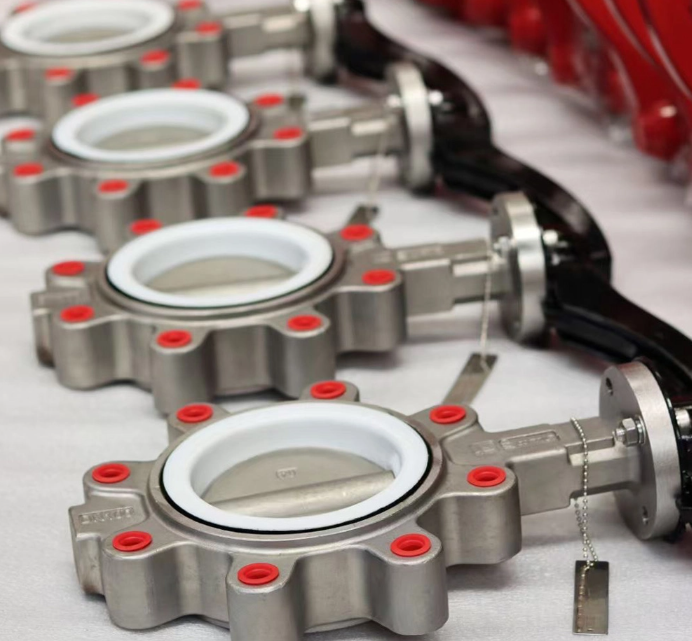

For practical selection, our KIZI Wafer Butterfly Valve range includes compact midline designs for industrial pipelines. We offer configurations supporting different flange standards and material requirements. Buyers should confirm the selected model's specifications against their actual service conditions.
Seat material directly influences sealing performance, chemical compatibility, and expected service life. Different materials respond differently to temperature, oils, chemicals, and suspended particles. EPDM seats commonly serve compatible water and HVAC applications. NBR offers useful oil resistance in suitable operating environments. PTFE provides broader chemical resistance for many aggressive fluids.
However, material suitability depends on the exact fluid composition and operating temperature. You should always check chemical compatibility before making a final selection. Disc materials also affect corrosion resistance and long-term reliability. Stainless steel discs often suit applications requiring improved corrosion resistance. Carbon steel components may serve compatible environments where corrosion risks are controlled.
For example, wastewater containing abrasive particles presents different challenges than clean cooling water. The disc surface and seat may experience accelerated wear under abrasive conditions.
Correct installation is essential for reliable sealing and smooth valve operation. Many common leakage problems begin before the pipeline enters service. Poor alignment, contaminated sealing surfaces, and excessive bolt tightening can damage internal components. A careful installation process protects the valve and reduces future maintenance requirements. It also helps technicians identify potential problems before system commissioning.
Begin by isolating and depressurizing the pipeline using approved safety procedures. Verify that trapped fluids and hazardous pressure have been safely removed. Never begin installation while the system remains energized or pressurized.
Clean both flange surfaces and remove dirt, welding residue, and loose particles. Foreign material can damage the seat or interfere with disc movement. Inspect the valve body, disc edges, and sealing surfaces for visible defects.
Check flange alignment before positioning the valve. Misaligned flanges can create uneven compression across the sealing surfaces. They may also introduce unnecessary mechanical stress into the valve body.
Another important consideration involves the valve's gasket arrangement. Many resilient-seated designs provide their own sealing surfaces against the pipeline flanges. Adding separate gaskets without approval may interfere with proper seat compression.
Disc clearance deserves equal attention during preparation. The rotating disc may extend beyond the valve body's narrow face-to-face dimension. An undersized pipe bore could prevent complete opening.
Once inspection is complete, position the valve carefully between the prepared flanges. Keep the disc slightly open according to the manufacturer's installation instructions. This helps protect the sealing edges during positioning.
Center the valve before inserting the final fasteners. Avoid forcing the valve between misaligned flanges. The surrounding piping should not impose unnecessary loads on the valve body.
Follow this practical installation sequence:
1. Position the valve: Center it between the flanges and check its orientation.
2. Install the fasteners: Insert suitable bolts without applying excessive initial force.
3. Check disc movement: Confirm that it moves freely without contacting the pipeline.
4. Tighten gradually: Use an alternating cross-pattern to distribute compression evenly.
5. Verify final torque: Apply the approved tightening procedure for the selected assembly.
6. Test operation: Open and close the valve to confirm unrestricted movement.
Uneven tightening can distort resilient seats and cause external leakage. Excessive compression may also increase operating torque and accelerate wear.
After assembly, perform the required pressure and leakage tests before normal operation. Follow the applicable project procedures and manufacturer recommendations.
Installation Stage | Essential Check | Problem Prevented |
Surface preparation | Clean flanges and inspect the seat | Sealing damage and leakage |
Valve positioning | Confirm alignment and disc clearance | Mechanical interference |
Bolt tightening | Apply the specified torque evenly | Seat distortion |
Functional inspection | Verify smooth disc rotation | Binding and excessive torque |
Commissioning | Perform pressure and leakage tests | Undetected installation faults |
Important: Complete nearby welding before final valve installation whenever possible. Excessive welding heat can damage resilient seats and other temperature-sensitive components.
Proper operating practices help maintain stable flow and reduce unnecessary component wear. Although these valves use a simple quarter-turn mechanism, operating conditions influence their performance. A valve designed for isolation may behave differently during continuous throttling. Understanding these differences helps operators prevent unstable flow and excessive mechanical stress.
Manual levers offer convenient operation for smaller valves and accessible pipeline locations. Gear operators provide additional mechanical advantage for larger sizes or higher torque requirements. Automated actuators support remote operation and frequent cycling.
Choosing the correct operating method requires more than considering valve diameter. Pressure differential, seat friction, and operating frequency also affect required torque. An undersized actuator may struggle to move the disc under demanding conditions. An oversized or improperly adjusted actuator can damage internal components. Always verify actuator torque requirements and mechanical travel limits. Correct travel settings help prevent incomplete closure and unnecessary loading.
Closing speed also deserves attention, especially in liquid pipelines. Rapid closure can create pressure transients under certain flow conditions. These pressure changes may damage valves, supports, and surrounding equipment. For systems vulnerable to water hammer, use a suitable closing sequence. Evaluate pipeline dynamics before changing actuator speed.
A butterfly valve can regulate flow by changing its disc position. However, the relationship between disc angle and flow is nonlinear. A half-open disc does not necessarily deliver half the maximum flow. Actual performance depends on pressure differential, valve geometry, and system resistance. This makes accurate throttling more complex than simple manual positioning.
Operating near highly restrictive positions may create excessive local fluid velocity. Under unsuitable conditions, this can contribute to vibration, noise, or cavitation. Continuous throttling may also increase wear around the disc and seat. These effects become more significant when differential pressure remains high.
For reliable operation, consider these practices:
Check flow characteristics: Review available flow coefficient data before selecting control positions.
Avoid unnecessary restrictions: Do not maintain highly restrictive positions without evaluating operating conditions.
Monitor unusual noise: Investigate vibration or sudden changes in sound during throttling.
Review control requirements: Use a suitable control valve when precise regulation is essential.
Even correctly installed valves can develop problems after extended service. Leakage, difficult operation, and unusual noise often indicate changing operating conditions or component deterioration. Effective troubleshooting begins by identifying the exact symptom. Replacing components without finding the underlying cause may allow problems to return.
Valve leakage generally occurs around external connections or through the closed valve passage. These two conditions require different inspection procedures. External leakage often involves flange compression or damaged sealing surfaces. Internal leakage may result from seat deterioration, trapped particles, or incomplete disc closure.
For example, sediment can accumulate around the sealing area in wastewater applications. These particles may prevent the disc from achieving full contact. Actuator travel settings can create similar symptoms. If the actuator stops too early, the disc may remain partially open.
When diagnosing leakage, follow these steps:
1. Identify whether leakage occurs externally or through the closed valve.
2. Isolate and depressurize the affected pipeline safely.
3. Inspect flange alignment and visible sealing surfaces.
4. Check for debris, corrosion, or seat damage.
5. Verify disc travel and actuator settings.
6. Repair or replace components according to manufacturer instructions.
Avoid applying excessive closing force to stop persistent leakage. Additional force may damage the seat or overload the operating mechanism.
Unexpected operating resistance often indicates mechanical interference or unsuitable loading conditions. Common causes include disc obstruction, flange distortion, and actuator misalignment. Debris accumulation can also restrict movement around the disc. This becomes particularly important in systems carrying suspended solids.
If operating torque increases suddenly, avoid forcing the actuator. First, investigate whether the problem originates inside the valve or elsewhere. Unusual noise requires a different diagnostic approach. Vibration during throttling may indicate unstable flow conditions. Sharp closing noises can suggest pressure surges in liquid pipelines.
The following table connects common symptoms to practical corrective actions.
Symptom | Possible Cause | Recommended Action |
External flange leakage | Uneven compression or damaged sealing surfaces | Inspect alignment and bolt loading |
Internal shutoff leakage | Debris, worn seat, or incomplete closure | Inspect sealing surfaces and travel settings |
High operating torque | Disc interference or excessive differential pressure | Check clearance and operating conditions |
Vibration during throttling | Unstable flow or excessive restriction | Review valve sizing and operating position |
Unusual closing noise | Rapid flow deceleration or pressure surge | Evaluate closing speed and system conditions |
Repeated failures often indicate an unresolved system problem. For example, replacing seats will not correct persistent disc interference.
Preventive maintenance helps identify wear before it causes unexpected downtime. Regular inspections also support safer operation and more predictable replacement schedules. The ideal maintenance frequency depends on actual service conditions. A clean water system may require different attention than an abrasive wastewater application.
Start by reviewing the valve's service environment and operating frequency. Frequent cycling may accelerate wear around the disc, seat, and stem. Temperature changes and chemical exposure can also affect sealing materials. These conditions should influence inspection planning.
During routine maintenance, examine the following areas:
External connections: Look for leakage, corrosion, or unusual movement.
Valve body: Check accessible surfaces for visible damage.
Operating mechanism: Monitor unusual resistance or inconsistent movement.
Actuator settings: Verify correct travel and operating response.
Sealing performance: Investigate persistent leakage or changing shutoff behavior.
Document important observations after each inspection. Maintenance records help identify gradual deterioration that individual inspections may miss. For example, steadily increasing operating torque may indicate developing mechanical resistance. Investigating this change early can prevent more serious damage. Inspection frequency should reflect risk rather than arbitrary calendar intervals. Critical systems may need additional checks based on operating demands.
Not every performance problem requires complete valve replacement. Contamination, incorrect adjustments, and damaged replaceable components may have straightforward solutions. Cleaning can restore operation when sediment or foreign material causes obstruction. However, cleaning agents must remain compatible with the valve's internal materials.
Seat replacement may be appropriate when sealing surfaces become worn or permanently deformed. Severe disc corrosion or structural damage may require more extensive repairs. Before replacing individual components, confirm that the specific valve design supports field servicing. Some valve assemblies require specialized tools or approved repair procedures.

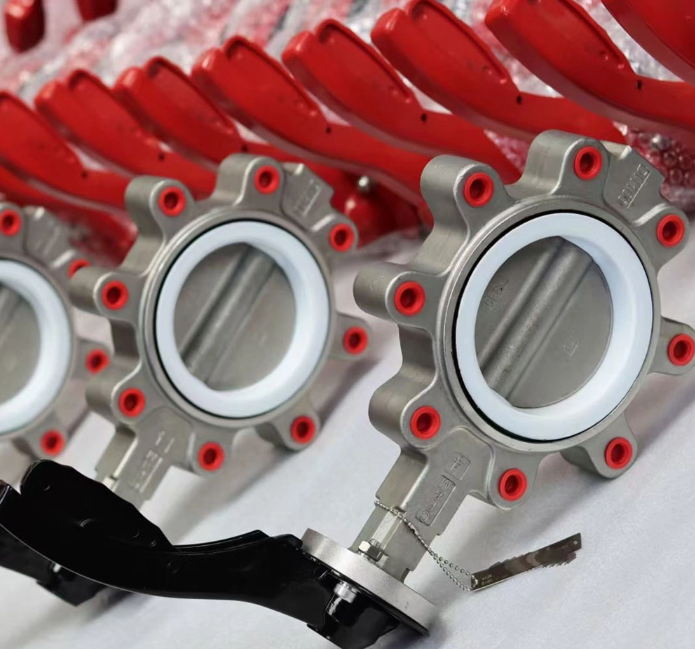

Our KIZI compact midline butterfly valve offers replaceable resilient seating options. We provide EPDM, NBR, and PTFE seat configurations for different operating environments. Appropriate replacement parts should match the valve's original specifications. Maintenance teams should also assess the cause of component failure. Replacing an incompatible seat material will not solve repeated chemical deterioration.

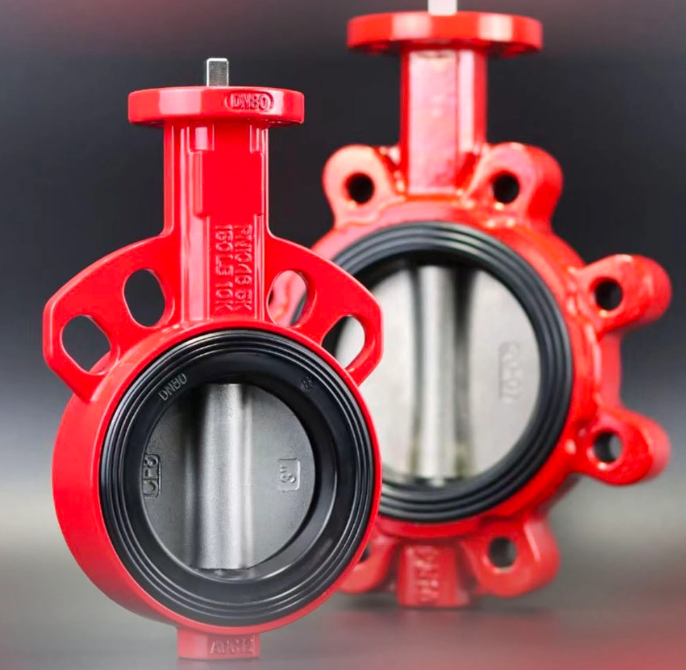

A wafer-style connection offers practical advantages in compact piping arrangements. Its lightweight body requires less installation space than many flanged alternatives. This design works well when the valve remains clamped between compatible pipeline flanges. Typical applications include building water systems, HVAC networks, and industrial distribution pipelines.
However, connection requirements may limit its suitability in certain situations. Standard wafer designs generally depend on compression between opposing flanges. They may not support dead-end service or independent flange removal. Such applications require a valve specifically rated for those conditions.
Lug-style butterfly valves offer a different mounting arrangement. Their threaded body connections can support certain maintenance configurations more conveniently. Nevertheless, dead-end capability still depends on the individual valve's approved design and pressure rating.
When comparing connection styles, consider these questions:
Will both pipeline flanges remain connected during normal operation?
Does maintenance require removing one pipeline section independently?
Is the installation space limited?
Does the system require approved dead-end isolation?
Are the connection dimensions compatible with existing equipment?
Practical Tip: Choose wafer construction when compact installation and compatible flange connections are priorities. Consider alternative designs when independent attachment or specialized isolation is necessary.
Reliable Wafer Butterfly Valve performance depends on proper selection, careful installation, and regular maintenance. Always verify flange compatibility and protect sealing components during installation. Address unusual leakage or operating resistance before problems become serious. Although compact and easy to operate, these valves have specific application limits. Consider pressure, temperature, fluid properties, and maintenance requirements before choosing a suitable configuration. Suzhou Kizi Valve Co., Ltd. offers compact wafer butterfly valves featuring versatile material options and replaceable sealing components. Our valve solutions help customers achieve reliable shutoff, efficient operation, and easier maintenance. For continuous precision control or specialized isolation applications, additional engineering evaluation remains essential.
A: A Wafer Butterfly Valve controls or isolates fluid flow in industrial pipelines. Its compact quarter-turn design suits water treatment, HVAC, and other systems requiring efficient operation and space-saving installation.
A: To install a Wafer Butterfly Valve, align the flanges, check disc clearance, and tighten bolts evenly. Follow the manufacturer's instructions to prevent seat damage, leakage, and restricted movement.
A: A Wafer Butterfly Valve may leak because of damaged seats, trapped debris, uneven flange compression, or incomplete closure. Inspect sealing surfaces and actuator settings before attempting repairs.
A: Wafer butterfly valves fit between two flanges using shared fasteners. Lug butterfly valves have independent threaded connections, making certain pipeline maintenance tasks easier and supporting approved dead-end applications.
A: Wafer Butterfly Valve prices depend on size, pressure rating, materials, and actuator type. Basic manual models generally cost less than automated configurations or valves using specialized corrosion-resistant materials.
