Basket-strainer

Product introduction

‌Basket-strainer is a small equipment used to filter solid particle impurities in liquids and gases, mainly used to protect compressors, pumps, instruments and other equipment from impurity damage. Its working principle is to intercept impurities in the fluid through the filter screen, and the clean filtrate is discharged from the filter outlet. Basket-strainer is compact, easy to install and maintain, and is widely used in petroleum, chemical, medicine, food and environmental protection industries.‌

Product Advantages

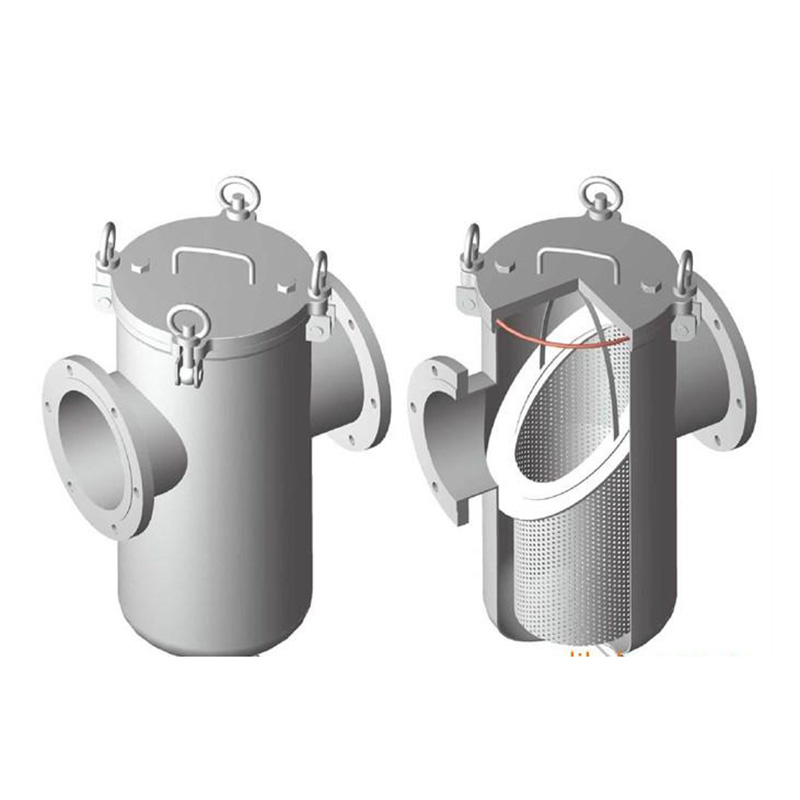

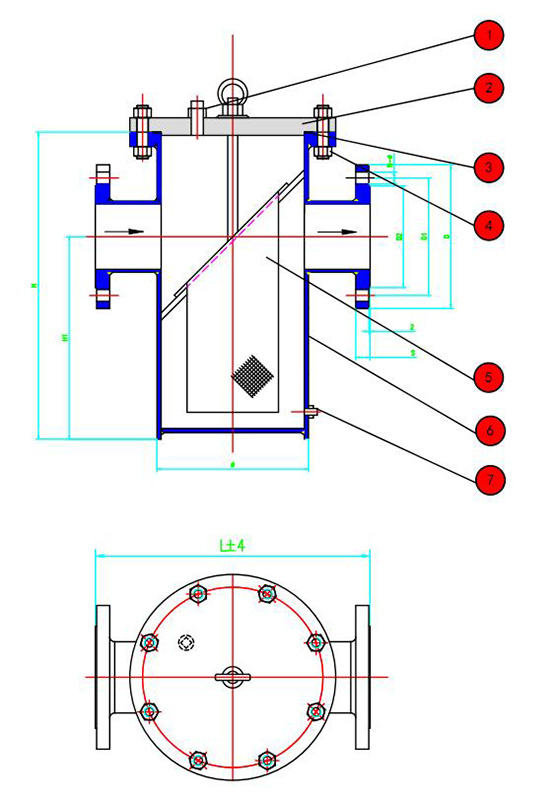

1. The basket-strainer is mainly composed of a nozzle, a cylinder, a filter basket, a flange, a flange cover and fasteners. It is cylindrical in shape, like a blue basket, hence its name. The basket-strainer is usually made of stainless steel and other materials, with many small pores on it, which can effectively filter out impurities in the fluid‌.

2. The basket-strainer has the advantages of high filtration accuracy, high strength, easy cleaning, and wide application range. Its filtration accuracy is high and it can effectively remove tiny impurities in the fluid; With high strength, the cylinder and filter basket are usually made of high-strength materials, which can withstand high pressure; Easy to clean, the filter basket can be quickly taken out for cleaning; With wide range of applications, it is suitable for filtration of various fluids, including liquids, gases, etc.

3. The basket-strainer has a flexible design and can be adjusted according to the customer's usage and working conditions. Its length, diameter, material and pressure can be customized according to customer requirements, and the positions and directions of the inlet and outlet can be changed to meet various working conditions. In addition, the basket-strainer can be equipped with optional spare parts such as pressure gauge, differential pressure gauge and drain valve.

4. Basket-strainers mainly include stainless steel basket-strainers, carbon steel basket-strainer filters, and 150LB basket-strainers.

• The basket-strainer has a simple structure and easy operation‌: It is mainly composed of pipes, main pipes, fasteners and other parts. It has a compact structure and is easy to operate. Its design makes installation, use and maintenance very convenient. When cleaning or replacing the filter screen, it can be carried out quickly only by opening the top cover or removing the flange.‌

• The basket-strainer has strong filtration capacity and wide range of applications‌with a large filtration area, which can effectively intercept larger particles of impurities, maintain a low pressure drop, and ensure stable system flow. Its filtration hole area is 2-3 times larger than that of the diameter pipe, and it has higher filtration efficiency and greater dirt-holding capacity. Basket-strainer is suitable for a variety of fluid media, including water, oil, chemical raw materials, natural gas, etc. It is widely used in domestic water, industrial water, sewage treatment, petroleum, chemical and other industries‌.

• The basket-strainer is easy to maintain and has a long service life. The filter basket of the filter is removable for easy cleaning or replacement. Its open structure makes maintenance work easier, improves work efficiency and reduces maintenance cost. With proper use and regular maintenance, basket-strainers have a relatively long service life and can bring long-term economic benefits to enterprises.‌

Basket-strainer

1) Design Standard: SH3411-2017

2) End Flange: ASME B16.5.JIS B2212.DIN 2543,GB9113

3) Size: 1/2"-20"

4) Pressure: 150lb~300lb

5) Temperature: 425℃

6) Materials: Carbon steel,Stainless steel

7) Suitable Medium: Water,Oil,Gas,Steam

Q1: What industries are basket-strainers used in?

A1: Basket-strainer is widely used in petrochemical industry, water treatment, food and beverage, pharmaceutical, etc.

Q2: Is the basket-strainer easy to maintain?

A2: Basket-strainers are relatively easy to maintain, usually only need to remove the filter basket for cleaning and then reload, which greatly simplifies the maintenance process and reduces downtime.‌

Q3: What is the filtration accuracy of the basket-strainer?‌

A3: Specifically, the filtration accuracy can range from coarse to fine, approximately between 4 mesh (4 #) and 500 (500 #) mesh, or from 50 microns to 8000 microns.
